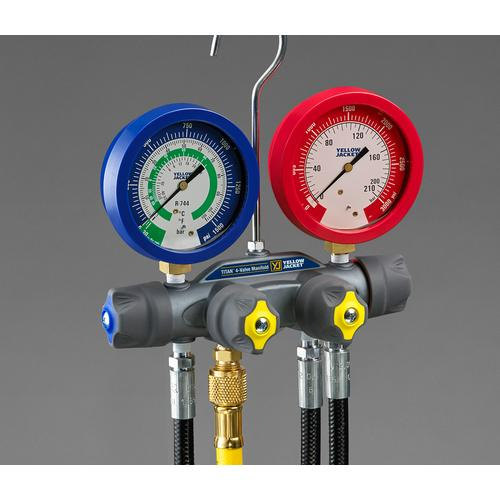

Yellow Jacket 45925 TITANTM CO2 Test and Charging Manifold

45925,TITANTM C02 Manifold with Four Hoses and Case

Manifold and hoses designed specifically for transcritical CO2 (R-744) applications.

The YELLOW JACKET® TITANTM Test and Charging Manifold for transcritical CO2 systems is constructed with a forged aluminum alloy body making it lightweight for handling ease and durability. No sightglass means added safety. It features true 45° SAE flare hoses 200 cm in length.

Features:

• Large, easy-to-read 3-1/8″ (80 mm) liquid-filled red and blue, 1% accuracy (Class 1) gauges; PSI/bar
• Proven, double “O”-ring piston for reliability and long service life.
• Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extends the life of the seats.

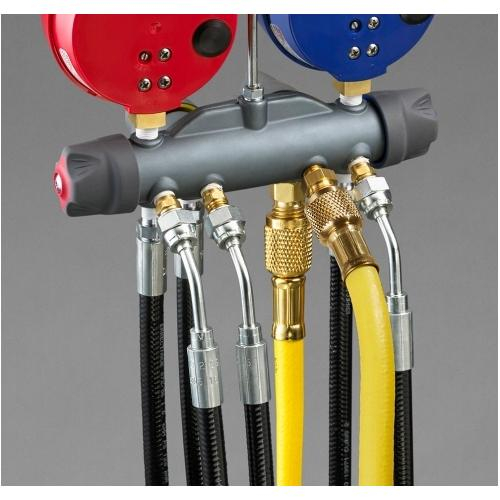

• Fourth hose to enable connection to hi/lo sides, refrigerant tank, and vacuum pump for diagnostics, evacuation and charging without switching hoses.
• 3/8″ vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings on unit are 1/4”).
• Dedicated transcritical CO2 hose 200 cm in length
• Includes plastic carrying case
