Wohler, 8387, A450 Advanced Set Flue Gas Analyzer Advanced Kit with Flue Gas Probe and Hose Assembly, 10,000 ppm
A flue gas analyzer that offers all measurement and tuning functions. A small and lightweight flue gas analyzer enclosed in an eye-catching, sturdy housing. The Wohler A 450 is a handheld device with user friendly touchscreen control, displays all measurement data on screen or connect and view on your smart devices.
8387 Includes Only:
- Plastic case MAXI Wohler A 450
- Magnetic mount
- Clamping cone
- Water stop filter, 3x
- Wohler A 450 PC software
Features:
- Measurement and tuning functions include flue gas analysis, draft measurement, burner tuning guide, and adjustment tasks
- Touchscreen control
- Intuitive menu icons and on-screen keyboard
- High-resolution 5 in. color screen displays 14 measured values at a glance
- Rugged but compact design weighs only 1.5 lbs
- All measurement data can be transmitted to a mobile device via Wireless LAN interface
- Wohler A 450 mobile app displays data as numerical values or a graph
- Measurement data can be saved in different formats and sent from mobile device via email
- App provides option to remotely control analyzer at locations with difficult access
- Effective condensate protection and multi-stage filter technology for reliable accurate readings
- Stores up to 1000 customer records and transmits data via USB, Wireless LAN, or infrared
- 10,000 ppm CO sensor (not H2 compensated) and O2 sensor are both field replaceable
- Included thermal printer provides quick printouts of measured data on site
- Rechargeable battery
- Supplied with robust and flexible hose assembly
Compact with a full range of functions
The Wohler A 450 is a sturdy measuring device that combines solid workmanship with a clear color display. All measured values are displayed clearly at a glance. The Wohler A 450 is a well rounded tool that offers flue gas analysis, draft measurement, burner tuning guide, adjustment tasks on gas and oil systems and even solid fuel fireplaces. The Wohler A 450 device is compact and lightweight by design and is guaranteed to be user friendly. The menu consists of icons similar to those known from smartphones, you simply tap an icon to open the individual menu items.
Smart functions

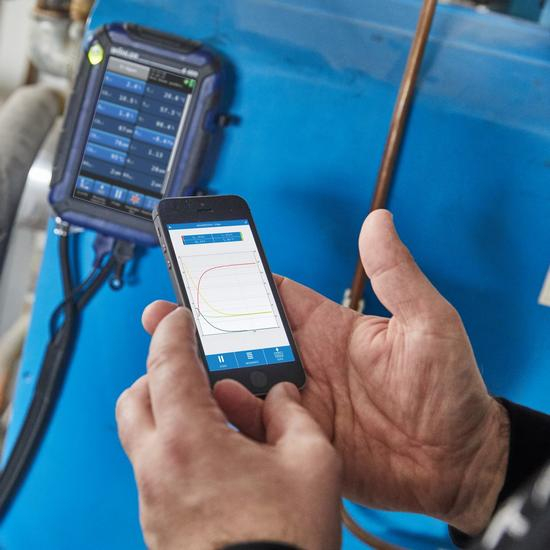

In addition to the user-friendly convenience of the touchscreen, the Wohler A 450 also offers other advantages that “smart devices” provide. You are able to transmit all measurement data to a mobile device (smart-phones, tablets by Android and iOS) via Wireless LAN. These devices can then display the measurements as numerical values or as a graph in the Wohler A 450 app. The app gives technicians the option of reading measurements already taken and also the ability to take new measurements through the app. This proves to be beneficial when measuring at points with poor accessibility. The measurement data can be saved in different formats and sent to the customer by email.
Application
- Residential flue gas analysis
- Service and maintenance tasks
- Determine flue gas loss and burner tuning
- Emmission control measurements (1st BImSchV)
- NO measurement (optional)
- Differential pressure/gas pressure measurement
Functionality
- Simple to use
- Large 5" color touchscreen: Displays up to 14 measurement readings
- Intuitive to operate via on-screen keyboard
- Graphic hotspot search
Safety /reliability
- Effective condensate protection
- Multistage filter technology incl. water stop filter
- Electronic filter monitor with illuminated condensate trap
- Analyzer and sensor diagnostics
- Field replaceable sensors – user-friendly
- Rechargeable battery operating time: more than 6 h with lithium ion power
- Hose assembly – robust and flexible
