Buy Williams JHW6CN55T12, 55T Locking Nut Cylinder 12 Stoke - Mega Depot

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Size (T):: Size (T): 55
Stroke Size (in):: Stroke Size (in): 11.81 in

Features:

Single acting cylinder with mechanical safety lock nut
Designed to support load for extended periods without hydraulic pressure
Overflow port prevents cylinders from over travel
Load return
Solid steel cylinder body
Ideal for lifting and holding loads

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

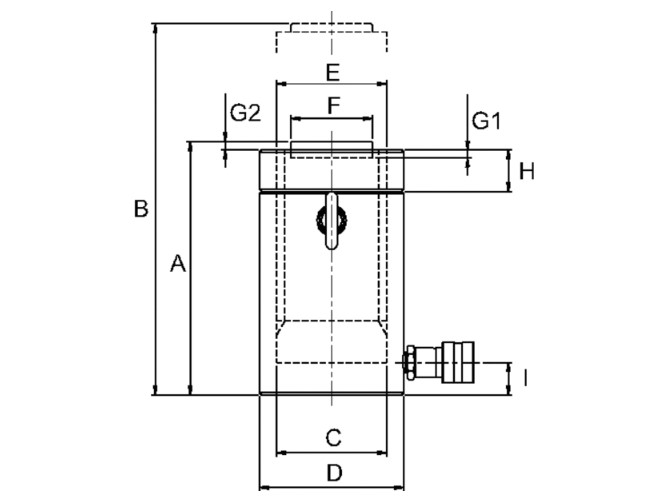

Dimensions

A - 16.3 in
B - 28.1 in
C - 3.7 in
D - 4.9 in
F - 2.8 in
G1 - 0.08 in
G2 - 0.51 in
H - 1.4 in
I - 1.1 in

Cylinder Capacity (tons)

55

Stroke (in)

11.81

Cylinder Effective Area Push (in)

10.99

Oil Capacity (in3)

129.8

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions

A - 16.3 in
B - 28.1 in
C - 3.7 in
D - 4.9 in
F - 2.8 in
G1 - 0.08 in
G2 - 0.51 in
H - 1.4 in
I - 1.1 in

Cylinder Capacity (tons)

55

Stroke (in)

11.81

Cylinder Effective Area Push (in)

10.99

Oil Capacity (in3)

129.8

Note: Please read description carefully. Do not base your order on the picture presented.
