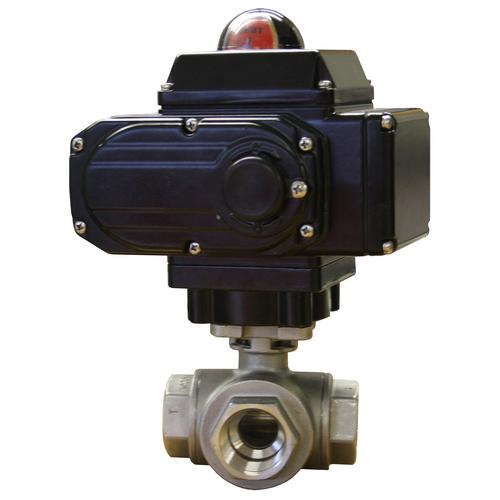

W.E. Anderson WE35-HMD02 3-Way NPT Brass Ball Valve, Modulating

Size: 2in, Options: Electric Modulating
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Size:
Size: 2in
Options:
Options: Electric Modulating

W.E. Anderson, WE35-HMD02, 3-Way NPT Brass Ball Valve, 2in Electric Modulating

The SERIES WE35 incorporates a full port 3-way brass ball valve for great flow rates with minimal pressure drop. The valve features a blowout proof stem for added safety, reinforced PTFE seats and seals for longer life, and a brass ball for better performance. Actuators are direct mounted creating a compact assembly for tight spaces.

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
ServiceCompatible liquids and gases
Body3-way
Line Sizes2
End ConnectionsFemale NPT
Pressure Limits600 psi (41 bar) WOG
Wetted MaterialsBody, ball, and stem: Brass; Seat, seal, and packing: PTFE
Temperature Limits-20 to 425°F (-30 to 220°C)
Other MaterialsO-ring: NBR; Handle, stem nut, ferrule: SS; Handle Sleeve: Vinyl; Body and cap: Nickle plated
Agency ApprovalsMeets the technical requirements of EU Directive 2011/65/EU (RoHS II)
Duty Rating85%
Enclosure RatingNEMA 4X (IP67)
Housing MaterialPowder coated aluminum
Temperature Limits-22 to 140°F (-30 to 60°C)
Electrical Connection1/2" female NPT
Modulating Input4 to 20 mA
Product Details
ServiceCompatible liquids and gases
Body3-way
Line Sizes2
End ConnectionsFemale NPT
Pressure Limits600 psi (41 bar) WOG
Wetted MaterialsBody, ball, and stem: Brass; Seat, seal, and packing: PTFE
Temperature Limits-20 to 425°F (-30 to 220°C)
Other MaterialsO-ring: NBR; Handle, stem nut, ferrule: SS; Handle Sleeve: Vinyl; Body and cap: Nickle plated
Agency ApprovalsMeets the technical requirements of EU Directive 2011/65/EU (RoHS II)
Duty Rating85%
Enclosure RatingNEMA 4X (IP67)
Housing MaterialPowder coated aluminum
Temperature Limits-22 to 140°F (-30 to 60°C)
Electrical Connection1/2" female NPT
Modulating Input4 to 20 mA
Note

Note: Please read description carefully. Do not base your order on the picture presented.
