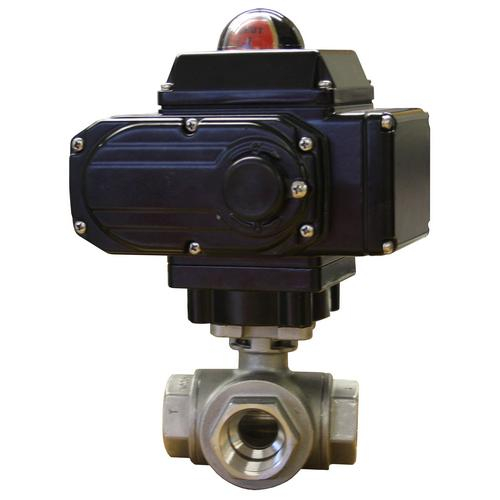

W.E. Anderson WE31-GTD03 3-Way NPT Ball Valve, 2-Position

Size: 1-1/2in, Options: Electric Two-Position
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Size:
Size: 1-1/2in
Options:
Options: Electric Two-Position

W.E. Anderson, WE31-GTD03, 3-Way NPT Ball Valve, 1.5in Electric 2-Position

The Series WE31 incorporates a full port 3-way SS ball valve for great flow rates with minimal pressure drop. The valve features a blowout-proof stem for added safety, reinforced PTFE seats and seals for longer life, and a 316 SS (ASTM CF8M) ball for better performance. Actuators are direct mounted creating a compact assembly for tight spaces. Limit switches are able to be mounted directly to the valves allowing for remote position indication.

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
ServiceCompatible liquids and gases
Body3-way
Line Sizes1-1/2
End ConnectionsFemale NPT
Pressure Limits28" Hg to 1000 psi (-0.7 to 69 bar) up to 250°F
Wetted MaterialsBody and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/PTFE; Seal, Washer, and Packing: PTFE
Temperature Limits-20 to 392°F (-29 to 200°C)
Other MaterialsO-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC
Agency ApprovalsMeets the technical requirements of EU Directive 2011/65/ EU (RoHS II)
Cycle Time (per 90°)30 s
Duty Rating85%.
Enclosure RatingNEMA 7, designed to meet hazardous locations: Class I, Group C & D; Class II, Group E, F & G; Division I & II
Housing MaterialPowder coated aluminum.
Temperature Limits-22 to 140°F (-30 to 60°C)
Electrical Connection1/2" female NPT
Modulating Input4 to 20 mA
Product Details
ServiceCompatible liquids and gases
Body3-way
Line Sizes1-1/2
End ConnectionsFemale NPT
Pressure Limits28" Hg to 1000 psi (-0.7 to 69 bar) up to 250°F
Wetted MaterialsBody and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/PTFE; Seal, Washer, and Packing: PTFE
Temperature Limits-20 to 392°F (-29 to 200°C)
Other MaterialsO-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC
Agency ApprovalsMeets the technical requirements of EU Directive 2011/65/ EU (RoHS II)
Cycle Time (per 90°)30 s
Duty Rating85%.
Enclosure RatingNEMA 7, designed to meet hazardous locations: Class I, Group C & D; Class II, Group E, F & G; Division I & II
Housing MaterialPowder coated aluminum.
Temperature Limits-22 to 140°F (-30 to 60°C)
Electrical Connection1/2" female NPT
Modulating Input4 to 20 mA
Note

Note: Please read description carefully. Do not base your order on the picture presented.
