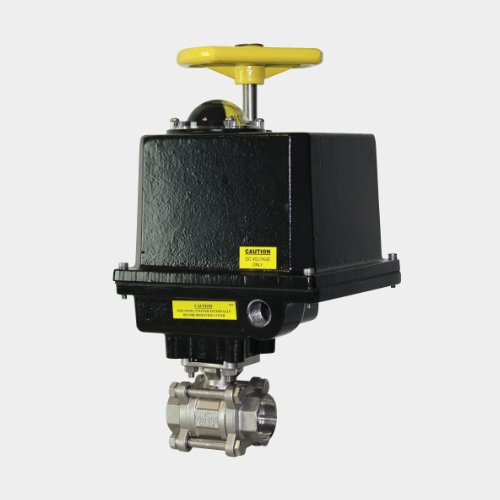

W.E. Anderson WE05-CMI01 1/2" Ball Valve, Socket Weld

Size: 1/2", Options: Exp. Proof Modulating Electric Actuator
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Size:
Size: 1/2"
Options:
Options: Exp. Proof Modulating Electric Actuator

W.E. Anderson, WE05-CMI01, 1/2" Ball Valve, Socket Weld, Exp. Modulating Electric Actuator

The Series WE03 incorporates a full port 3-piece tri-clamp SS ball valve for great flow rates with minimal pressure drop. The valve features a blowout proof stem for added safety, reinforced PTFE seats and seals for longer life, and a 316 SS (ASTM CF8M) ball for better performance

Features

  • Capable of being configured to fit any application
  • Limit switches can be mounted to manual valves for remote monitoring
  • Vented ball to reduce operating torque
  • Explosion-proof electric actuator
  • 3-piece design for each replacement of seals
  • Full port design reduces the pressure drop across the valve
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Valve
ServiceCompatible liquids and gases
Body3-piece
Line Size1/2"
End ConnectionsSocket weld
Pressure Limit28" Hg to 1000 psi (-0.7 to 69 bar) up to 250 DegF
Wetted MaterialsBody and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/ PTFE; Seal, Washer, and Packing: PTFE
Temperature Limit-20 to 392 DegF
Other MaterialsO-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC
Electric Actuator
Enclosure RatingNEMA 7
Temperature Limit-22 to 140 DegF
Electrical Connection1/2" female NPT
Modulating Input4 to 20 mA
Product Details
Valve
ServiceCompatible liquids and gases
Body3-piece
Line Size1/2"
End ConnectionsSocket weld
Pressure Limit28" Hg to 1000 psi (-0.7 to 69 bar) up to 250 DegF
Wetted MaterialsBody and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/ PTFE; Seal, Washer, and Packing: PTFE
Temperature Limit-20 to 392 DegF
Other MaterialsO-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC
Electric Actuator
Enclosure RatingNEMA 7
Temperature Limit-22 to 140 DegF
Electrical Connection1/2" female NPT
Modulating Input4 to 20 mA
Note

Note: Please read description carefully. Do not base your order on the picture presented.
