Buy VELAB VE-T300, Biological Trinocular Microscope w/ Plan Objectives

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Illumination:: Illumination: 3W Kohler LED

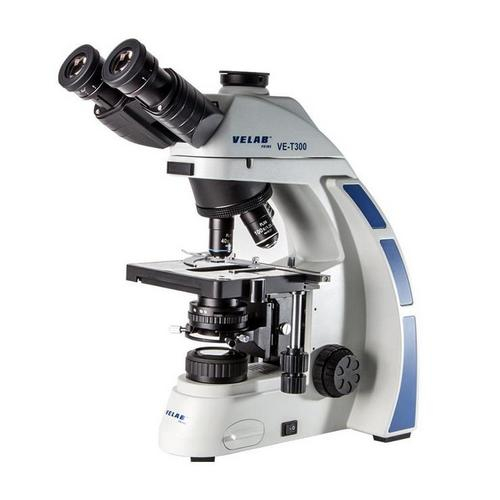

VELAB, VE-T300, Biological Trinocular Microscope with Plan Achromatic Objectives

VE-T300 Includes Only:

Dust cover.
Immersion oil.
Power cord.

The VE-T300 microscope was designed for professional and is ideal for research, higher education and routine work in clinical laboratories, thanks to its excellent quality optical components and highly efficient LED illumination. Adaptable to the needs of the user, the VE-T300 offers optional configurations for several applications. Its trinocular head allows the adaptation of digital devices (not included) for image and video documentation

Features:

Diopter adjustment in both eyepieces.
Interpupillary distance of 50 - 75 mm.
Heads inclined at 30 °.
Stative, robust and reinforced. Easy to transport.
Plates with vernier, millimeter scale and calipers.
Objectives with colored rings.
Lighting with intensity adjustment.

Applications:

Education: Upper grade levels
Research
Clinical

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Subject to the use of all the optional accessories
Eyepieces:	PL 10X/20 mm with rubber eyecups and ± 5 mm diopter adjustment in both Eyepieces.
Head:	Triocular Siedentopf type, 30 degree inclined with interpupillary distance adjustment between 50-75 mm/1.96"- 2.95".
Nosepiece:	Quadruple Nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings.

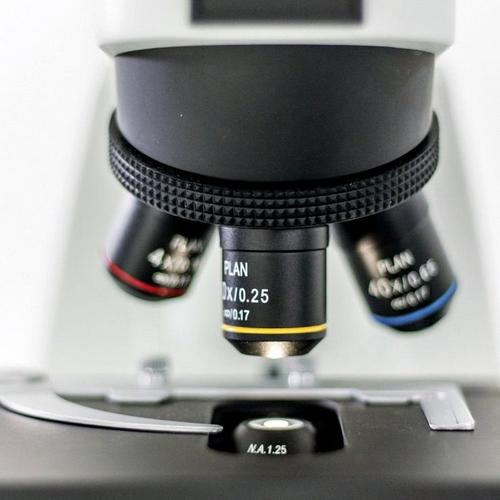

Objectives:	4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected plan achromatic optics and color ring for easy identification.
Stand:	Stative, robust and reinforced with epoxy paint finish.
Stage:	Double plate with X-Y coaxial movement, 5.90" x 5.51", vernier, millimeter scale (3.46" x 2.36"), clamp and height adjustment with stop.
Condenser:	Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for optional configurations (not included).
Diaphragm:	Iris with filter holder.
Focusing:	Coarse and fine anti-slip control knob with precision 0.001 mm, 200 graduations per micrometer turn (0.2 mm) and tension adjustment.
Illumination:	3W Kohler LED with intensity control and field Diaphragm in the lamp.
Power Supply:	110-240V, 50/60 Hz, AC Adapter.
Dimensions:	8.07" x 17.71" x 14.96"

Product Details

Subject to the use of all the optional accessories
Eyepieces:	PL 10X/20 mm with rubber eyecups and ± 5 mm diopter adjustment in both Eyepieces.
Head:	Triocular Siedentopf type, 30 degree inclined with interpupillary distance adjustment between 50-75 mm/1.96"- 2.95".
Nosepiece:	Quadruple Nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings.
Objectives:	4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected plan achromatic optics and color ring for easy identification.
Stand:	Stative, robust and reinforced with epoxy paint finish.
Stage:	Double plate with X-Y coaxial movement, 5.90" x 5.51", vernier, millimeter scale (3.46" x 2.36"), clamp and height adjustment with stop.
Condenser:	Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for optional configurations (not included).
Diaphragm:	Iris with filter holder.
Focusing:	Coarse and fine anti-slip control knob with precision 0.001 mm, 200 graduations per micrometer turn (0.2 mm) and tension adjustment.
Illumination:	3W Kohler LED with intensity control and field Diaphragm in the lamp.
Power Supply:	110-240V, 50/60 Hz, AC Adapter.
Dimensions:	8.07" x 17.71" x 14.96"

Note

Note: Please read description carefully. Do not base your order on the picture presented.
