Buy VELAB VE-F300, Biological LED Fluorescence Microscope

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

VE-F300 Includes Only:

Dust cover.
Immersion oil.
Power cord.
Software CD.
USB cable.

The VE-F300 LED fluorescence microscope was designed for professional use, thanks to its excellent quality optical components and highly efficient LED illumination. It includes Epi-LED fluorescence illumination for immediate use, extremely safe, and no need for a fluorescent light protective screen. Ideal in biochemistry, neurology, biology, research, as well as for the diagnosis of diseases.

Features:

Diopter adjustment on both eyepieces.
Interpupillary distance of 50 - 75 mm.
Gemel type Binocular Head.
Heads inclined at 30°.
Stage with vernier, millimeter scale and calipers.
Stative, robust and reinforced. Easy to transport.
Objectives with colored rings.
Illumination with intensity and diaphragm adjustment.
Condenser equipped with adapter for field in the lamp optional configurations (not included).

Applications:

Education: Upper grade levels
Research
Clinical

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Subject to the use of all the optional accessories
Eyepieces:	PL 10X/20 mm 360° rotary, with rubber eyecups and ± 5 mm diopter adjustment in both eyepieces.
Head:	Binocular Gemel type, 30° inclined with interpupillary distance adjustment between 50 – 75 mm/1.96”- 2.95” and integrated 5.0MP digital camera.
Nosepiece:	Quadruple Nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings.

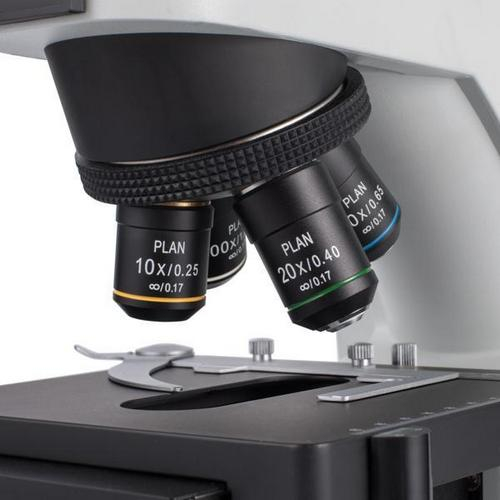

Objectives:	4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected plan achromatic optics and color ring for easy identification
Stand:	Stative, robust and reinforced with epoxy paint finish.
Stage:	Two-Layer Stage with X-Y coaxial movement, 5.90" x 5.51", vernier, millimeter scale (3.46" x 2.36"), clamp and height adjustment withs top.
Condenser:	Abbe, N.A. 1.25 with height adjustment screw. Equipped with an adapter for optional configurations (not included).
Diaphragm:	Iris with filter holder.
Focusing:	Coarse and fine anti-slip control knob with 0.001 mm precision, 200 graduations per micrometer turn (0.2 mm) and tension adjustment.
Illumination:	3W Kohler LED with intensity control and field Diaphragm in the lamp.
Power Supply:	110-240V, 50/60 Hz, AC Adapter.
Dimensions:	8.07" x 18.42" x 14.96"

Product Details

Subject to the use of all the optional accessories
Eyepieces:	PL 10X/20 mm 360° rotary, with rubber eyecups and ± 5 mm diopter adjustment in both eyepieces.
Head:	Binocular Gemel type, 30° inclined with interpupillary distance adjustment between 50 – 75 mm/1.96”- 2.95” and integrated 5.0MP digital camera.
Nosepiece:	Quadruple Nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings.
Objectives:	4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected plan achromatic optics and color ring for easy identification
Stand:	Stative, robust and reinforced with epoxy paint finish.
Stage:	Two-Layer Stage with X-Y coaxial movement, 5.90" x 5.51", vernier, millimeter scale (3.46" x 2.36"), clamp and height adjustment withs top.
Condenser:	Abbe, N.A. 1.25 with height adjustment screw. Equipped with an adapter for optional configurations (not included).
Diaphragm:	Iris with filter holder.
Focusing:	Coarse and fine anti-slip control knob with 0.001 mm precision, 200 graduations per micrometer turn (0.2 mm) and tension adjustment.
Illumination:	3W Kohler LED with intensity control and field Diaphragm in the lamp.
Power Supply:	110-240V, 50/60 Hz, AC Adapter.
Dimensions:	8.07" x 18.42" x 14.96"

Note

Note: Please read description carefully. Do not base your order on the picture presented.
