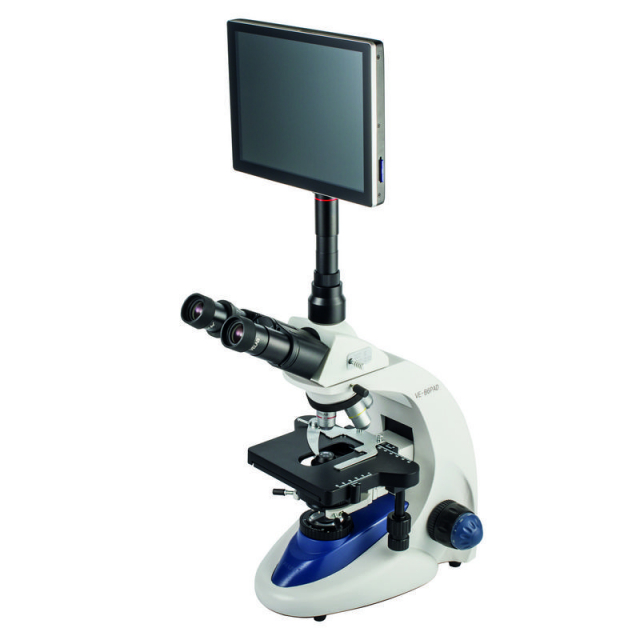

VELAB VE-B6PAD Trinocular Microscope with Integrated 9.7" Tablet

VE-B6PAD Includes Only:

• Power cord.
• Dust cover.
• Adapter AC/DC.
• Operation manual.
• Blue, green and yellow filters.
• Immersion oil.
• SD memory card.
• Adapter rings Φ 30 and Φ 30.5 mm.
• 0.5X C-Mount.

The VE-B6PAD is a professional microscope, ideal for research, higher education and routine work in clinical laboratories. Equipped with our SCOPEPAD device, which consists of a 5.0MP digital camera integrated into a completely removable 9.7” tablet with the Android operating system. The VE-B6PAD includes the IMS Camera application which allows to edit and measure captures, as well as IAS Camera for particle counting. It offers an innovative digital solution and can also be configured optionally to be compatible with a phase contrast kit and polarization set.

Features:

• Diopter adjustment in one eyepiece.
• Stative, robust, reinforced and easy to transport.
• Siedentopf type Binocular Head.
• Lighting with intensity adjustment and field
• Head inclined at 30 ° and rotatable 360° diaphragm in lamp
• Interpupillary distance of 48 ~ 75 mm.
• Stage with vernier, millimeter scale, caliper
• Objectives with colored rings. and stop with height adjustment.
• Condenser equipped with adapter for phase contrast kit or polarization set (not included)

Applications:

• Education: Upper grade levels
• Research
• Clinical
