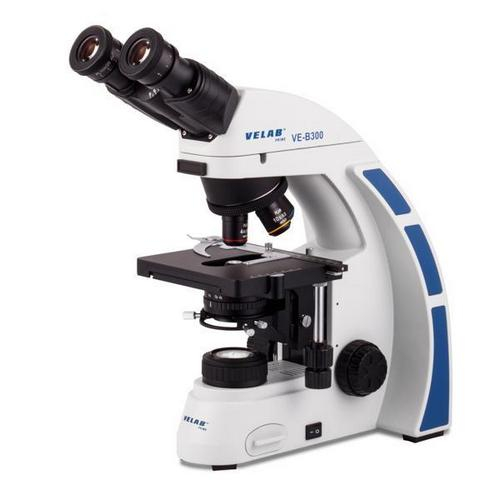

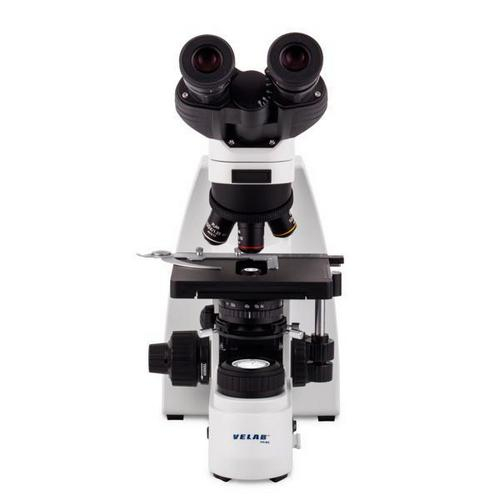

VELAB, VE-B300, Biological Binocular Microscope with Plan Achromatic Objectives

VE-B300 Includes Only:

Dust cover.
Immersion oil.
Power cord.
VE-D300 includes an USB cable and Software

The VE-B300 is a biological microscope designed for professional use. Ideal for the identification and analysis of substances and biological cultures in microbiology, biology, medicine and pathology. Its high quality, durability and modern design make the VE-B300 the ideal device applicable for professional in research, higher education and routine work in clinical laboratories. It has excellent optical quality components and long-life LED illumination. Adaptable to the needs of the user, the VE-B300 offers optional configurations for several applications.

Features:

Diopter adjustment in both eyepieces.
Interpupillary distance of 50 - 75 mm.
Heads inclined at 30 °.
Stative, robust and reinforced. Easy to transport.
Plates with vernier, millimeter scale and calipers.
Objectives with colored rings.
Lighting with intensity adjustment.

Applications:

Education: Upper grade levels
Research
Clinical

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Subject to the use of all the optional accessories

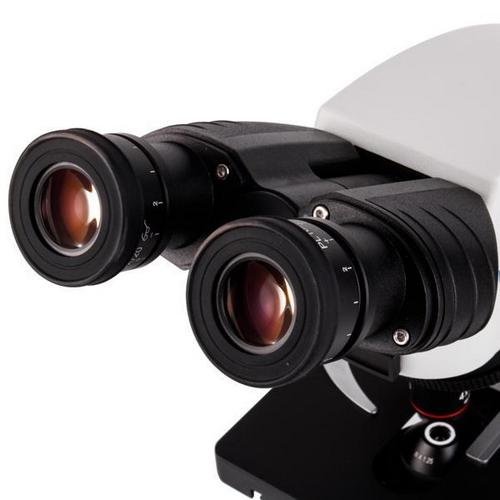

Eyepieces	PL 10X/20 mm with rubber eyecups and ± 5 mm diopter adjustment in both Eyepieces.
Head	Binocular Siedentopf type, 30 degree inclined with interpupillary distance adjustment between 50 - 75 mm / 1.96"- 2.95".
Nosepiece	Quadruple Nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings.

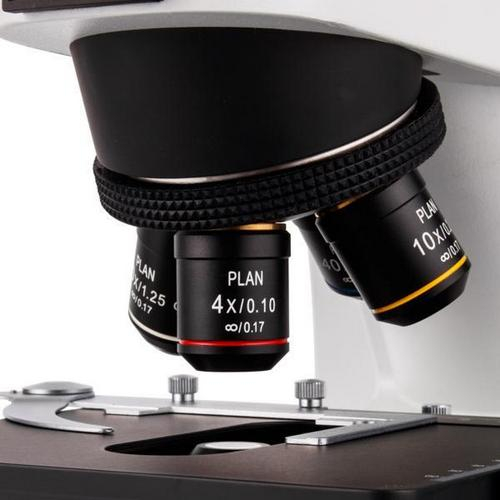

Objectives	4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected plan achromatic optics and color ring for easy identification.
Stand	Stative, robust and reinforced with epoxy paint finish.
Stage	Double plate with X-Y coaxial movement, 5.90" x 5.51", vernier, millimeter scale (3.46" x 2.36"), clamp and height adjustment with stop.

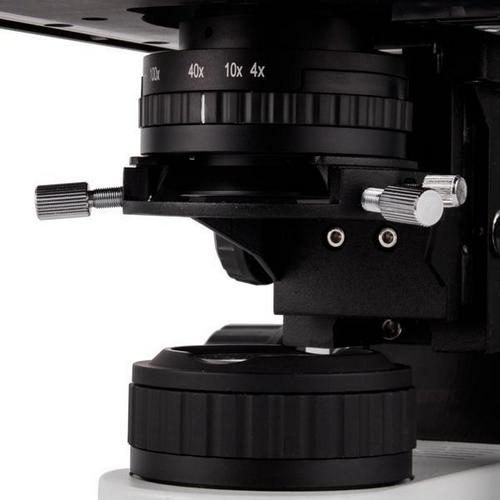

Condenser	Abbe, N.A. 1.25 with height adjustment screw. Equipped with an adapter for optional configurations (not included).
Diaphragm	Iris with filter holder.
Focusing	Coarse and fine anti-slip control knob with 0.001 mm precision, 200 graduations per micrometer turn (0.2 mm) and tension adjustment.
Illumination	3W Kohler LED with intensity control and field Diaphragm in the lamp.
Power Supply	110-240V, 50/60 Hz AC adapter.

Product Details

Subject to the use of all the optional accessories
Eyepieces	PL 10X/20 mm with rubber eyecups and ± 5 mm diopter adjustment in both Eyepieces.
Head	Binocular Siedentopf type, 30 degree inclined with interpupillary distance adjustment between 50 - 75 mm / 1.96"- 2.95".
Nosepiece	Quadruple Nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings.
Objectives	4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected plan achromatic optics and color ring for easy identification.
Stand	Stative, robust and reinforced with epoxy paint finish.
Stage	Double plate with X-Y coaxial movement, 5.90" x 5.51", vernier, millimeter scale (3.46" x 2.36"), clamp and height adjustment with stop.
Condenser	Abbe, N.A. 1.25 with height adjustment screw. Equipped with an adapter for optional configurations (not included).
Diaphragm	Iris with filter holder.
Focusing	Coarse and fine anti-slip control knob with 0.001 mm precision, 200 graduations per micrometer turn (0.2 mm) and tension adjustment.
Illumination	3W Kohler LED with intensity control and field Diaphragm in the lamp.
Power Supply	110-240V, 50/60 Hz AC adapter.
