Vee Gee Scientific 1321BRi 1300 Series Binocular Microscope

  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

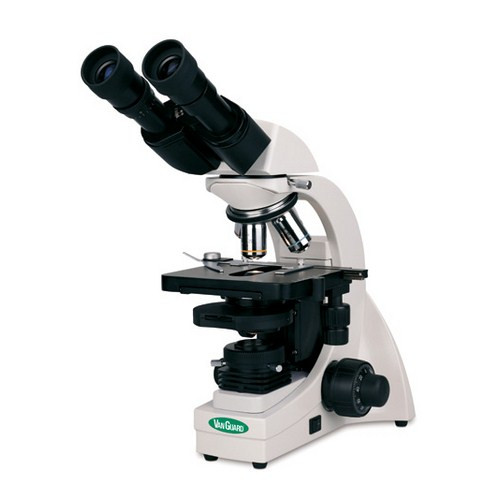

Vee Gee Scientific, 1321BRi, 1300 Series Binocular Plan Achromatic Brightfield Clinical Microscope

1300 Series Plan Achromatic Brightfield Binocular Clinical Microscope with VIOS Infinity-Corrected Optical System

Supplied with:

  • Dispersion Filter
  • Blue Filter
  • Spare Lamp
  • Fuse
  • Eyecups (2 Ea.)
  • Dust Cover
  • Operation Manual

The vivid, infinity-corrected optics of the VanGuard 1300-Series Clinical Microscopes offer exceptionally high optical flatness and visual clarity. Ultra-low focusing controls and advanced ergonomics make them an excellent match for use in medical/veterinary clinics, universities, and industrial laboratories.

Features:

  • VIOS Infinity-Corrected Optics
  • Brightfield
  • Intergrated Koehler Illumination
  • Advanced Ergonomics
  • Small Footprint
  • High-Eyepoint Eyepieces (FD 20mm) with Rubber Eyecups
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
Optical SystemVIOS Infinity-Corrected
HeadBinocular
Objective Magnification4X, 10X, 40X, 100X (Oil)
Objective TypePlan Achromatic
Infinity OpticsYes
BrightfieldYes
Phase ContrastNo
DarkfieldNo
KoehlerYes
Viewing Head30° Inclination; 360° Rotatable
Interpupillary Adjustment55-75 mm
Dioptric Adjustment-6 to +6
Eyepieces10X Super WideField; 20 mm F.D.; High-Eyepoint: Rubber Eyecups
Nosepiece4-Position; Reverse Pitch
ObjectivesPlan Achromatic; 4X (0.10 N.A.), 10X (0.25 N.A.), 40X (0.65 N.A.), 100X (1.25 N.A.); DIN Standard
StageRRectangular 140 x 130 mm Mechanical; Drop-Down, Right-Hand, Rack & Pinion X-Y Control, 75 x 50 mm Cross Travel Range; Removable Spring-Clip Slide Holder; Chemical-Resistant Finish
FocusingCoaxial, Ultra-Low Position, Coarse/Fine Controls; Tension Adjustment; Safety Auto-Stop; 20 mm Focusing Range; 0.002 mm Precision
Condenser1.25 N.A. Abbe; Iris Diaphragm; Rack & Pinion Focusing Control
Illumination20 W Variable Quartz Halogen; Centerable Field Diaphragm For Koehler; Filter Holder On Collector; Removable Collector For Simple Lamp Replacement
Base225 x 175 mm; Anti-Skid Rubber Feet
BodyErgonomic; Stain-Resistant Enamel Finish
Dimensions370 (L) x 190 (W) x 400 (H)mm
Weight6.5 kg
Voltage110 V
220 V Available On Request
Supplied WithDispersion Filter, Blue Filter, Spare Lamp & Fuse, Eyecups (2 Ea.), Dust Cover, & Operation Manual
Product Details
Optical SystemVIOS Infinity-Corrected
HeadBinocular
Objective Magnification4X, 10X, 40X, 100X (Oil)
Objective TypePlan Achromatic
Infinity OpticsYes
BrightfieldYes
Phase ContrastNo
DarkfieldNo
KoehlerYes
Viewing Head30° Inclination; 360° Rotatable
Interpupillary Adjustment55-75 mm
Dioptric Adjustment-6 to +6
Eyepieces10X Super WideField; 20 mm F.D.; High-Eyepoint: Rubber Eyecups
Nosepiece4-Position; Reverse Pitch
ObjectivesPlan Achromatic; 4X (0.10 N.A.), 10X (0.25 N.A.), 40X (0.65 N.A.), 100X (1.25 N.A.); DIN Standard
StageRRectangular 140 x 130 mm Mechanical; Drop-Down, Right-Hand, Rack & Pinion X-Y Control, 75 x 50 mm Cross Travel Range; Removable Spring-Clip Slide Holder; Chemical-Resistant Finish
FocusingCoaxial, Ultra-Low Position, Coarse/Fine Controls; Tension Adjustment; Safety Auto-Stop; 20 mm Focusing Range; 0.002 mm Precision
Condenser1.25 N.A. Abbe; Iris Diaphragm; Rack & Pinion Focusing Control
Illumination20 W Variable Quartz Halogen; Centerable Field Diaphragm For Koehler; Filter Holder On Collector; Removable Collector For Simple Lamp Replacement
Base225 x 175 mm; Anti-Skid Rubber Feet
BodyErgonomic; Stain-Resistant Enamel Finish
Dimensions370 (L) x 190 (W) x 400 (H)mm
Weight6.5 kg
Voltage110 V
220 V Available On Request
Supplied WithDispersion Filter, Blue Filter, Spare Lamp & Fuse, Eyecups (2 Ea.), Dust Cover, & Operation Manual
