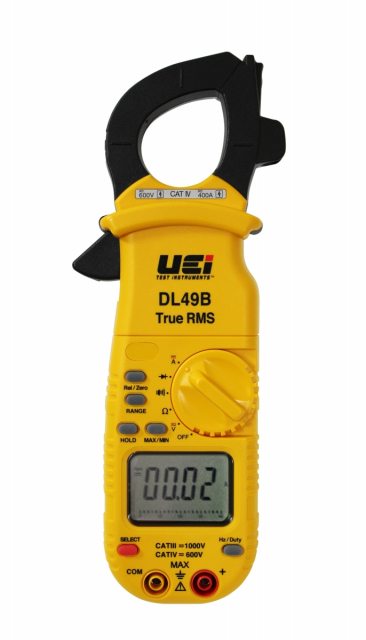

UEi DL49B Digital Clamp-On Multimeter

  • Brand UEi
  • Part # DL49B
Availability
Discontinued
Share:

Replacement

This product is discontinued, no longer available. Replacement part numbers:

UEi Digital Clamp-On Multimeter DL49B AC/DC

The DL49B is ideal for HVAC technicians, electricians and plant maintenance professionals with the ability to measure AC and DC inductive amps, making testing generators, compressor pump motors and power converters quick and easy. With its compact design and convenient zippered pouch the durable DL49B will always be ready for the job.

Includes:

  • DL49B clamp-on meter
  • 2 Test leads
  • 2 AAA batteries
  • Zippered case
  • Instruction manual

Features:

  • True RMS
  • Data hold
  • MIN / MAX
  • Auto power off
  • Test lead storage
  • 3 Year limited warranty

Functions:

  • 400A AC/DC with DC auto zero
  • 1000V DC / 750V AC
  • Ohms to 40M
  • 45Hz to 400Hz True RMS
  • Frequency & Duty Cycle
  • Diode Test
  • Continuity
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
RangeResolutionAccuracyOverload Protection
40A0.01A±(2.9%+ 15 digits)600V RMS
400A0.1A±(1.9%+ 8 digits)
DC Current Measurement
40A0.01A± (2.5% + 15 digits)600V RMS
400A0.1A± (1.5% + 8 digits)
Resistance: < 40MΩ
400Ω0.1Ω± (1.0% + 4 digits)600V RMS
4Ω1Ω
40Ω10Ω
400kΩ100Ω
4MΩ1kΩ
40MΩ10kΩ± (2.0% + 4 digits)
DC Voltage Measurement
400mV0.1mV± (0.5% + 4 digits) 11000V
4V1mV
40V10mV
400V100mV
1000V1V± (0.8% + 10 digits)
AC Voltage Measurement
400mV0.1mV± (2.0% + 5 digits)750V RMS
4V1mV
40V10mV
400V100mV
750V1V
Diode Test
Open Circuit VoltageOverload Protection
< 0.44V600V RMS
Diode Test
RangeTest CurrentOpen Circuit VoltageOverload Protection
2.0VAppx. 0.25mA< 1.6V DC600V RMS
Frequency
RangeResolutionAccuracyOverload Protection
99.99Hz0.01Hz± (0.1% + 4 digits)600V RMS
999.9Hz

0.1Hz

9.999kHz1Hz
99.99kHz10Hz
Duty Cycle
1.0 - 99.0%-± (0.2% per kHz + 0.1% + 5 digits)600V RMS
Product Details
RangeResolutionAccuracyOverload Protection
40A0.01A±(2.9%+ 15 digits)600V RMS
400A0.1A±(1.9%+ 8 digits)
DC Current Measurement
40A0.01A± (2.5% + 15 digits)600V RMS
400A0.1A± (1.5% + 8 digits)
Resistance: < 40MΩ
400Ω0.1Ω± (1.0% + 4 digits)600V RMS
4Ω1Ω
40Ω10Ω
400kΩ100Ω
4MΩ1kΩ
40MΩ10kΩ± (2.0% + 4 digits)
DC Voltage Measurement
400mV0.1mV± (0.5% + 4 digits) 11000V
4V1mV
40V10mV
400V100mV
1000V1V± (0.8% + 10 digits)
AC Voltage Measurement
400mV0.1mV± (2.0% + 5 digits)750V RMS
4V1mV
40V10mV
400V100mV
750V1V
Diode Test
Open Circuit VoltageOverload Protection
< 0.44V600V RMS
Diode Test
RangeTest CurrentOpen Circuit VoltageOverload Protection
2.0VAppx. 0.25mA< 1.6V DC600V RMS
Frequency
RangeResolutionAccuracyOverload Protection
99.99Hz0.01Hz± (0.1% + 4 digits)600V RMS
999.9Hz

0.1Hz

9.999kHz1Hz
99.99kHz10Hz
Duty Cycle
1.0 - 99.0%-± (0.2% per kHz + 0.1% + 5 digits)600V RMS
