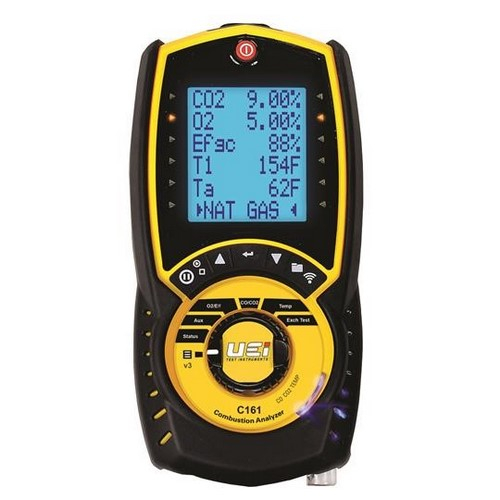

UEi C161KIT Combustion Analyzer Kit with K-Type Probe and Printer

Package Includes: Combustion Analyzer with K-Type Probe and Printer
  • Brand UEi
  • Part # C161KIT
  • Model # C161
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Package Includes:
Package Includes: Combustion Analyzer with K-Type Probe and Printer

UEi, C161KIT, Residential Combustion Analyzer Kit with K-Type Probe and Printer

C161KIT Includes Only:

  • Residential Combustion Analyzer
  • K-type Temp Probes
  • Rechargeable batteries 3 (AA)
  • USB Charging cable (WIR00067)
  • Quick Start Guide (201996)
  • Carrying Case
  • Infrared printer IRP-2
  • Printer paper roll
  • Charger AACA5
  • Water trap

Features:

  • Eligible for UEi Service+
  • Large 6-line backlit display
  • Heat Exchanger test
  • 2 levels of sensor protection
  • NOx filtered CO sensor
  • Low Flow Detection
  • High altitude compensation
  • Temperature Differential with K-Type probe inputs
  • Protective water trap
  • Print to printer
  • 8 pre-programmed fuels
  • Protective rubber boot with magnet
  • DMM-style rotary dial

Functions:

  • Measures: CO, CO2, Flue Temperature, Inlet Temperature
  • Calculates: O2, Differential Temperature, Efficiency (Net, Gross), Excess Air

The C161 Residential Combustion Analyzer is easy to use with a rugged design, multiple sensor protections, altitude compensation and now adds a heat exchanger test. Essential information for installing and maintaining furnaces and boilers all in one device.

Report incorrect product information
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.

Technical Details

Reviews
Temperature Measurement
Flue Temperature Range32° to 1112°F (0° to 600°C)
Flue Temperature Resolution1°F/C
Flue Temperature Accuracy±(0.3% rdg +3.6°F (2°C))
Inlet Temperature (Internal Sensor) Accuracy±2°F (1°C)
Inlet Temperature (External Sensor) Accuracy±1.0°F (0.5°C)
Flue Gas Measurement
Carbon Monoxide Range0 to 2000 ppm
Carbon Monoxide Resolution1 ppm
Carbon Monoxide Accuracy±3 ppm or ±5% rdg (whichever is greater)
(Optional H2 Compensated) Range2000 to 10000 ppm
(Optional H2 Compensated) Resolution1ppm
(Optional H2 Compensated) Accuracy±10% rdg
Carbon Dioxide Range0 to 20%
Carbon Dioxide Resolution0.1%
Carbon Dioxide Accuracy±0.3% volume
Calculations
Oxygen Range0 to 21%
Oxygen Resolution0.1%
Oxygen Accuracy±0.3% volume
Efficiency Range0 to 99.9%
Efficiency Resolution0.10%
Efficiency Accuracy±1.0% rdg
Excess Air Range0 to 119.9%
Excess Air Resolution0.10%
Excess Air Accuracy±0.2% rdg
Pre Programmed FuelsNatural Gas, Propane, LPG, Light Oil, Heavy Oil, Bio Oil, Pellets
Battery Life>8 hours (continuous with pump on)
Operating Conditions
Temperature32 to 113°F (0 to 45°C)
Humidity15 to 90% R.H. (non-condensing)
Power SupplyRechargeable Batteries, USB charging
CertificationThe C163 is TUV-tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BimSchV)
CE ConformityYes
RoHSEC62321-2:2013, IEC62321-1:2013, IEC62321-3-1:2013, IEC62321-5:2013, IEC62321-4:2013, IEC62321-7-2:2017, IEC62321-7-1:2015, IEC62321-6:2015
REACH CompliantYes
AHRI 1260 StandardYes
CertificationThe C161 is independently tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV)
EMCEN50270:2015
SafetyEN61010-1:2010
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Temperature Measurement
Flue Temperature Range32° to 1112°F (0° to 600°C)
Flue Temperature Resolution1°F/C
Flue Temperature Accuracy±(0.3% rdg +3.6°F (2°C))
Inlet Temperature (Internal Sensor) Accuracy±2°F (1°C)
Inlet Temperature (External Sensor) Accuracy±1.0°F (0.5°C)
Flue Gas Measurement
Carbon Monoxide Range0 to 2000 ppm
Carbon Monoxide Resolution1 ppm
Carbon Monoxide Accuracy±3 ppm or ±5% rdg (whichever is greater)
(Optional H2 Compensated) Range2000 to 10000 ppm
(Optional H2 Compensated) Resolution1ppm
(Optional H2 Compensated) Accuracy±10% rdg
Carbon Dioxide Range0 to 20%
Carbon Dioxide Resolution0.1%
Carbon Dioxide Accuracy±0.3% volume
Calculations
Oxygen Range0 to 21%
Oxygen Resolution0.1%
Oxygen Accuracy±0.3% volume
Efficiency Range0 to 99.9%
Efficiency Resolution0.10%
Efficiency Accuracy±1.0% rdg
Excess Air Range0 to 119.9%
Excess Air Resolution0.10%
Excess Air Accuracy±0.2% rdg
Pre Programmed FuelsNatural Gas, Propane, LPG, Light Oil, Heavy Oil, Bio Oil, Pellets
Battery Life>8 hours (continuous with pump on)
Operating Conditions
Temperature32 to 113°F (0 to 45°C)
Humidity15 to 90% R.H. (non-condensing)
Power SupplyRechargeable Batteries, USB charging
CertificationThe C163 is TUV-tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BimSchV)
CE ConformityYes
RoHSEC62321-2:2013, IEC62321-1:2013, IEC62321-3-1:2013, IEC62321-5:2013, IEC62321-4:2013, IEC62321-7-2:2017, IEC62321-7-1:2015, IEC62321-6:2015
REACH CompliantYes
AHRI 1260 StandardYes
CertificationThe C161 is independently tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV)
EMCEN50270:2015
SafetyEN61010-1:2010
Note

Note: Please read description carefully. Do not base your order on the picture presented.
