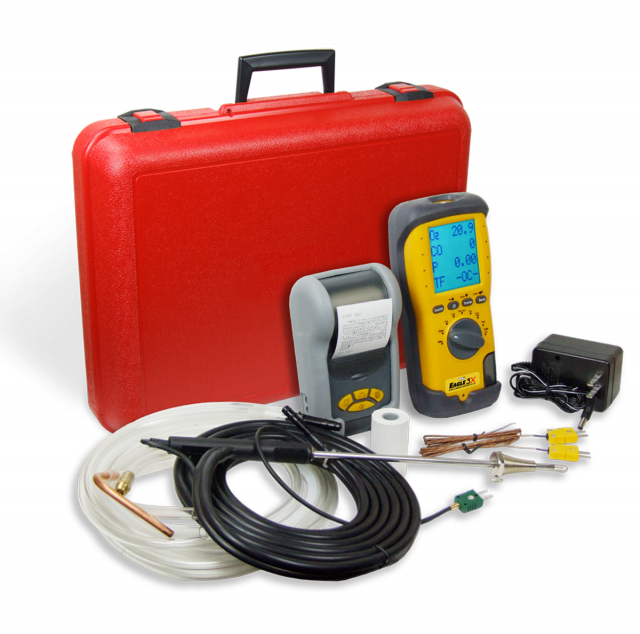

UEi EOS Xtended Life Combustion System Analyzer Kit C157KIT Eagle 3X with NO Measurement
Includes:
- C157 Analyzer
- Flue Probe
- IR Printer
- (2) K-Type Temp Probes
- (2) Static Pressure Hoses
- (1) True Draft Probe
- Gas Tap and Hose
- AC Adapter/Charger
- Hard Case
- (2) Printer paper rolls
- (2) Particle filters
- Batteries
- Quick Start Guide, & Owners Manual
The newly redesigned Eagle 2X Combustion System Analyzer eliminates the number one hassle for combustion contractors; the annual replacement and calibration of the O2 sensor. By replacing the electro chemical O2 sensor with the EOS Technology™ CO2 sensor, the EAGLE 2X now takes direct CO2 measurements and calculates the O2 level. This lowers the cost of ownership by doing away with the annual replacements of the O2 sensor and reducing calibration drifting typically found with standard electro-chemical sensors. The EOS Technology sensor is warranted for 5 years and has an unmatched industry-leading life expectancy of 10 years!
Features:
- Gas Zero
- High level CO alarm
- CO data logger
- Heat exchanger test
- Worklight
- 4 line backlit LCD display
- 179 memory positions
- User customizable auxiliary screen
- User programmable headers
- Individual report printouts
- Time and date stamp
- Rotary style selector
- Protective boot w/integral magnet
- Real time clock
- CO readings as low as 1 ppm
- Infrared printer port
- Low battery indicator
- Field replaceable sensors (USA Only)
- 5 year limited warranty (including sensor)
Measures:
- CO2 (EOS Technology)
- CO (Long Life Sensor)
- Inlet Temp/Flue Temp
- Hi-Res Differential Manometer (select 0.01”/0.001”wc)
Calculates:
- O2
- Net Temp
- Efficiency
- Excess Air
- Differential Temp (T1-T2)
- Differential Pressure (P1-P2)
Programmable Fuels:
- Natural Gas
- Propane
- Heavy Oil
- Light Oil
- Bio Fuel
- Wood
Lowest Cost of Ownership
 | NO O2 Sensor: The new Eagle X Combustion & System Analyzers eliminates the number one hassle experienced by HVAC contractors, the annual cost and down time of replacing the O2 sensor. This new technology for combustion analysis replaces the everyday electrochemical O2 sensor with the EOS Technology™ CO2 sensor, lowering the cost of ownership. |
 | EOS Technology: The new EOS CO2 sensor takes direct CO2 measurements and calculates the O2 level. This CO2 sensor has no physical contact with the gas, so there is no deterioration of the sensor over time. This exclusive EOS sensor has a 5 year limited warranty and an unmatched industry leading life expectancy of 10 years! |
 | New EOS VS Electro-Chemical Sensors: In an electro-chemical sensor, the gas measured passes into the sensor to an electrode where it produces a chemical reaction generating a current. The amount of current created is relative to the level of gas detected. This process eventually wears down the sensor causing accuracy to drift and eventually losing all current output all together. Any mathematical calculations based on these measured levels will also drift accordingly. The typical industry standard life span of these sensors is between one to two years pending use. In the Electro-Optical Sensor, or EOS Technology™, the gas flows between an Infrared transmitter and a receiver. The receiver detects the gas particles and communicates the level as a result. The advantage to this process is there are no parts to wear down and no physical cause for accuracy drifting. This benefits all calculations that are based on the measured value by maintaining a longer and higher level of accuracy. |
 | Xtended LIFE CO Sensor: The Eagle X also offers a new Xtended Life CO Sensor,which has a life expectancy of 5 years and is backed by a 5 year limited warranty. Reducing the sensor's replacement frequency helps to minimize the analyzer's cost of ownership to just the CO sensor calibration. Most manufacturers recommend annual calibration to maintain sensor specifications. |
All Year HVAC System Analyzer
Combustion:
- Verify Ambient CO
- Verity CO Air Free
- Verify Proper Combustion
- Verify Combustion Gas, Make Up O2, CO, CO2, Excess Air
- Verify Stack Loss and Efficiency
Allows for live fire / real time analysis and trouble shooting, while verifying and documenting needed adjustments, repairs or replacements.
Manometer Pressure:
- Gas pressure
- Vent pressure / draft
- Static duct pressure
- Pressure drops across coil
- Limit switches
- Pressure switches
- Zone pressures
- Building pressures
Temperature:
- Temperature rise
- Temperature differential
- Temperature drops across Coil
- Inlet temperature
- Stack temperature
- Super heat temperature side
- All "K" thermocouple probes, clamps, wraps and contact applications.
Pressure & Temperature:
These tests may be selected by setting up the auxiliary screen to read pressure and temperature. Allowing for simultaneous readings of Static pressure and temperature drops across coil or system.
Modulating & Multi Stage System Set Up & Testing:
The UEi Eagle 2X allows the technician to simultane- ously set gas pressure while doing a combustion test. Which allows for live fire viewing of combustion gases (over / under fire) while viewing and setting gas pressure to manufacture suggested specifications.
User Programmable Auxiliary Screen:
The auxiliary screen allows the tech to choose from an assortment of HVAC test parameters they want to view while performing various HVAC applications. This screen also allows a variety of test to be done simultane- ously.
Heat Exchanger Integrity:
A live fire test to verify any pre-blower and post blower combustion gas variances. Providing analysis and documentation of any unordinary fluctuations in stack gas readings.
Room CO
Test for ambient CO Health Hazards within Residential or Commercial Applications. Detect and log ambient CO caused by a combustion appliance lacking proper venting, unsafe operation or improper installation. Also detect back drafting associated with negative pressure.
Tes, Verify and Document
Saving and recalling stored data readings to view or print is easy. The Eagle X can save results and print documentation for each test, providing customers with peace of mind with tangible results showing before and after readings as facts, not opinions, on the comfort system's operation and safety.
