TREND Networks, R240-LSIV, FiberMaster Quad Light Source with LC Connectors, Inspection Port, Visual Fault Locator

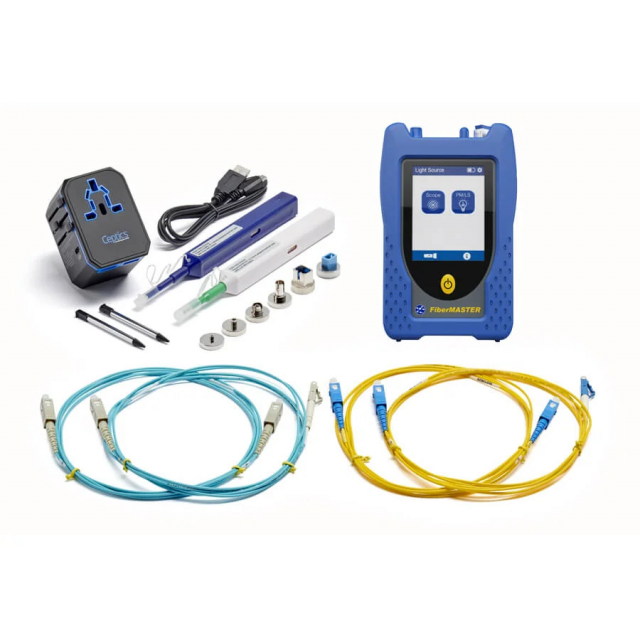

R240-LSIV Includes Only:
- Power Adapter (1)
- USB Cable (1)
- Stylus (2)
- Hang. Strap (1)
- Cleaning Pen 1.25mm (1) and 2.5mm (1)
- MM 2m Cable LC-SC (1)
- MM 2m Cable SC-SC (1)
- SM 2m Cable LC-SC (1)
- SM 2m Cable SC-SC (1)
- Quick Reference Guide (1)
Features:
- Accuracy verified by test lab, GHMT - Distance accuracy verified by German test laboratory, GHMT AG in accordance with the Telcordia GR-196 specifications.
- Industry leading Dynamic Range - Test longer fibers, PON systems and maintain accuracy on high-loss fibers
- Built to last - It's a real inconvenience when testers must be repaired, that's why we've surrounded it with a thick rubber housing. Protecting your investment and reducing downtime.
- Start testing faster - The FiberMaster is ready to start testing as soon as you are. There is no boot up time or delay. Simply turn on and start testing.
- Minimal training time - The touchscreen user interface will guide you through the setup and testing process to reduce potential mistakes as well as saving time in training field technicians.
- Protective "hard" carry case - Whilst other high cost testers provide only a semi-rigid or soft carry case we understand that you depend on your tester every day so we provide a high quality rigid case to keep it as good as new.
- Experts in fiber technology - We have over 30 years' experience in developing fiber optic testers and OTDRs at our R&D fiber center of excellence in Oriskany, New York.
- Made in the USA - We are proud to develop and manufacture our testers in the USA
Test, Troubleshoot and Certify cabling faster with the FiberMaster OTDR
The OTDRs feature both high dynamic range and small dead zones providing the precision required for installation and troubleshooting alike. The software simplifies certification of cabling to meet TIA/ISO/IEC/IEEE requirements with simple pass/fail results. Additionally custom test parameters are easily set to accommodate any application.
OTDRs can be complicated to configure and achieve accurate results. FiberMaster automates testing and steps you through the process as shown below.
For FTTx/FTTH applications the PON OTDR identifies split ratios for easy testing and troubleshooting of inactive and active networks. The 1625nm wavelength allows in-service testing of networks without interrupting existing subscribers.
FiberMaster Power Meter (PM) and Light Source (LS) Features:
- ORL measurement range to -60 dB
- 82 dB power meter dynamic range
- Compatible with the auto-centring / Pass / Fail video probe
- Auto test up to three wavelengths
- Auto wavelength switching
- Universal power meter and light source adapters
- Storage up to 40,000 tests
- Bright colour display
- Rechargeable lithium battery
- USB interface
- CertSoft free reporting software
- On-board help feature
- Pass/Fail to IEC61300-3-35 Standard
- 150x and 300x zoom level
- Automatic image positioning
- Stores images in FiberMaster testers
- Attach images to OTDR / Power Meter test report
- Wide range of connector adapters available
- One hand operation
The power meter / light source is used to measure attenuation in multimode or single-mode cabling.
The power meter's high dynamic range also allows troubleshooting of LAN and Telecom networks. Both the power meter and light source support the fiber inspection probe to capture images of the connector on each end of the cabling.
All OTDRs include a power meter and when partnered with a FiberMaster light source, the OTDR can be used to directly measure cable attenuation or to measure the output power of optical equipment for troubleshooting.
Fiber Inspection Probe with Automatic Certification to IEC61300-3-35 Standard
90% of all fiber optic cable and network issues arise from dirty and/or damaged fiber connectors which is why the Fiber Inspection Probe is an essential piece of equipment for any fiber cable installer or technician.
