R157000 Includes Only:
- SignalTEK 10G Display/Remote handsets
- Li-ion Battery (2)
- Hanging Strap (2)
- Quick Reference Guide
- Carry Case
- Power Supply (2)
- 2m Cat 6A shielded patch cables (2)
Features:
- Determine max bandwidth up to 10 Gb/s
- Verify Multi-Gig upgrades on existing cabling
- Pass/Fail to 1/2.5/5/10Gb IEEE standards
- Eliminate PoE guesswork up to 90W
- Copper and fiber interfaces up to 10Gb
- TREND AnyWare Cloud and PDF reporting
- Label printer connectivity
- Wi-Fi connectivity
- Large touchscreen
- Live remote control

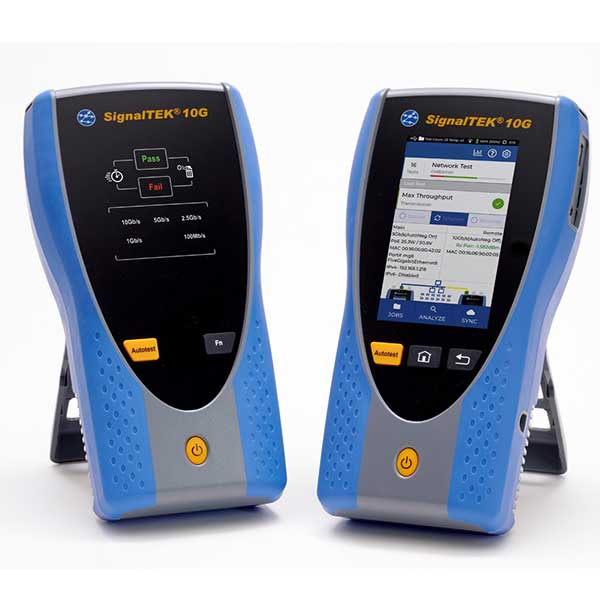

SignalTek 10G Bandwith Tester
The new SignalTEK 10G measures the maximum bandwidth of the network cabling up to 10 Gigabits per second. By simulating actual network traffic users can test, troubleshoot and document network and data cable performance up to 10 Gigabit Ethernet standards.
SignalTEK 10G has built-in Wi-Fi connectivity to connect seamlessly to the free AnyWare Cloud test management system. AnyWare Cloud offers pre-configuration to eliminate errors on-site, label printer connectivity to save time and "proof of performance" PDF reports for the clients.
Why do I need a 10G Ethernet Tester?
Problem:

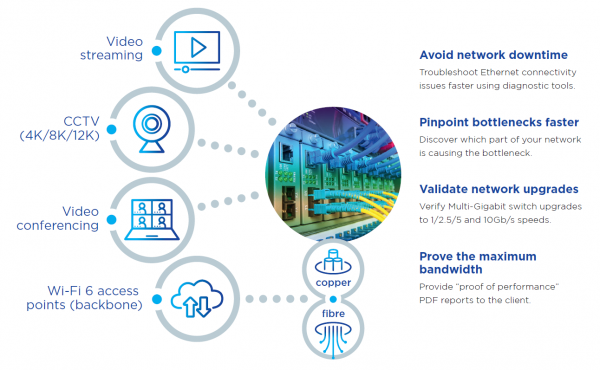

LAN networks are at risk of expensive downtime and lost productivity due to the ever-increasing demand of bandwidth hungry services such as video streaming, video conferencing, CCTV cameras and Wi-Fi access points.
Solution:
SignalTEK 10G will measure the maximum bandwidth of the network, identify bottlenecks and discover opportunities to increase bandwidth without replacing expensive data cabling.
Avoid network downtime
Troubleshoot Ethernet connectivity issues faster using diagnostic tools.
Pinpoint bottlenecks faster
Discover which part of your network is causing the bottleneck.
Validate network upgrades
Verify Multi-Gigabit switch upgrades to 1/2.5/5 and 10Gb/s speeds.
What is the Maximum Error-Free Bandwidth the Cabling / Infrastructure Can Support?
The max throughput test takes the guesswork out of existing cabling infrastructure. With one test you can easily see what hardware or applications would work on an existing link saving time and reducing the cost of replacing expensive data cabling.
As Simple as 1-2-3
Fiber Testing
Verify fiber link speed to 1G or 10G, measure optical power and data throughput.
Validate Fiber Link Speed
The fiber link speed test confirms the connection is 1G or 10G which can be affected by cable length or signal loss.
Troubleshoot Fiber Cable Issues
The Tx & Rx optical power measurement is compared to the expected power level to determine attenuation in a fiber link. This indicates if the connector is dirty or damaged which is the number one cause of failure.
Easy to understand traffic light status
The simple traffic light indicator displays Good, Marginal or Poor power level based on IEEE 802.3 1G/10G limits.

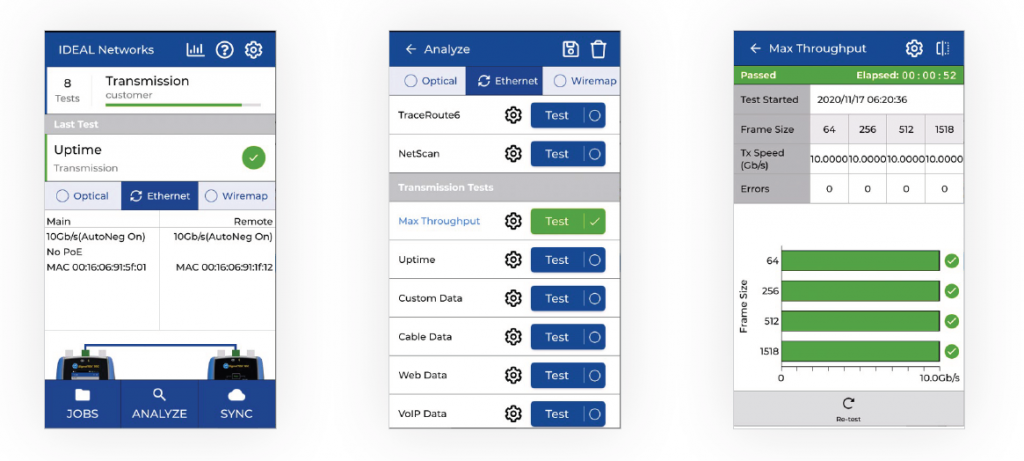

Max throughput test
The SignalTEK 10G will prove the maximum available bandwidth over the fiber link up to 10Gb/s.
Discover a faulty SFP
The SFP temperature is measured to help understand if it has become faulty.
10G/Multi-Gigabit Performance
Meets your network needs today and tomorrow.
The SignalTEK 10G will help to increase network bandwidth without replacing expensive cable infrastructure, troubleshoot PoE and Ethernet issues and prove the maximum bandwidth up to 10 Gigabits per second.
