Tractel, TU17 Wire Rope Manual Hoist with 60 ft Wire

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Rated load	1500
Wire rope	5/16" (8.3 mm)
Effort to control lever (Forvard)	79 lbs (36 kg)
Effort to control lever (Reverse)	40 lbs (18 kg)
Rope travel per stroke (Forvard)	2" (50 mm)
Rope travel per stroke (Reverse)	2.4" (60 mm)
Weight	19 lbs (8.5 kg)

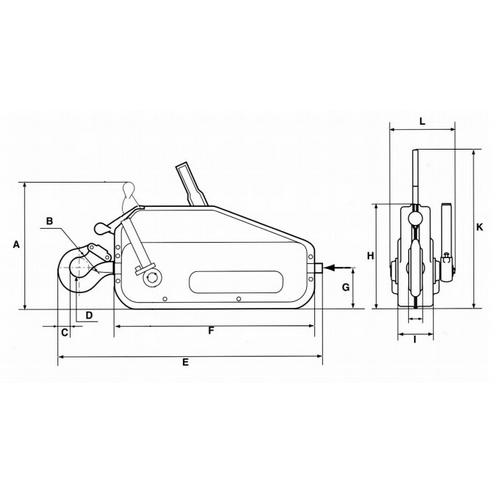

Dimensions A	10.6" (270 mm)
Dimensions B	1.3" (32 mm)
Dimensions C	1.2" (30 mm)
Dimensions D	1.6" (40 mm)
Dimensions E	21" (530 mm)
Dimensions F	15.6" (397 mm)
Dimensions G	2.8" (70 mm)
Dimensions H	7.6" (194.5 mm)
Dimensions I	2.3" (58 mm)
Dimensions J	1.1" (28 mm)
Dimensions K	11.2" (285 mm)
Dimensions L	4.3" (110 mm)
Dimensions M	18" (455 mm)
Dimensions N	28.9" (735 mm)

Rated load	1500
Wire rope	5/16" (8.3 mm)
Effort to control lever (Forvard)	79 lbs (36 kg)
Effort to control lever (Reverse)	40 lbs (18 kg)
Rope travel per stroke (Forvard)	2" (50 mm)
Rope travel per stroke (Reverse)	2.4" (60 mm)
Weight	19 lbs (8.5 kg)
Dimensions A	10.6" (270 mm)
Dimensions B	1.3" (32 mm)
Dimensions C	1.2" (30 mm)
Dimensions D	1.6" (40 mm)
Dimensions E	21" (530 mm)
Dimensions F	15.6" (397 mm)
Dimensions G	2.8" (70 mm)
Dimensions H	7.6" (194.5 mm)
Dimensions I	2.3" (58 mm)
Dimensions J	1.1" (28 mm)
Dimensions K	11.2" (285 mm)
Dimensions L	4.3" (110 mm)
Dimensions M	18" (455 mm)
Dimensions N	28.9" (735 mm)

Note: Please read description carefully. Do not base your order on the picture presented.
