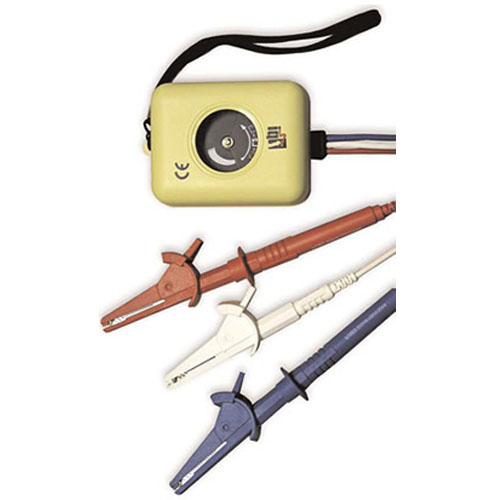

TPI Phase Rotation Meter SPD480

The TPI Model SPD480 Phase Rotation Indicator operates properly on variable frequency drives. Does not give false readings by pulsed waveforms.

Features

Easy to operate - connect one lead to each phase
Large alligator clips for easy connection to cables and bus bars
Operates properly on variable frequency drives. Does not give false readings by pulsed waveforms
Verify proper rotation on feeder extensions
Determine phase rotation on secondary potential transformers

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

110V to 480V 3 phase	110V to 480V 3 phase
Maximum Voltage Input:	480V
Frequency Response	40Hz to 70Hz
Maximum Voltage Input Time Ratings	480V 4 minutes 450V 4 minutes 220V 30 minutes 110V Continuous
Test Lead Insulation Rating	1000V
Fusing	500mA, 50kA interrupting rating
Size	1.6” x 6” x 3” (41mm x 152mm x 77mm)
Net weight	9.8 oz. (278g)

110V to 480V 3 phase	110V to 480V 3 phase
Maximum Voltage Input:	480V
Frequency Response	40Hz to 70Hz
Maximum Voltage Input Time Ratings	480V 4 minutes 450V 4 minutes 220V 30 minutes 110V Continuous
Test Lead Insulation Rating	1000V
Fusing	500mA, 50kA interrupting rating
Size	1.6” x 6” x 3” (41mm x 152mm x 77mm)
Net weight	9.8 oz. (278g)

Note: Please read description carefully. Do not base your order on the picture presented.
