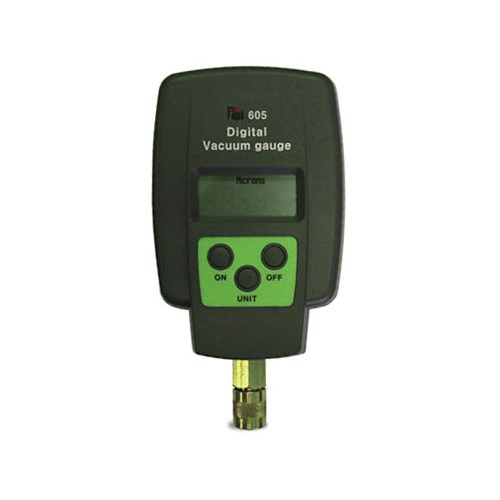

TPI Single Input Vacuum Gauge 605

Single input vacuum gauge. 12,000 to 15 micron measurement range. 300 PSI over pressure. A safer instrument for your job.

The 605 vacuum gauge measures vacuum in Microns for accurate evacuation of refrigeration systems.

Features

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Sensor Type			Thermistor
Connector Type			Standard 1/4” Male Flare Fitting
Range			12,000 - 0 Microns
Functions:			Selectable units of measure
Units of Measure			Microns, PSI, InHg, mBar, Pascals Torr, mTorr
Over Pressure			500 PSI
Operating Temperature			32° to 120°F (0° to 150°C)
Power Supply			9 Volt Alkaline
Display:			5 Digit LCD
Resolution (max):			1 micron
Accuracy:			(+/-10% of reading + 10 digits)
Battery Type:			9V alkaline
Battery Life:			200 hours (Typical)
Auto Power Off:			10 minutes when measurement is above 12000 microns
Accuracy
Measurement	Range	Resolution	Accuracy
Microns	0 - 50	1 Micron	+/- 10% of reading, + 10 digits
	151 - 400	5 Microns
	401 - 500	10 Microns
	501 - 1000	20 Microns
	1001 - 2000	50 Microns
	2001 - 12000	500 Microns
Measurement Techniques
The 605 will not start to display a reading until 12,000 microns (-29.4 inHg) is reached.
Microns			InHg below ATM
12000			29.47
10000			29.53
8000			29.69
4000			29.76
2000			29.84
1000			29.88
500			29.90
300			29.91
200			29.91
150			29.92
100			29.92
50			29.92
0			29.92
Accessories			A009A 9 Volt Alkaline Battery A100 Soft Carrying Pouch

Sensor Type			Thermistor
Connector Type			Standard 1/4” Male Flare Fitting
Range			12,000 - 0 Microns
Functions:			Selectable units of measure
Units of Measure			Microns, PSI, InHg, mBar, Pascals Torr, mTorr
Over Pressure			500 PSI
Operating Temperature			32° to 120°F (0° to 150°C)
Power Supply			9 Volt Alkaline
Display:			5 Digit LCD
Resolution (max):			1 micron
Accuracy:			(+/-10% of reading + 10 digits)
Battery Type:			9V alkaline
Battery Life:			200 hours (Typical)
Auto Power Off:			10 minutes when measurement is above 12000 microns
Accuracy
Measurement	Range	Resolution	Accuracy
Microns	0 - 50	1 Micron	+/- 10% of reading, + 10 digits
	151 - 400	5 Microns
	401 - 500	10 Microns
	501 - 1000	20 Microns
	1001 - 2000	50 Microns
	2001 - 12000	500 Microns
Measurement Techniques
The 605 will not start to display a reading until 12,000 microns (-29.4 inHg) is reached.
Microns			InHg below ATM
12000			29.47
10000			29.53
8000			29.69
4000			29.76
2000			29.84
1000			29.88
500			29.90
300			29.91
200			29.91
150			29.92
100			29.92
50			29.92
0			29.92
Accessories			A009A 9 Volt Alkaline Battery A100 Soft Carrying Pouch

Note: Please read description carefully. Do not base your order on the picture presented.
