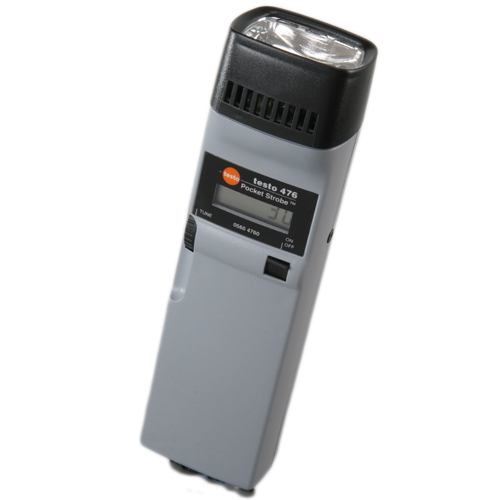

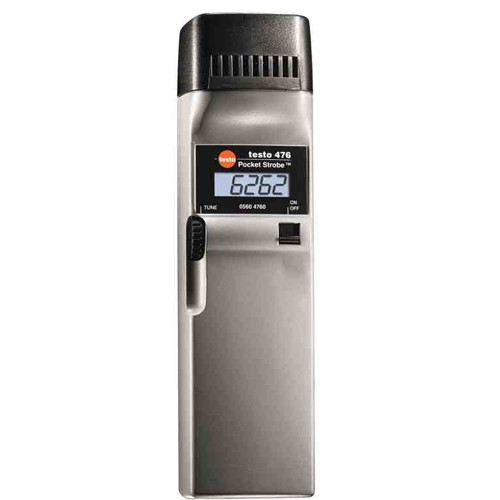

Testo 0563 4760 476 Pocket Hand-Held Stroboscope

The testo 476 Pocket Strobe(tm) hand-held stroboscope measures and checks rotation and vibration movements. It facilitates the measurement of very small objects or in hard-to-access places.

Includes

• Testo 476 hand-held stroboscope (Xenon) for rpm measurement
• Transport case
• Charger with 4 country-specific adapters
• Trigger signal connector

Features

• High adjustment accuracy and stability thanks to setting wheel with dynamic reaction

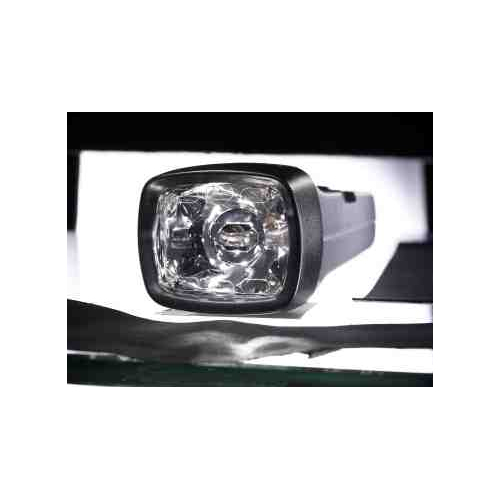

• High-intensity light thanks to energy-optimzed switching electronics and high-performance xenon flash lamp
• Memory function (last value is stored when instrument is switched off)
• High-performance battery pack for min. 2 hours continuous operation without mains connection over entire frequency range
• Trigger input for synchronizing the flash sequence (longterm inspection)
• Tripod connection on housing

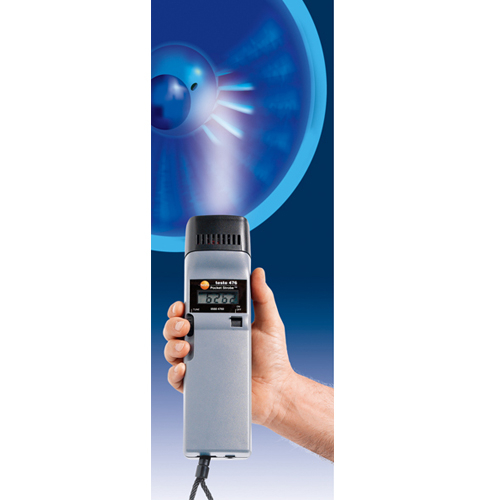

The high light-intensity hand stroboscope testo 476 is used when it is necessary to make fast-moving objects appear in slow motion. The hand stroboscope Pocket Strobe™ measures and tests rotation and vibration movements. It allows the measurement of very small objects, or in places which are not directly accessible - and it does this without interrupting the production process! The testo 476 is thus optimally suitable for rpm measurements and for the inspection of components moving at high frequencies. The energy-optimized switching electronics and the lightintensive xenon flash lamp provide a high light intensity (approx. 800 Lux). testo 476 has a memory function which stores the last measurement value when the instrument is switched off. For long-term inspections of measurement objects, a trigger input is available. The high-performance battery pack allows a continuous operating time of at least 2 hours over the entire frequency range.
