Buy Testo 0563 0407, 400 Air Flow Kit

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

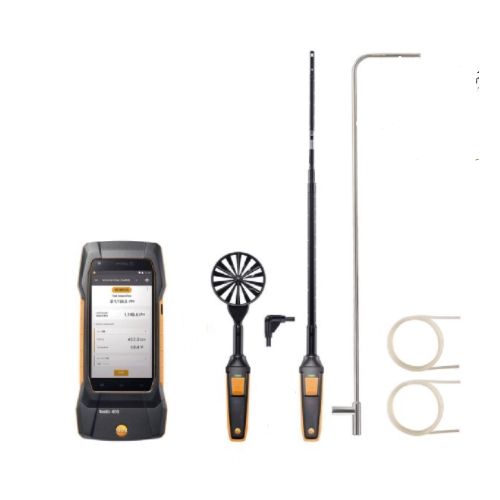

Package Includes:: Package Includes: Air Flow Kit

Ideal for Testing, Adjusting and Balancing (TAB) / (Retro)-Commissioning – Professionals (BSC / RCx) or Cleanroom Performance Tester (CPT) the testo 400 Air Flow kit meets highest standards when it comes down to accuracy and durability for air velocity measurements on HVAC systems.

Features:

A measuring instrument for all climate-related parameters
Measurement assistant for volume flow measurement according to ASHRAE 111 and NEBB air velocity and air pressure instrument requirements.
You have all measurement locations withat all times and ready atfingertips.
Wireless Bluetooth probes for maximum
freedom of movement at work.
Create and finalize measurement reports on site – directly on the testo 400.
Smart support through stored measurement menus and evaluation of measuring values according to the traffic light principle – for error-free measurements
Manage all the relevant customer data, including measuring points, directly in the instrument - work directly and efficiently on site
Complete and send measuring values with full documentation, including photos, comments andown logo directly on site – get to the next job faster
Probe heads can be changed without restarting the instrument – easy handling with no lost time
Calibration of probes which is independent of the measuring instrument and adjustment function at up to six measuring points for zero-error display – fewer downtimes and high-precision measurements

Applications:

Air flow measurements: Duct traverse (Hot wire probe / Pitot tube) Flow measurements at outlets (Rotating Vane Anemometer) as per ASHRAE 111 and NEBB Instrumentation Requirements in disciplines like TAB/BET/BSC/CPT/RCX
High-precision, location-independent and built-in differential pressure sensor, smart and intuitive measurement programs for IAQ measurements in accordance with the standards, creation of documentation on site, e-mailing of reports, versatile combination options with IAQ probes
Measurements in laboratories and clean rooms: Flow measurements in fume cupboards, differential pressure measurements and laminar flow measurements in clean rooms, humidity measurements in clean rooms with additional probes Comfort level measurements: Measurement of indoor air quality or turbulence as per ASHRAE 55, PMV/PPD as per ASHRAE 55.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Temperature - NTC
Measuring range	-40.0° to 302.0 °F / -40 to +150 °C
Accuracy	±0.4 °F ±1 Digit (-13° to 166.8 °F) / ±0.2 °C ±1 Digit (-25 to +74.9 °C) ±0.7 °F ±1 Digit (-40° to -13.2 °F) / ±0.4 °C ±1 Digit (-40 to -25.1 °C) ±0.7 °F ±1 Digit (75° to 211.8 °F) / ±0.4 °C ±1 Digit (+75 to +99.9 °C) ±0.5 % of mv ±1 Digit (Remaining Range)
Resolution	0 °F / 0.1 °C
Temperature - Type K TC
Measuring range	-328.0° to 2498.0 °F / -200 to +1370 °C
Accuracy	±(0.5 °F + 0.1 % of mv) ±1 Digit / ±(0.3 °C + 0.1 % of mv) ±1 Digit
Resolution	0.1 °F / 0.1 °C
Differential pressure (internal sensor) - Piezoresistive
Measuring range	-40 to +80 InH2O / -100 to +200 hPa
Accuracy	±(0.0 InH2O + 1 % of mv) ±1 Digit (0 to 25 InH2O) / ±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa) ±(0.0 InH2O + 1.5 % of mv) ±1 Digit (10.000 to 80 InH2O) / ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa)
Resolution	0.000 InH2O / 0.001 hPa
Absolute Pressure (internal sensor and external probe)
Measuring range	280 to 440 InH2O / 700 to 1100 hPa
Accuracy	±1 InH2O / ±3 hPa
Resolution	0.1 InH2O / 0.1 hPa
General technical data
Weight	17.99 oz. (instrument) / 510 g (instrument)
Dimensions	8.3 x 3.7 x 1.5 in. (LxWxH) / 210 x 95 x 39 mm (LxWxH)
Operating temperature	23.0° to 113.0 °F / -5 to +45 °C
Housing	Plastic
Protection class	IP40
Connectable probes	4 x digital Bluetooth probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
Product colour	black/orange
Camera image size	Main camera: 8.0 MP; Front camera: 5.0 MP
Battery life	approx. 10 hrs continuous operation
Display type	5.0" touch display, HD 1280*720 pixels, IPS (160 k)
Power supply	Rechargeable li-ion battery (5550 mAh)
Interface	Bluetooth; USB; WLAN
Memory	2 GB; 1,000,000 measuring values
Storage temperature	-4.0° to 140.0 °F / -20 to +60 °C
Hot wire probe (digital) - with Bluetooth Temperature - NTC
Measuring range	-4° to 158 °F / -20 to +70 °C
Accuracy	±0.9 °F (32° to 158 °F) / ±0.5 °C (0 to +70 °C) ±1.4 °F (-4° to 32 °F) / ±0.8 °C (-20 to 0 °C)
Resolution	0.1 °F / 0.1 °C
Humidity - Capacitive
Measuring range	5 to 95 %rH
Accuracy	±3 %rH (10 to 35 %rH) ±2 %rH (35 to 65 %rH) ±3 %rH (65 to 90 %rH) ±5 %rH (Remaining Range) ±0.06 %rF/K (k=1)
Resolution	0.1 %rH
General technical data
Storage temperature	-4° to 140 °F / -20 to +60 °C
Weight	14.1 oz. / 400 g
Dimensions	30.7 x 2.0 x 1.6 in. / 780 x 50 x 40 mm
Operating temperature	23° to 122 °F / -5 to +50 °C
Length telescope	39.37 in. / 1,000 mm
Probe head diameter	0.354 in. / 9 mm
Diameter telescope	0.63 in. / 16 mm
Product colour	black/orange
Length probe shaft	9.055 in. / 230 mm
Diameter probe shaft	0.354 in. / 9 mm
Battery type	4 x AA batteries
Battery life	21.5 h
Data transfer	Bluetooth
Radio range	65.616 ft. / 20 m

Product Details

Temperature - NTC
Measuring range	-40.0° to 302.0 °F / -40 to +150 °C
Accuracy	±0.4 °F ±1 Digit (-13° to 166.8 °F) / ±0.2 °C ±1 Digit (-25 to +74.9 °C) ±0.7 °F ±1 Digit (-40° to -13.2 °F) / ±0.4 °C ±1 Digit (-40 to -25.1 °C) ±0.7 °F ±1 Digit (75° to 211.8 °F) / ±0.4 °C ±1 Digit (+75 to +99.9 °C) ±0.5 % of mv ±1 Digit (Remaining Range)
Resolution	0 °F / 0.1 °C
Temperature - Type K TC
Measuring range	-328.0° to 2498.0 °F / -200 to +1370 °C
Accuracy	±(0.5 °F + 0.1 % of mv) ±1 Digit / ±(0.3 °C + 0.1 % of mv) ±1 Digit
Resolution	0.1 °F / 0.1 °C
Differential pressure (internal sensor) - Piezoresistive
Measuring range	-40 to +80 InH2O / -100 to +200 hPa
Accuracy	±(0.0 InH2O + 1 % of mv) ±1 Digit (0 to 25 InH2O) / ±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa) ±(0.0 InH2O + 1.5 % of mv) ±1 Digit (10.000 to 80 InH2O) / ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa)
Resolution	0.000 InH2O / 0.001 hPa
Absolute Pressure (internal sensor and external probe)
Measuring range	280 to 440 InH2O / 700 to 1100 hPa
Accuracy	±1 InH2O / ±3 hPa
Resolution	0.1 InH2O / 0.1 hPa
General technical data
Weight	17.99 oz. (instrument) / 510 g (instrument)
Dimensions	8.3 x 3.7 x 1.5 in. (LxWxH) / 210 x 95 x 39 mm (LxWxH)
Operating temperature	23.0° to 113.0 °F / -5 to +45 °C
Housing	Plastic
Protection class	IP40
Connectable probes	4 x digital Bluetooth probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
Product colour	black/orange
Camera image size	Main camera: 8.0 MP; Front camera: 5.0 MP
Battery life	approx. 10 hrs continuous operation
Display type	5.0" touch display, HD 1280*720 pixels, IPS (160 k)
Power supply	Rechargeable li-ion battery (5550 mAh)
Interface	Bluetooth; USB; WLAN
Memory	2 GB; 1,000,000 measuring values
Storage temperature	-4.0° to 140.0 °F / -20 to +60 °C
Hot wire probe (digital) - with Bluetooth Temperature - NTC
Measuring range	-4° to 158 °F / -20 to +70 °C
Accuracy	±0.9 °F (32° to 158 °F) / ±0.5 °C (0 to +70 °C) ±1.4 °F (-4° to 32 °F) / ±0.8 °C (-20 to 0 °C)
Resolution	0.1 °F / 0.1 °C
Humidity - Capacitive
Measuring range	5 to 95 %rH
Accuracy	±3 %rH (10 to 35 %rH) ±2 %rH (35 to 65 %rH) ±3 %rH (65 to 90 %rH) ±5 %rH (Remaining Range) ±0.06 %rF/K (k=1)
Resolution	0.1 %rH
General technical data
Storage temperature	-4° to 140 °F / -20 to +60 °C
Weight	14.1 oz. / 400 g
Dimensions	30.7 x 2.0 x 1.6 in. / 780 x 50 x 40 mm
Operating temperature	23° to 122 °F / -5 to +50 °C
Length telescope	39.37 in. / 1,000 mm
Probe head diameter	0.354 in. / 9 mm
Diameter telescope	0.63 in. / 16 mm
Product colour	black/orange
Length probe shaft	9.055 in. / 230 mm
Diameter probe shaft	0.354 in. / 9 mm
Battery type	4 x AA batteries
Battery life	21.5 h
Data transfer	Bluetooth
Radio range	65.616 ft. / 20 m
