Differential pressure |
Measuring range | - 0 to 50 Pa
- 0 to 100 Pa
- 0 to 500 Pa
- 0 to 10 hPa
- 0 to 50 hPa
- 0 to 100 hPa
- 0 to 500 hPa
- 0 to 1000 hPa
- 0 to 2000 hPa
| - -50 to 50 Pa
- -100 to 100 Pa
- -500 to 500 Pa
- -10 to 10 hPa
- -50 to 50 hPa
- -100 to 100 hPa
- -500 to 500 hPa
- -1000 to 1000 hPa
- -2000 to 2000 hPa
|
Measurement uncertainty* | ±0.8% of measurement range final value±0.3 PaTemperature gain drift: 0.02% of measuring range per Kelvin deviaton from nominal temperature 22 °CZero point drift: 0% (thanks to cyclic zeropoint adjustment) |
Selectable units | Differential pressure in Pa, hPa, kPa, mbar, bar, mmH2O, kg/cm2, PSI, inch HG, inch H2OCalculated variables: Volume flow in m3/h, l/min, Nm3/h, Nl/minFlow velocity in m/s, ft/min |
Sensor | Piezoresistive sensor |
Autom. zero-ointadjustment | via magnetic valve Frequency adjustable: 15 sec, 30 sec, 1 min, 5 min, 10 min |
Overload capacity | Measuring range0 to 50 Pa0 to 100 Pa0 to 500 Pa0 to 10 hPa0 to 50 hPa0 to 100 hPa0 to 500 hPa0 to 1000 hPa0 to 2000 hPa-50 to 50 Pa-100 to 100 Pa-500 to 500 Pa-10 to 10 hPa-50 to 50 hPa -100 to 100 hPa-500 to 500 hPa-1000 to 1000 hPa-2000 to 2000 hPa | Overload20000 Pa20000 Pa20000 Pa200 hPa750 hPa750 hPa2500 hPa2500 hPa2500 hPa20000 Pa20000 Pa20000 Pa200 hPa750 hPa750 hPa2500 hPa2500 hPa2500 hPa |
Operating conditions |
Operating temperature (With / without Operating temperaturedisplay0 | -5 to +50 °C / +23 to +122 °F |
Storage temperature (With / without Operating temperaturedisplay) | -20 to +60 °C / -4 to +140 °F |
Process temperature | -20 to +65 °C / -4 to +149 °F |
Analog outputs |
Quantity | 1 |
Output type | - 0/4 to 20 mA (4-wire) (24 VAC/DC)
- 0 to 1/5/10 V (4-wire) (24 VAC/DC)
|
Scaling | Differential pressure: scalable ±50% of measuring range final value; freely scalable within measuring range |
Meas. cycle | 1/sec |
Resolution | 12 bit |
Max. load | max. 500 Ω |
Other outputs |
Ethernet | Optional with Ethernet module |
Relay | Optional: 4 relays (free allocation to measurement channel or as collective alarm in operating menu/P2A), up to 250 VAC/3A (NO or NC) |
Digital | Mini-DIN for P2A software |
Supply |
Voltage supply | 20 to 30 VAC/DC, 300 mA current consumption, galvanically separate signal and supply line |
Material | Plastic housing |
Dimensions | 162 x 122 x 77 mm |
Weight | 0.7 kg; optional: Ethernet intermediary layer 0.6 kg |
Connection nipple | Ø 6 mm --> suitable hoses 4 mm + 4.8 mm |

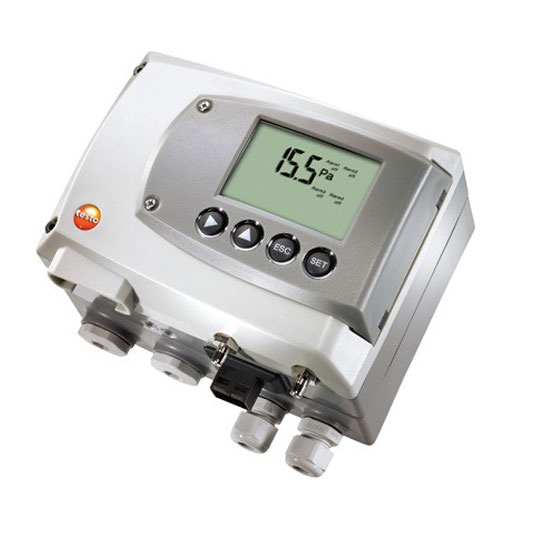

Display | Optional: 3-line LCD with multi-language operating menu |
Resolution | Measuring range- 0 to 50 Pa
- 0 to 100 Pa
- 0 to 500 Pa
- 0 to 10 hPa
- 0 to 50 hPa
- 0 to 100 hPa
- 0 to 500 hPa
- 0 to 1000 hPa
- 0 to 2000 hPa
- -50 to 50 Pa
- -100 to 100 Pa
- -500 to 500 Pa
- -10 to 10 hPa
- -50 to 50 hPa
- -100 to 100 hPa
- -500 to 500 hPa
- -1000 to 1000 hPa
- -2000 to 2000 hPa
| Resolution- 0.1 Pa
- 0.1 Pa
- 0.1 Pa
- 0.01 hPa
- 0.01 hPa
- 0.1 hPa
- 0.1 hPa
- 1 hPa
- 1 hPa
- 0.1 Pa
- 0.1 Pa
- 0.1 Pa
- 0.01 hPa
- 0.01 hPa
- 0.1 hPa
- 0.1 hPa
- 1 hPa
- 1 hPa
|
Miscellaneous |
Protection class | IP 65 |
EMC | EU guideline 2004/108/EC |
*The determination of measurement uncertainty takes place according to GUM (Guide to the Expression of Uncertainty in Measurement): For the determination of measurement uncertainty, the accuracy of the measuring instrument (hysteresis, linearity, reproduceability), the uncertainty contribution of the test site as well as the uncertainty of the adjustment site (works calibration) are taken into account. For this purpose, the value of k=2 of the extension factor, which is usual in measurement technology is used as a basis, which corresponds to a trust level of 95%. Measurement uncertainty differential pressure ±0.8% of measuring range final value ±0.3 Pa |
