Tempo OFL100-CBL500 Optical Time Domain Reflectometer

Tempo, OFL100-CBL500, Optical Time Domain Reflectometer with LC-500 Launch Cable

Features:

• Fast:
  • Easy to use one button test function. Start measurements with the push of one button.
  • Auto-test automatically sets test parameters for optimum test results.
• Accurate:

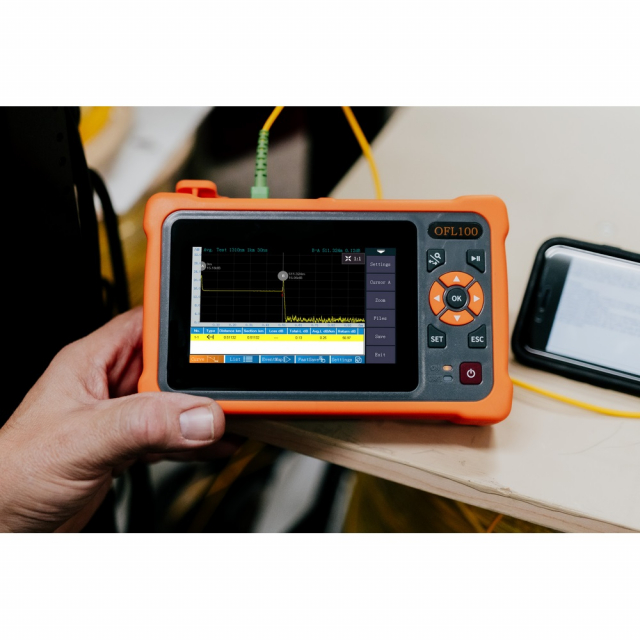

  • The graphical touchscreen interface is easy to read, even in high ambient light conditions.
  • Measure lengths and fiber defects to quickly locate faults.
• Reliable:
  • Link Viewer annotates the entire fiber link in an easy to interpret Pass/Fail format.
  • Cable acceptance reports generate customized reports that include trace signature and fiber events.
  • Long-life battery so you can work longer without recharging - up to 12-hour shift capable.

The OFL100-CBL500 is a kit that combines the OFL100 OTDR with an LC-500, 500m launch cable. Using the LC-500 launch cable with the OFL100 will ensure that the technician will be able to make the most accurate measurements by reducing the OTDR dead zone effects.

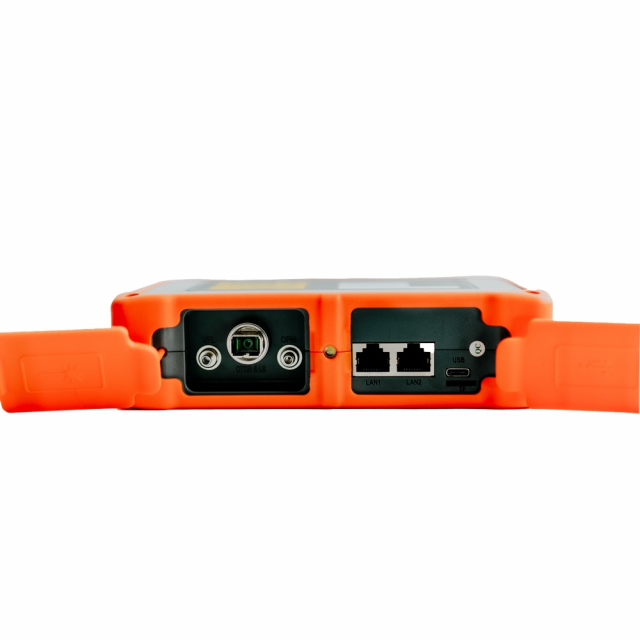

Long OTDR pulse widths are suppressed UNIVERSAL, COMPACT DESIGN: No need for multiple launch cables for varying network connectors Typically the technician will use a launch cable on the input and output connectors of the fiber under test. This allows the technician to characterize the insertion and return loss of the input and output connectors of the fiber link. Supports SC, LC, FC, and ST connectors (APC + UPC as appropriate). It is recommended that a one-meter patch cord is used at the OFL100 OTDR bulkhead. Please refer to the application note "Using a one meter Jumper at the bulkhead".
