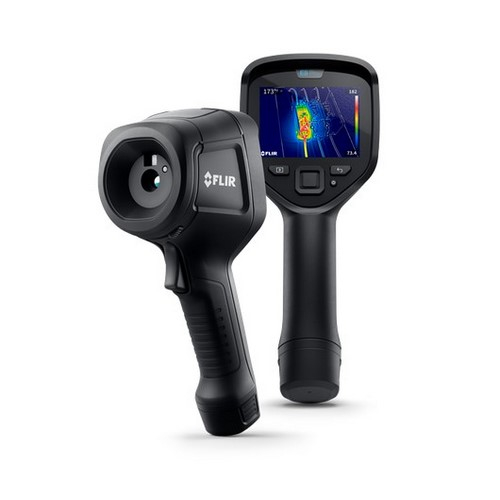

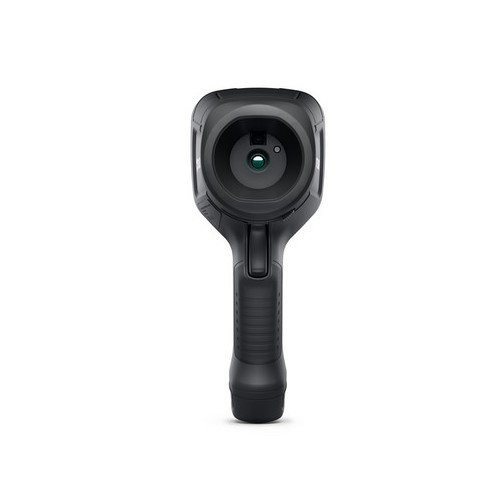

Buy Teledyne FLIR 13303-0302, E8 PRO Thermal Imaging Camera Ignite Cloud 320 x 240

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Thermal Resolution:: Thermal Resolution: 320 x 240

Flir, 13303-0302, E8 PRO Thermal Imaging Camera with Ignite Cloud, 320 x 240, -4 to 1022°F

Features:

320 x 240 (76,800 pixels) thermal resolution
Thermal sensitivity: <0.04°C (0.07°F) / <40 mK at 30°C (86°F)
Spatial resolution (IFOV): 1.8 mrad
1-Touch Level/Span contrast enhancement
FLIR IgniteTM cloud storage
Extended temperature: 550°C/1022°F
MSX® image enhancement
Wi-Fi connectivity
Quickly identify problems
- FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement provides highly detailed thermal images to help you quickly recognize where a problem is located.
Do it all from the touchscreen
- Organize your photos, add detailed notes, and upload them directly to the FLIR Ignite cloud for convenient access from any device.
Streamline sharing and reporting
- Share images easily and create advanced client reports in FLIR Ignite or FLIR Thermal Studio.

The FLIR E8 Pro is your must-have tool for locating and diagnosing electrical, mechanical, and building problems. Quickly pinpoint hot spots and easily identify problems with vibrant thermal imagery supported by FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement. Your inspections will be more efficient because you can do all your work from the touchscreen: organize your photos, add detailed notes, and upload them directly to the FLIR Ignite cloud for convenient access from any device. When you're ready to share images and create client reports, your images and notes are already available for your use in FLIR Ignite or FLIR Thermal Studio for the most streamlined experience.

Save Time With 1-Touch Level/Span

1-Touch Level/Span allows you to choose a small area of focus in a thermal image - with one touch of the screen - and the camera will auto-adjust the level and span based on the thermal contrast at that spot in the image. The result: time saved on manual adjustments.

E8 PRO Thermal Imaging Camera Ignite Cloud

Hassle-Free Data Transfer and Sharing with FLIR Ignite

Desktop Sync eliminates issues created by damaged or missing SD cards and USB cables
Secure Data Sharing to trusted team for easy collaboration and reporting
Edit Anywhere allows you or coworkers to create reports on mobile devices, on a browser or desktop

See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

IR Resolution

320 x 240 (76,800 pixels)

Thermal Sensitivity/NETD

<0.09°F (<0.05°C)/<50 mK

Focus

Fixed focus
Minimum focus distance: 1.18' (0.36 m)

Image Frequency

9 Hz

Color Palettes

Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC

Digital Camera

5 MP

Picture-in-Picture

IR area on visual image

Detector Type

Uncooled microbolometer

Field of View (FOV)

33°

F-Number

1.4

Image Modes

Thermal MSX, thermal, picture-in-picture, thermal blending, digital camera

Spatial Resolution (IFOV)

1.8 mrad

Spectral Range

7.5 to 13 µm

Inspection Efficiency

MSX (Multi-Spectral Dynamic Imaging): IR image enhanced with visible camera detail
Ignite: Instant upload to cloud storage over Wi-Fi
Thermal Studio Suite: Compatible with a full range of analysis and reporting software
Capacitive touchscreen: Access to onscreen menus, features, and keyboards
Text: Text annotation on an image using onscreen keyboard
Gallery: Thumbnails and custom folder structure

Measurement and Analysis

Object temperature range: -4 to 1022°F (-20 to 550°C) in two ranges
Accuracy: ±3.6°F (±2°C) or ±2% of reading, for ambient temperature 50 to 95°F (10 to 35°C) and object temperature above 32°F (0°C)
Measurement correction: Emissivity; matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation
Set-up commands: Local adaptation of units, language, date and time formats
Spot meter: Center spot; box with minimm/maximum

User Interface

Display: 3.5" (88.9 mm), 640 x 480 color LCD
Flashlight: Bright LED

Storage Media

Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi)

Environmental

Operating temperature: 5 to 122°F (-15 to 40°C)
Storage temperature: -40 to 158°F (-40 to 70°C)
Humidity (operating and storage): IEC 60068-2-30/24 h 95% relative humidity
Wi-Fi: Standard: 802.11 a/b/g/n (2.4 and 5 GHz)
Shock: 25 g (IEC 60068-2-27)
Vibration: 2 g (IEC 60068-2-6)

Certifications

UL, CSA, CE, PSE, and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC

EMC

EN 301 489-1
EN 301 489-17
EN 61000-6-3
EN 61000-6-2
FCC 47 CFR Part 15 Class B

Power

Battery type: Rechargeable Lithium-ion battery
Battery operating time: 4 hours
Charging system: The battery is charged inside the camera or in a specific charger
Charging time: 2 hours
Power management: Automatic shutdown

Dimensions

9.6 x 3.7 x 5.5" (244 x 95 x 140 mm)

Weight

1.3 lbs (0.59 kg) with battery

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

IR Resolution

320 x 240 (76,800 pixels)

Thermal Sensitivity/NETD

<0.09°F (<0.05°C)/<50 mK

Focus

Fixed focus
Minimum focus distance: 1.18' (0.36 m)

Image Frequency

9 Hz

Color Palettes

Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC

Digital Camera

5 MP

Picture-in-Picture

IR area on visual image

Detector Type

Uncooled microbolometer

Field of View (FOV)

33°

F-Number

1.4

Image Modes

Thermal MSX, thermal, picture-in-picture, thermal blending, digital camera

Spatial Resolution (IFOV)

1.8 mrad

Spectral Range

7.5 to 13 µm

Inspection Efficiency

MSX (Multi-Spectral Dynamic Imaging): IR image enhanced with visible camera detail
Ignite: Instant upload to cloud storage over Wi-Fi
Thermal Studio Suite: Compatible with a full range of analysis and reporting software
Capacitive touchscreen: Access to onscreen menus, features, and keyboards
Text: Text annotation on an image using onscreen keyboard
Gallery: Thumbnails and custom folder structure

Measurement and Analysis

Object temperature range: -4 to 1022°F (-20 to 550°C) in two ranges
Accuracy: ±3.6°F (±2°C) or ±2% of reading, for ambient temperature 50 to 95°F (10 to 35°C) and object temperature above 32°F (0°C)
Measurement correction: Emissivity; matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation
Set-up commands: Local adaptation of units, language, date and time formats
Spot meter: Center spot; box with minimm/maximum

User Interface

Display: 3.5" (88.9 mm), 640 x 480 color LCD
Flashlight: Bright LED

Storage Media

Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi)

Environmental

Operating temperature: 5 to 122°F (-15 to 40°C)
Storage temperature: -40 to 158°F (-40 to 70°C)
Humidity (operating and storage): IEC 60068-2-30/24 h 95% relative humidity
Wi-Fi: Standard: 802.11 a/b/g/n (2.4 and 5 GHz)
Shock: 25 g (IEC 60068-2-27)
Vibration: 2 g (IEC 60068-2-6)

Certifications

UL, CSA, CE, PSE, and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC

EMC

EN 301 489-1
EN 301 489-17
EN 61000-6-3
EN 61000-6-2
FCC 47 CFR Part 15 Class B

Power

Battery type: Rechargeable Lithium-ion battery
Battery operating time: 4 hours
Charging system: The battery is charged inside the camera or in a specific charger
Charging time: 2 hours
Power management: Automatic shutdown

Dimensions

9.6 x 3.7 x 5.5" (244 x 95 x 140 mm)

Weight

1.3 lbs (0.59 kg) with battery
