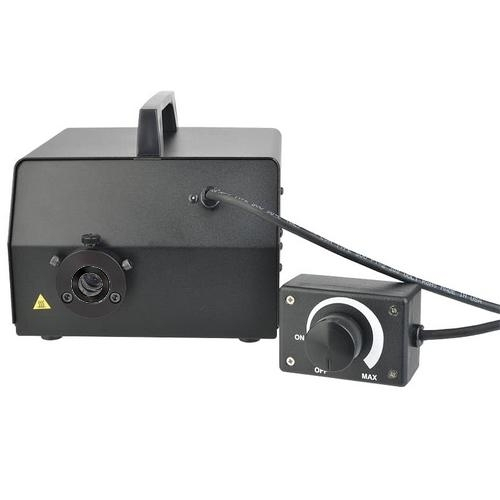

TechniQuip, F150-1KXT-NNB, FOI-150 Fiber Optic Illuminator, 150W, 115V
FOI Series illuminators are used in a wide range of manufacturing, microscopy, metrology, medical, research, and other applications.
Fiber Optic Illuminators are often referred to as “Cold Light” Illuminators because they provide high intensity,focused light without the heat typically associated with high intensity lamps.
Features:
- UL /CSA listed
- Integral filter holder for easy insertion and removal of filters
- IR/UV reflective filter standard on all units
- Improved safety features including over temperature protection and dual fuse protection
- Innovative dual faceplate configuration virtually eliminates heat transfer to the fiber and front panel
- Expanded fan diameter reduces exhaust noise by ~ 7 dB
- IEC standard plug allows easy substitution of different power cords
Common uses:
- Microscopes and Video Microscopes Boroscopes
- Industrial Imaging (Machine Vision)
- Custom Process and Inspection Equipment (Wire Bonders, Laser Welding)
| F | Model Name:
F150 = FOI-150 AC Power Cube |
| 1 |
| 5 |
| 0 |
| 1 | Input Voltage:
1 = 110VAC / 120VAC, 60Hz |
| K | Power Cord:
K = USA (Standard) |
| X | Nosepiece Insert:
X = None (1" opening) |
| T | Remote Control:
T = Tethered (8' Control Cord) |
| N | Name Plate:
NN = No Name |
| N |
| B | Exterior Finish:
B = Black |
