Buy TE-CO 35202, Pitbull Clamp, Brass, Blunt Edge, 0.375"

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Size, in:: Size, in: 0.375

Features:

Extremely low bite
Positive down force
High resistance to rip-out
Simple, sturdy, high quality design and components

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

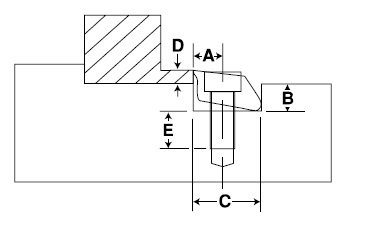

Dimensions

Bolt Position (A): 0.150 in
B: 0.140 in
Total Width (C): 0.375 in
D: 0.075 in
Shank Length (E): 0.220 mm

Clamp Width

0.375 in

Screw Size

4-40

Holding Force [Max]

200.00 lb

Torque

5.00 lbxft

Total Throw

0.0075 in

Clamps per Pkg.

Type

Clamp

Material

Steel

Head Top Width

0.3 in

Weight

0.07 lb

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions

Bolt Position (A): 0.150 in
B: 0.140 in
Total Width (C): 0.375 in
D: 0.075 in
Shank Length (E): 0.220 mm

Clamp Width

0.375 in

Screw Size

4-40

Holding Force [Max]

200.00 lb

Torque

5.00 lbxft

Total Throw

0.0075 in

Clamps per Pkg.

Type

Clamp

Material

Steel

Head Top Width

0.3 in

Weight

0.07 lb

Note

Note: Please read description carefully. Do not base your order on the picture presented.
