Buy TE-CO 33814, Nuzzler Edge Clamp, High Grip, 1/2 X 7-3/8"

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

Clamp Material: 1018 Steel
Black Oxide Finish
Features a double action, adjustable nose which exerts clamping pressures both downward and inward through a 45 degree angle.
Noses have serrations for better gripping of nonfinished or semi-finished workpieces
Tapered slots prevent clamp from sliding off the workpiece during tightening
Length "A" is calculated with nose raised 1/8"
Clamp Washer is included with each Edge Clamp

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

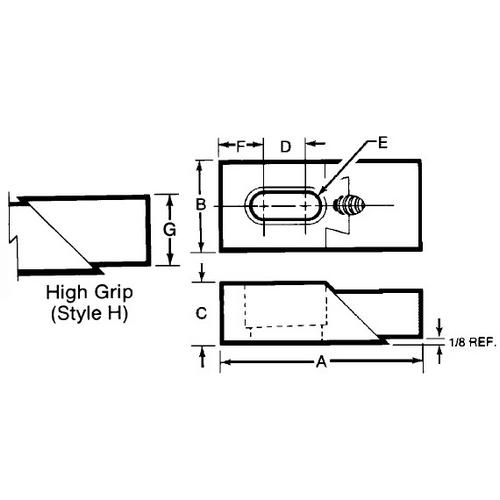

Technical Details

Material	1018 Steel
Finish	Black Oxide
Total Length (A)	7.375 in
Nose Style	H
Total Width (B)	1.500 in
Total Height (C)	1.250 in
Length (D)	3.313 in
Bolt Size (E)	1/2
Length (F)	1.188 in
Nose Height (G)	1.000 in
Wrench Size	1/4 in
Weight per 100 pcs	2.86 lb
Type	Edge Clamp
Style	High Grip
Haas	DM-1, DT-1, EC-1600, EC-1600ZT, MINIMILL, MINIMILL2, SMINIMILL, SMINIMILL2, UMC-750, UMC-750SS, UMC-750UMC-750SS, VF-2SS, VF-2SSYT, VF-2TR, VF-3SS, VF-3SSYT, VF-4SS, VF-540TR, VF-550TR, VF-5SS, VF-640TR, VF-650TR, VF-6SS, VM-2, VM-3, VM-6
Mori Seiki	DURA VERTICAL 5060, DURA VERTICAL 5080, DURA VERTICAL 5100, NH4000

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Material	1018 Steel
Finish	Black Oxide
Total Length (A)	7.375 in
Nose Style	H
Total Width (B)	1.500 in
Total Height (C)	1.250 in
Length (D)	3.313 in
Bolt Size (E)	1/2
Length (F)	1.188 in
Nose Height (G)	1.000 in
Wrench Size	1/4 in
Weight per 100 pcs	2.86 lb
Type	Edge Clamp
Style	High Grip
Haas	DM-1, DT-1, EC-1600, EC-1600ZT, MINIMILL, MINIMILL2, SMINIMILL, SMINIMILL2, UMC-750, UMC-750SS, UMC-750UMC-750SS, VF-2SS, VF-2SSYT, VF-2TR, VF-3SS, VF-3SSYT, VF-4SS, VF-540TR, VF-550TR, VF-5SS, VF-640TR, VF-650TR, VF-6SS, VM-2, VM-3, VM-6
Mori Seiki	DURA VERTICAL 5060, DURA VERTICAL 5080, DURA VERTICAL 5100, NH4000

Note: Please read description carefully. Do not base your order on the picture presented.
