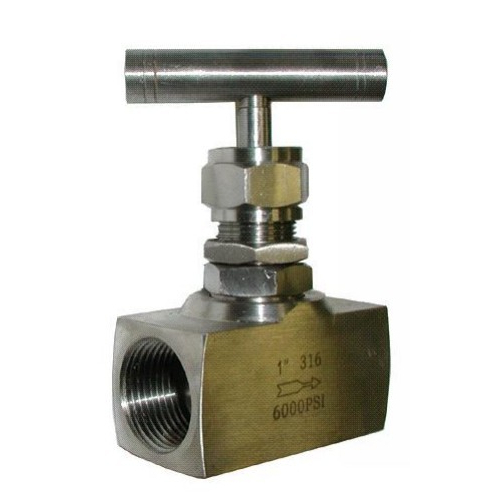

STC, VNO1-1, 1" Female NPT 6000 PSI 316 Stainless Steel Needle Valve, Panel Mount

Features:

316 Stainless Steel
NPT Female
Fire safe design
Panel Mount
Non-rotating, hardened needle design for leak-tight shutoff and long service life

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

This item is available for purchasing throughout request. Please use the "Add to Quote" button.

Technical Details

Port Size:	1"
End Connections:	NPT Threaded ASME b1.20.1
Max. Operating Pressure:	6000 PSIG at 100 °F
Operating Temperature Range:	-60 to 450 °F
Cv:	3.6
Panel Hole:	24

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Port Size:	1"
End Connections:	NPT Threaded ASME b1.20.1
Max. Operating Pressure:	6000 PSIG at 100 °F
Operating Temperature Range:	-60 to 450 °F
Cv:	3.6
Panel Hole:	24

Note: Please read description carefully. Do not base your order on the picture presented.
