Buy STC FC 8 R1/2 K, Female Connector, Black Release Button

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

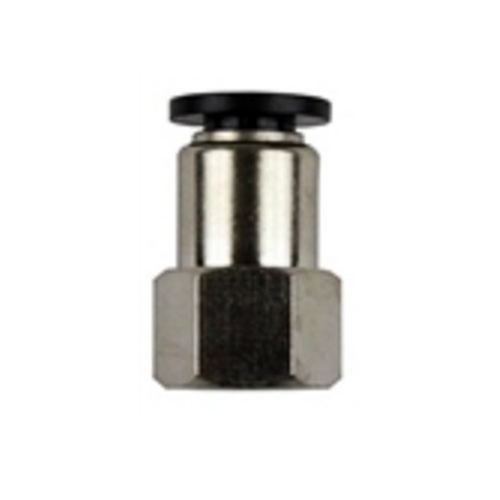

STC, FC 8 R1/2 K, 8mm Tube OD x 1/2" BSPT Female Connector, Black Release Button

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Tube OD:	8mm
Pipe Size:	1/2" NPT
Operating Pressure Range:	0 to 180 PSI (0 to 1200 kpa)
Vacuum:	0 to 29.5 in Hg (750 mm Hg)
Operating Temperature:	32 to 140 °F (0 to 60 °C)
Recommended Tubing Material:	Polyurethane, Nylon, Polyethylene, Polypropylene
Metal Body:	Brass, Nickel Plated
Plastic Body:	PBT (Polybutylene Terephthalate)
Release Button:	POM (Poly oxy methylene copolymer)
Grip Ring or Collet:	300 Series Stainless Steel
O-Ring:	NBR (Buna-N)
Thread Sealant:	Teflon
Service:	For Air Only

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Tube OD:	8mm
Pipe Size:	1/2" NPT
Operating Pressure Range:	0 to 180 PSI (0 to 1200 kpa)
Vacuum:	0 to 29.5 in Hg (750 mm Hg)
Operating Temperature:	32 to 140 °F (0 to 60 °C)
Recommended Tubing Material:	Polyurethane, Nylon, Polyethylene, Polypropylene
Metal Body:	Brass, Nickel Plated
Plastic Body:	PBT (Polybutylene Terephthalate)
Release Button:	POM (Poly oxy methylene copolymer)
Grip Ring or Collet:	300 Series Stainless Steel
O-Ring:	NBR (Buna-N)
Thread Sealant:	Teflon
Service:	For Air Only

Note: Please read description carefully. Do not base your order on the picture presented.
