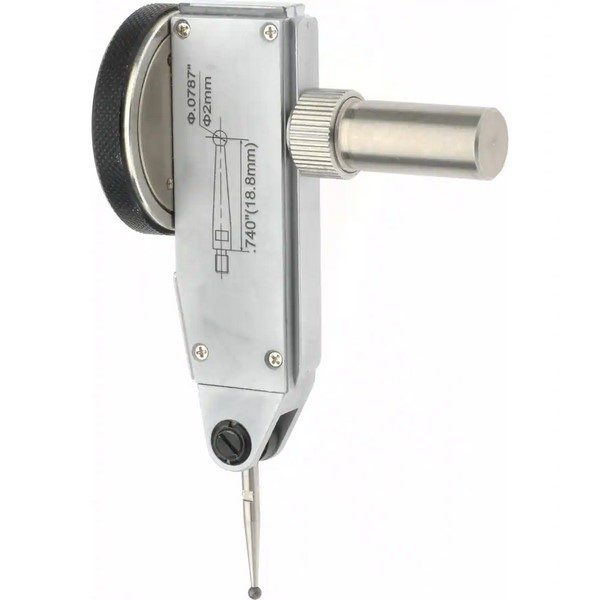

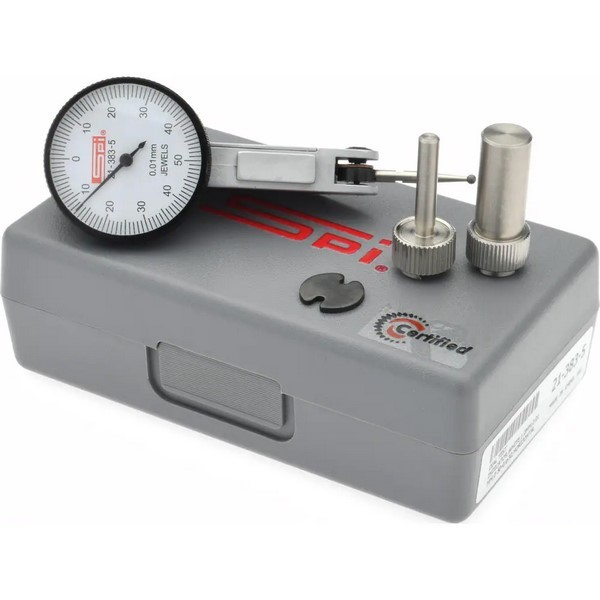

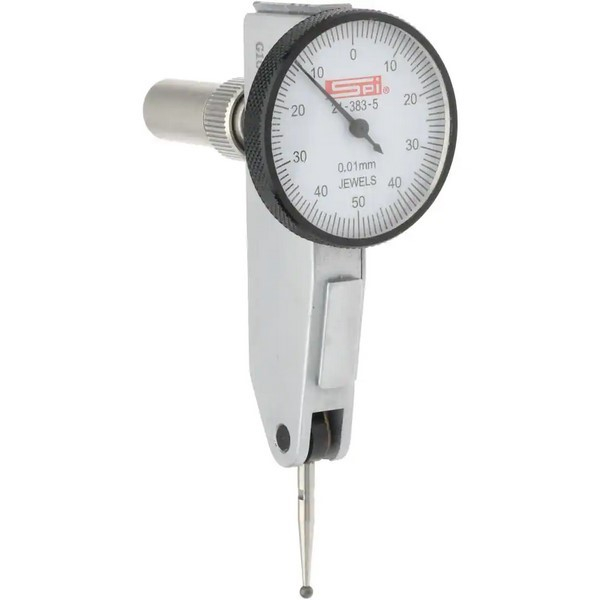

SPI, CMS160725001, 0 to 1mm 0.0100mm Graduation, Horizontal Dial Test Indicator

CMS160725001 Includes Only:

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Maximum Measurement (mm)	1.00
Dial Graduation (mm)	0.0100
Dial Reading	0-50-0
Dial Diameter (mm)	32.00
Style	Horizontal
Dial Color	White
Bearing Type	Je-weled
Mount Type	Dovetail
Range Per Revolution	1mm
Contact Point Length	18.80mm
Minimum Measurement (mm)	0.00
Calibrated	Yes
Traceability Certification Included	NIST
Attachments	No
Contact Point Length (Inch)	18.80mm
Contact Point Length (mm)	21.50
Ball Diameter (mm)	2.00
Accuracy	0.0130 mm

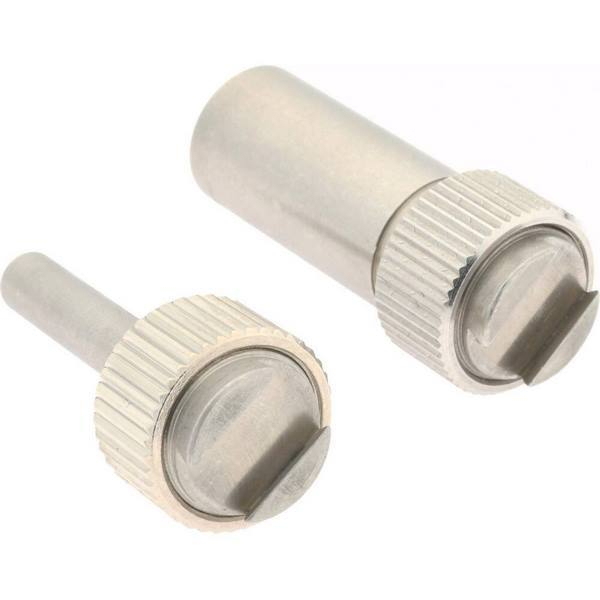

Number of Contact Points Included	2

Notes
