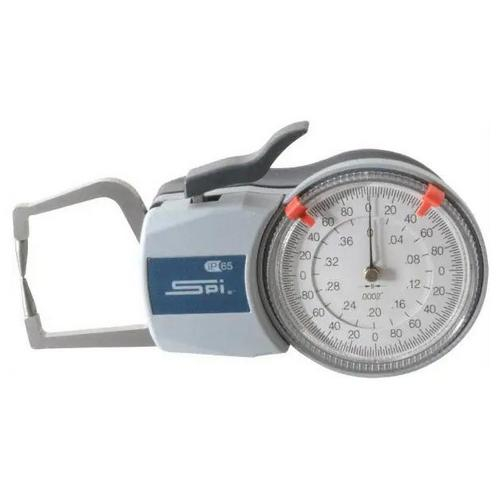

SPI, 15-523-4, 0.4 Inch Max Measurement, 0.0002 Inch Graduation, Outside Dial Caliper Gage

1.37 Inch Leg Length, 0.0008 Inch Accuracy

Features:

Used for measuring external grooves, recess diameters and thicknesses
Certain Oditest gage are used for measuring the wall thickness of small pipes and tubes
Jeweled movement, dust, splash and shockproof
Carbide measuring contacts
Dampened movement with steel string transmission for higher precision

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Minimum Measurement (Inch)	0
Minimum Measurement (Decimal Inch)	0.0000
Maximum Measurement (Decimal Inch)	0.4000
Graduation (Decimal Inch)	0.0002
Groove Depth (Decimal Inch)	0.7500
Groove Width (Decimal Inch)	0.1600
Contact Point Type	Ball/Ball
Accuracy (Decimal Inch)	0.0008
Leg Length (Decimal Inch)	1.3700

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Minimum Measurement (Inch)	0
Minimum Measurement (Decimal Inch)	0.0000
Maximum Measurement (Decimal Inch)	0.4000
Graduation (Decimal Inch)	0.0002
Groove Depth (Decimal Inch)	0.7500
Groove Width (Decimal Inch)	0.1600
Contact Point Type	Ball/Ball
Accuracy (Decimal Inch)	0.0008
Leg Length (Decimal Inch)	1.3700
