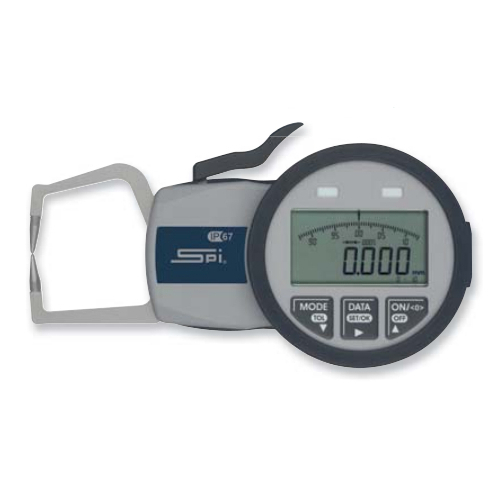

SPI 15-500-2 Oditest Electronic Caliper Gage

Range: 0" - 0.39" / 0 mm - 10 mm, Contact Point: Ball / Ball
  • Brand SPI
  • Part # 15-500-2
Availability
Discontinued
Share:

Replacement

This product is discontinued, no longer available. Replacement part numbers:

Options and Related Products

Range:
Range: 0" - 0.39" / 0 mm - 10 mm
Contact Point:
Contact Point: Ball / Ball

Features:

  • Used for measuring external grooves, recess diameters and thicknesses
  • Certain Oditest gage are used for measuring the wall thickness of small pipes and tubes
  • Jeweled movement, dust, splash and shockproof
  • Carbide measuring contacts
  • Electronic gages are IP67 rated
  • Dampened movement with steel string transmission for higher precision
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
Rage0" - 0.39" / 0 mm - 10 mm
Resolution0.0002" / 0.005 mm
Accuracy0.0008" / 0.015 mm
Meas. Depth1.37" / 35 mm
Groove Max. Depth0.075" / 18.6 mm
Groove Min. Width0.16" / 4.0 mm
Contact PointsBall / Ball
Product Details
Rage0" - 0.39" / 0 mm - 10 mm
Resolution0.0002" / 0.005 mm
Accuracy0.0008" / 0.015 mm
Meas. Depth1.37" / 35 mm
Groove Max. Depth0.075" / 18.6 mm
Groove Min. Width0.16" / 4.0 mm
Contact PointsBall / Ball
Note

Note: Please read description carefully. Do not base your order on the picture presented.
