Buy Scilogex 60301121249999, SCI120L-Pro 20L Rotary Evaporator

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

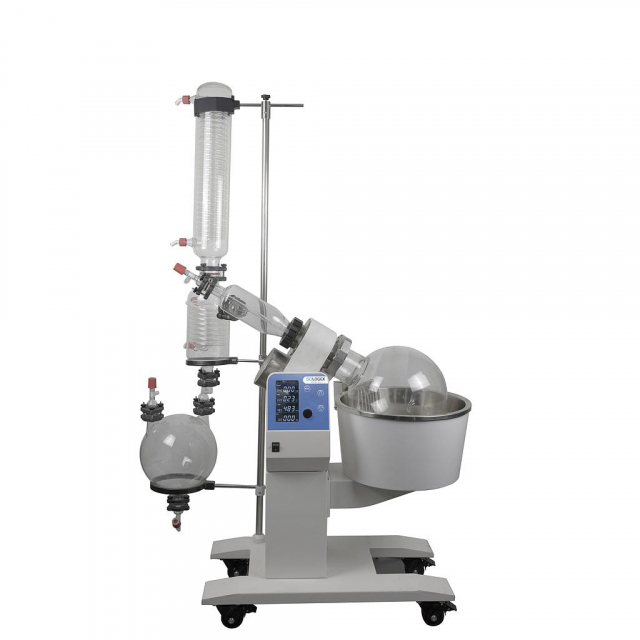

Scilogex, 60301121249999, SCI120L-Pro 20L Rotary Evaporator, Vertical Coiled Condenser, Motorized Lift

Features:

Large LCD digital display with heating temperature, rotation speed, clockwise, anti-clockwise and timer;
Simple automatic motorized lift (stroke 180mm), smooth and silent;
Water/oil heating bath with wide temperature range from room temperature range to max. 180°C;
Speed range from 10 to 150rpm, and interval operation in clockwise and anti-clockwise directions for drying process;
Double-layer high-efficiency condensing tube with large condensation area and strong evaporation capacity, ensscilogexng efficient sample recovery;
Patented PTFE double sealing ring with excellent sealing performance.
Switching valve for continuous collection without compromising the system vacuum and solvent distillation.
Large LCD display
Overheating protection
Excellent chemical resistance

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Rotation Speed	10~150 rpm
Display	LCD (temperature/speed/clockwise and Anti-clockwise/time)
Clockwise and Anti-clockwise	Yes
Temperature Range	Room temp. to 180°C (both water and oil)
Control Accuracy	Water: ± 1°C Oil: ± 3°C
Evaporation capacity	Max. 4.0 L/h (water vapor volume)
Stroke Displacement	Automatic 180 mm
Ultimate vacuum	Less 2.6 hpa
Dimension [DxWxH]	1160 mm x 600 mmx 1860 mm
Temperature control method	Micro processor PID control
Safety features	Motor over-current protection, Residual Current Device, lifting overload protection, Boil-dry protection, over-temperature protection
Sample flask	Round flask 20 L
Receiving flask	Round flask 10 L with drain valve
Condenser	Two-section vertical triple serpentine condenser, cooling surface 1.2 m²
Heating bath size	Ø:450 x 240 mm
Takeover caliber	Cooling/suction nozzle outer diameter 16 mm, vacuum pump nozzle outer diameter 16 mm
Power Supply	220 V/ 4600 W / 50/60 Hz, 380 V/ 6000 W/ 50/60 Hz

Rotation Speed	10~150 rpm
Display	LCD (temperature/speed/clockwise and Anti-clockwise/time)
Clockwise and Anti-clockwise	Yes
Temperature Range	Room temp. to 180°C (both water and oil)
Control Accuracy	Water: ± 1°C Oil: ± 3°C
Evaporation capacity	Max. 4.0 L/h (water vapor volume)
Stroke Displacement	Automatic 180 mm
Ultimate vacuum	Less 2.6 hpa
Dimension [DxWxH]	1160 mm x 600 mmx 1860 mm
Temperature control method	Micro processor PID control
Safety features	Motor over-current protection, Residual Current Device, lifting overload protection, Boil-dry protection, over-temperature protection
Sample flask	Round flask 20 L
Receiving flask	Round flask 10 L with drain valve
Condenser	Two-section vertical triple serpentine condenser, cooling surface 1.2 m²
Heating bath size	Ø:450 x 240 mm
Takeover caliber	Cooling/suction nozzle outer diameter 16 mm, vacuum pump nozzle outer diameter 16 mm
Power Supply	220 V/ 4600 W / 50/60 Hz, 380 V/ 6000 W/ 50/60 Hz

Note: Please read description carefully. Do not base your order on the picture presented.
