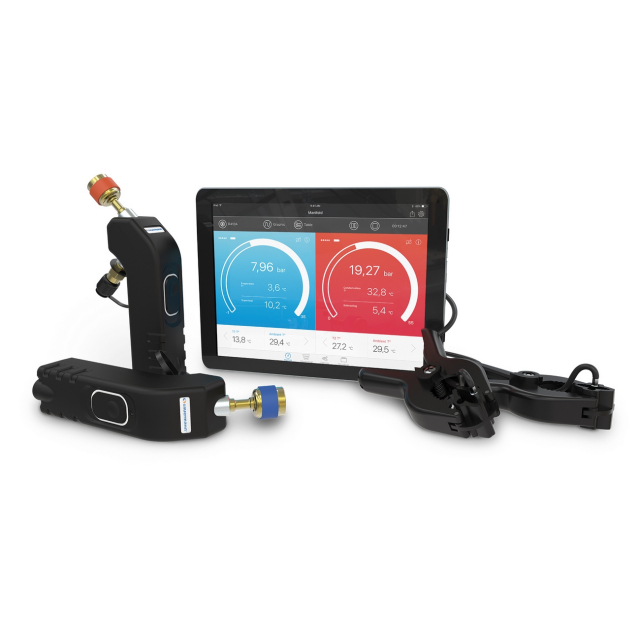

Sauermann, 25555-V, Si-RM3 Smart Wireless Manifold P/T Probes with Dual Valves

25555-V Includes Only:

2 pressure probes. Ref: Si-RM1
2 temperature probes. Ref: Si-RM2
Adjustment certificate
Simplified User Manual
6 AAA batteries
Elastomer rings
Soft case. Ref: Si-RM4

Tablet not included

Features:

Device
- Light and curved design for easy plug- in to facilities
- Dual valve system for simultaneous measurement and charge/discharge of refrigerant
- Built-in Schrader® cores for easy refrigerant charging
- Range up to 60 bar (870 psi)
- Reduce the use of cumbersome hoses
- Overmoulding for easy handling and protection
- Two temperature clamps
- Long range wireless connection 4.2 low energy
Si-Manifold APP
- Clear interface for easy reading in any condition
- Gauge, table or graphic visualizations
- Creation of measurements report with possibility to add pictures
- Report exportation in PDF, CSV and XML formats
- Data logging
- Chronometer function
- Free app for iOS and Android devices
- Minimum required versions: Android 4.4, IOS 8.0, BLE 4.0
- Superheat and subcooling real time calculation
- Configuration of superheat/subcooling target values
- Heating and cooling functions
- 126 refrigerant gases with favorite list
- Vacuum measurement function
- Configuration of vacuum target value
- Temperature of water evaporation

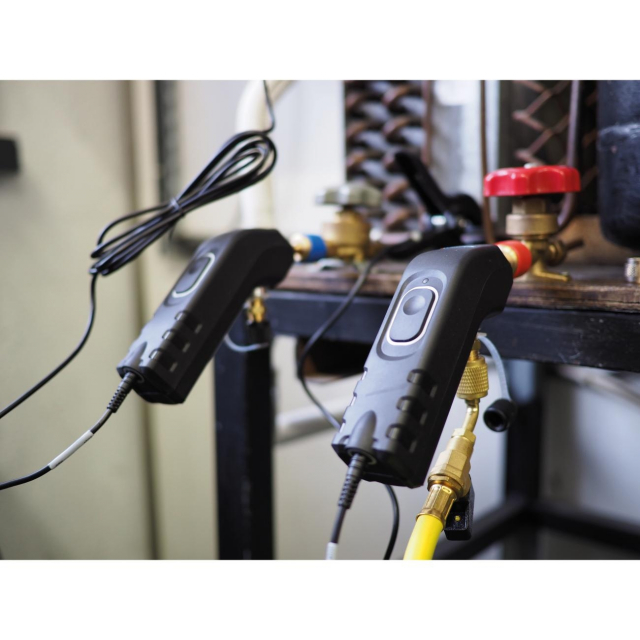

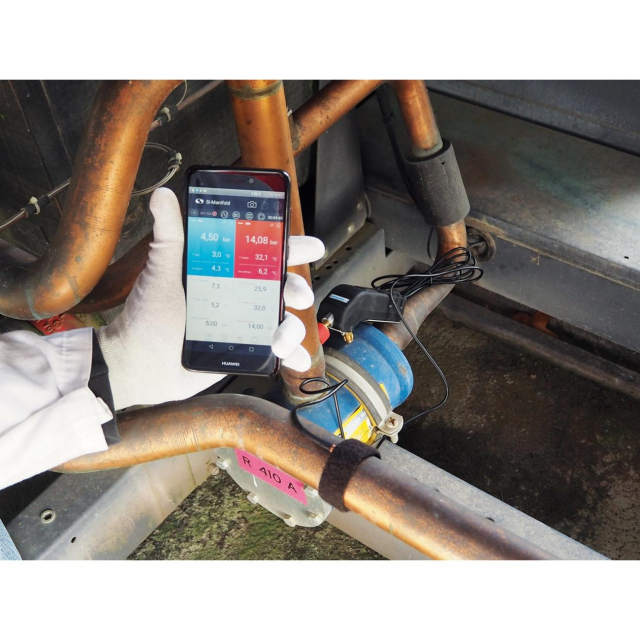

The Si-RM3 manifold comes with two pressure probes that accurately measure high side and low side pressure and two temperature probes that are used to accurately and simultaneously provide real-time superheat/sub cooling calculations.

Si-Manifold software is provided that instantly displays condensation/evaporation temperatures for up to 126 refrigerants.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Pressure

Pressure valves

2 valves

Measuring range

From -1 to 60 bar (-14 to 870 psi)

Pressure sensing accuracy*

±0.5% of full scale

Available units

psi, MPa, kPa, bar, Foot of head

Resolution

0.1 psi, 0.001 MPa, 1 kPa, 0.01 bar, 1 foot of head

Overload

65 bar (943 psi)

Burst pressure

150 bar (2175 psi)

Operating temperature (handle)

From -20 to 50°C (-4 to 122°F)

Storage temperature (handle)

From -20 to 60°C (-4 to 140°F)

Temperature

Number of probe

2 clamp probes

Temperature sensors

High accuracy NTC thermistors

Temperature sensor range**

From -40 to 150°C (-40 to 302°F)

Temperature accuracy*

±1.3°C (±2.4°F)***

Maximum operating temperatures

Jaws: 150°C (302°F) - Cable: 105°C (221°F) - Handle: 90°C (194°F)

Available units

°C, °F, K

Resolution

0.1°C, 0.1°F, 0.1 K

Pipes diameter

From 6 to 42 mm (0.2'' to 1.7'')

Cable

2 m (6 ft) length with strengthened 3-point Jack connector, 03.2 mm, in PVC, max. temperature 105°C (221°F)

Operating temperature

From -20 to 50°C (-4 to 122°F)

Storage temperature

From -20 to 60°C (-4 to 140°F)

Device

Environmental conditions of use

Hygrometry: in non-condensing condition (<80% RH) Maximum altitude: 2000 m (6561') Non-corrosive or combustible gases

Battery life

250 h (for one measurement every seconds at 20°C / 68°F)

Wireless connection

Class 1 BLE 4.2

Wireless connection range

Up to 30 m (98 ft) - Depending on smartphone and tablet wireless connection radio strength.

Superheat and subcooling

Automatically calculated by the Manifold app

Refrigerant database

126 refrigerant gases. Measurable products: CFC, HFC, HCFC, N, CO2, H20 (see the complete list on the user manual)

Connections

To installation: female FFL with Schrader® depressor To flexible: male W MFL with Schrader® valve

Standards

2011/65/EU RoHS II; 2012/19/EU WEEE; 2014/30/EU EMC; 2014/53/EU RED

* All accuracies specified in this document were conducted under laboratory conditions & can be guaranteed for measurement carried out in the same conditions, or carried out with calibration compensation.
** The temperature concerns the sensors operating range, do not use the handle or cables outside the indicated temperature.
*** The temperature accuracy is given for the -20 to 80°C / -4 to 176°F range.
