SATO America 11S000201 RWG500 Industrial Liner Rewinder 5" Wide

Options: RWG500 5" Wide Label Rewinder with External Power Supply
  • Brand SATO America
  • Part # 11S000201
  • Model # RWG500
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Options:
Options: RWG500 5" Wide Label Rewinder with External Power Supply

SATO America, 11S000201, RWG500 Industrial Liner Rewinder 5" Wide with /110/220V Auto-Switching Power Supply (for use with the LM4e Series or any Competitive Printer)

Universal, Reliable and Durable Rewinder


Auto-Adjust Take-Up Speed

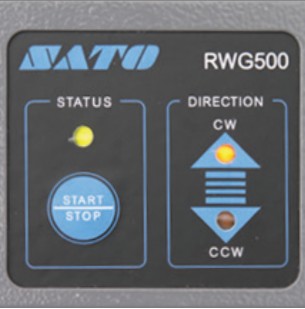

User-Friendly Operation Panels
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller

Technical Details

Reviews
Operation Characteristics
Environment Operating41º F – 104º F (5º C – 40º C), 30%-80% RH, non-condensing
Environment Storage23º F – 140º F (-5º C – 60º C), 30%-90% RH, non-condensing
Regulatory ApprovalsUL/C-UL, FCC, CE, TÜV
DimensionsW: 11" (280 mm), D: 12.6" (320 mm), H: 9" (230 mm)
Weight16.5 lbs. (7.5 kg) or Less
Noise LevelLess than 60 dB
Input PowerEXT Cable Connection to SATO Printers (DC +24V, 2A)
Supported Printer ModelsCL4NX, CL6NX, M5900RVe, CL408/412e, M84Pro, CL608/612e [Additional Options are Required for Width Over 5.16" (131mm)]
Rewinding Characteristics
SpeedUp to 15"/sec (381 mm/sec)
Method1.5" (38.1 mm) Spindle / 3" (76.2 mm) Paper Core
DirectionFace-Out/Face-In (Counterclockwise/Clockwise)
MonitoringAutomatic Control by Tension Arm Position
Outer Diameter/RollMaximum 11" (265 mm)
Media Size WidthStandard: 0.98" - 5.16" (25 mm - 131 mm)
Media Size Pitch0.31" - 15.75" (8 mm - 400 mm)
Media Size Roll SizeStandard: 8.66" (220 mm) Max O.D
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Operation Characteristics
Environment Operating41º F – 104º F (5º C – 40º C), 30%-80% RH, non-condensing
Environment Storage23º F – 140º F (-5º C – 60º C), 30%-90% RH, non-condensing
Regulatory ApprovalsUL/C-UL, FCC, CE, TÜV
DimensionsW: 11" (280 mm), D: 12.6" (320 mm), H: 9" (230 mm)
Weight16.5 lbs. (7.5 kg) or Less
Noise LevelLess than 60 dB
Input PowerEXT Cable Connection to SATO Printers (DC +24V, 2A)
Supported Printer ModelsCL4NX, CL6NX, M5900RVe, CL408/412e, M84Pro, CL608/612e [Additional Options are Required for Width Over 5.16" (131mm)]
Rewinding Characteristics
SpeedUp to 15"/sec (381 mm/sec)
Method1.5" (38.1 mm) Spindle / 3" (76.2 mm) Paper Core
DirectionFace-Out/Face-In (Counterclockwise/Clockwise)
MonitoringAutomatic Control by Tension Arm Position
Outer Diameter/RollMaximum 11" (265 mm)
Media Size WidthStandard: 0.98" - 5.16" (25 mm - 131 mm)
Media Size Pitch0.31" - 15.75" (8 mm - 400 mm)
Media Size Roll SizeStandard: 8.66" (220 mm) Max O.D
Note

Note: Please read description carefully. Do not base your order on the picture presented.
