Safewaze 024-4109 Reach Anchor Assembly

  • Brand Safewaze
  • Part # 024-4109
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

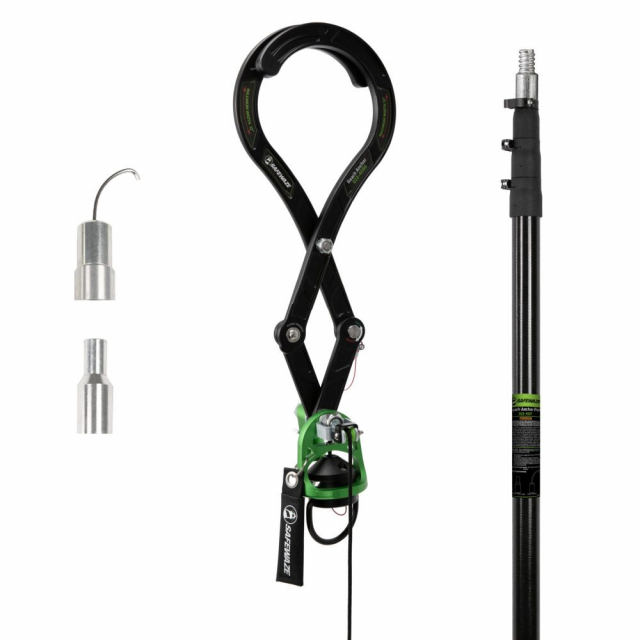

024-4109 Includes Only:

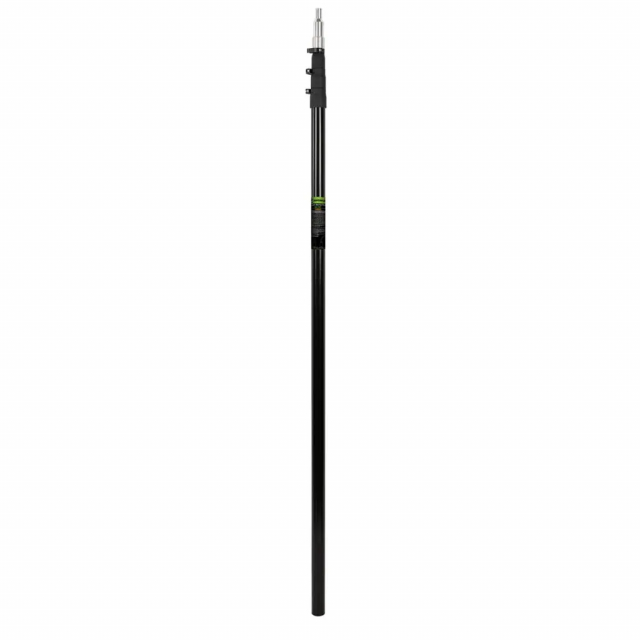

  • Telescoping pole

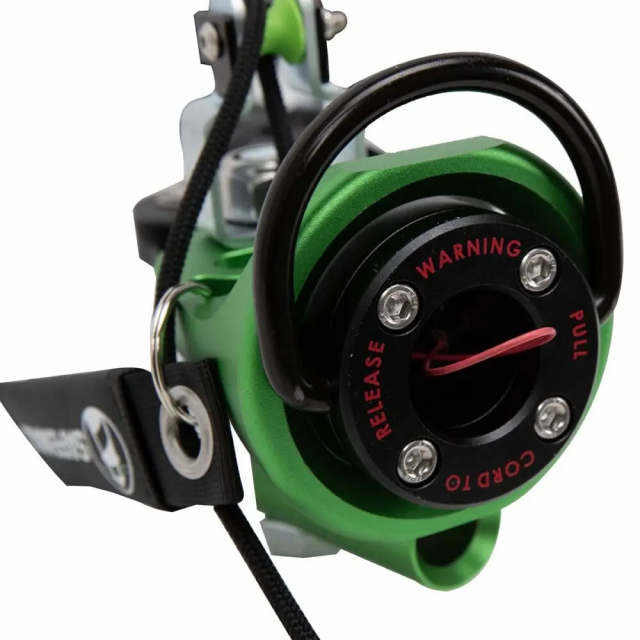

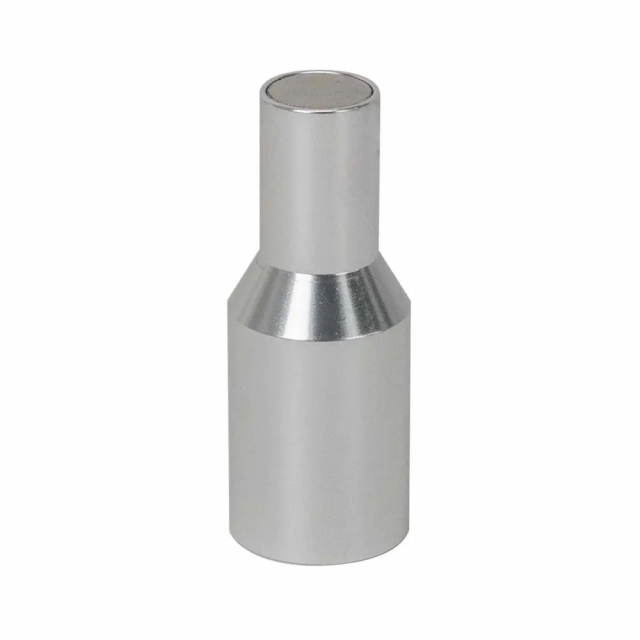

  • Magnetic Quick Connector Base

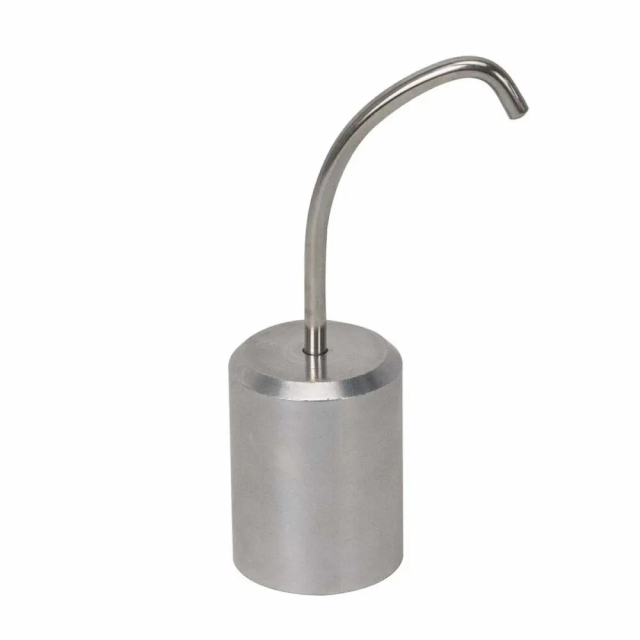

  • Hook Attachment

Features:

  • Proprietary system to remotely anchor to an elevated point

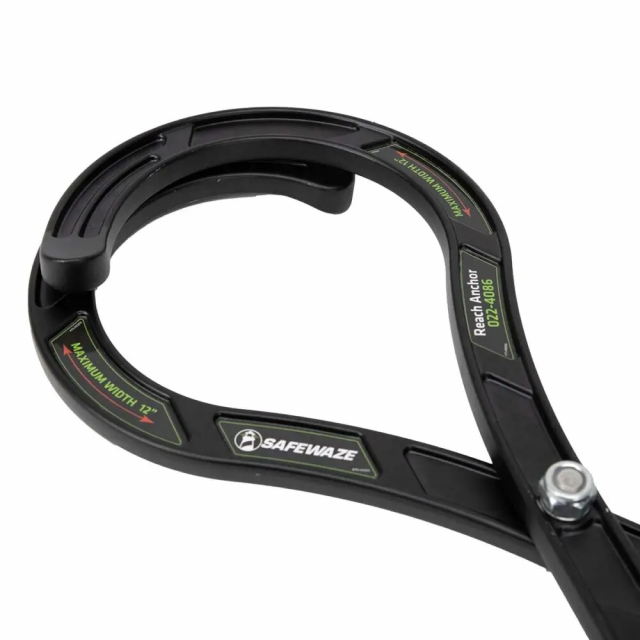

  • Connects to I-beams up to 12", pipes and other pre-established anchor points
  • Compact, lightweight and portable
  • Remote release using telescoping pole and attachments
  • Easy 2-stage installation to attach anchor point and raise PFAS

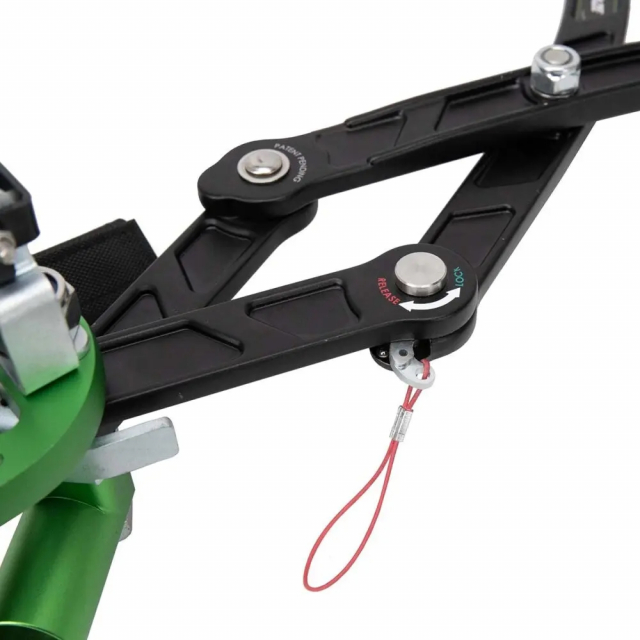

  • Prevent accidental disengagement with safety toggle on self-tightening jaws
  • Corrosion-resistant premium grade aluminum components add strength

The Reach Anchor Assembly is a proprietary anchorage system for workers to remotely anchor to an elevated point, increasing safety for the first workers needing anchorage in a given at-height situation. It's compact, lightweight fall protection in two simple steps: the versatile Reach Anchor connects first, without the added weight of an SRL, then the SRL can be easily raised and secured.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Materials:Aluminum, stainless steel, steel, nylon, polyester rope, fiberglass pole with aluminum head
Weight:10.3 lbs. (4.7 kg)
Anchor Dimensions:27.2" x 8.9" x 6.3" (690mm x 225mm x 160mm)
Minimum Breaking Strength:5,000 lbs. (22kN)
ANSI Weight Capacity:130-310 lbs. (59-141 kg)
OSHA Weight Capacity:Up to 420 lbs. (191 kg)
ANSI Standards:Z359.18-2017 Type A
OSHA Standards:1926.502, 1910.140, 1910.66
Maximum Install Height:20' from working surface
Attachment Points:D-ring
Working Load Limit:1,000 lbs. (4.4 kN)
I-Beam Size:Up to 12"
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Materials:Aluminum, stainless steel, steel, nylon, polyester rope, fiberglass pole with aluminum head
Weight:10.3 lbs. (4.7 kg)
Anchor Dimensions:27.2" x 8.9" x 6.3" (690mm x 225mm x 160mm)
Minimum Breaking Strength:5,000 lbs. (22kN)
ANSI Weight Capacity:130-310 lbs. (59-141 kg)
OSHA Weight Capacity:Up to 420 lbs. (191 kg)
ANSI Standards:Z359.18-2017 Type A
OSHA Standards:1926.502, 1910.140, 1910.66
Maximum Install Height:20' from working surface
Attachment Points:D-ring
Working Load Limit:1,000 lbs. (4.4 kN)
I-Beam Size:Up to 12"
Note

Note: Please read description carefully. Do not base your order on the picture presented.
