Safewaze 023-4096 Standing Seam Swivel Anchor

  • Brand Safewaze
  • Part # 023-4096
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Features:

  • Easy to install, reusable non-penetrating anchor point
  • Designed for flat or pitched standing seam roofs minimum gauge 26
  • Equipped with (4) S-5-U clamps for attachment onto a variety of standing seam profiles
  • Adjustable crossarm spans 24"-40" and locks with detent pins

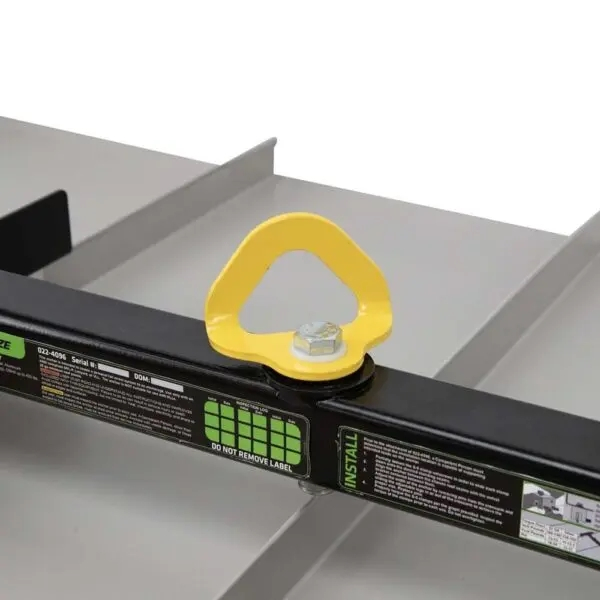

  • 360° swivel D-ring connection point for SRL-Ps, energy absorbing lanyards and VLLs (not for use with HLLs)

The Standing Seam Swivel Anchor is a non-penetrating roof anchor that is easy to install and versatile to fit different profiles on both flat and pitched standing seam roofs. The swivel D-ring improves mobility for workers connecting personal SRLs, lanyards and vertical lifelines.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Materials:Powder coated steel, stainless steel, aluminum
Weight:19.2 lbs. (8.7 kg)
Base Plate:27 in. x 12 in. (68.6 cm x 30.5 cm)
Height:6 in. (15.2 cm)
Minimum Breaking Strength:3,600 lbs. (16 kN)
System Capacity:1 user maximum
ANSI Weight Capacity:130-310 lbs. (59-141 kg)
OSHA Weight Capacity:up to 420 lbs. (191 kg)
OSHA Standards:1926.502, 1910.140, 1910.66
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Materials:Powder coated steel, stainless steel, aluminum
Weight:19.2 lbs. (8.7 kg)
Base Plate:27 in. x 12 in. (68.6 cm x 30.5 cm)
Height:6 in. (15.2 cm)
Minimum Breaking Strength:3,600 lbs. (16 kN)
System Capacity:1 user maximum
ANSI Weight Capacity:130-310 lbs. (59-141 kg)
OSHA Weight Capacity:up to 420 lbs. (191 kg)
OSHA Standards:1926.502, 1910.140, 1910.66
Note

Note: Please read description carefully. Do not base your order on the picture presented.
