Buy Safewaze 022-4090, Membrane Anchor 3,600 lbs

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

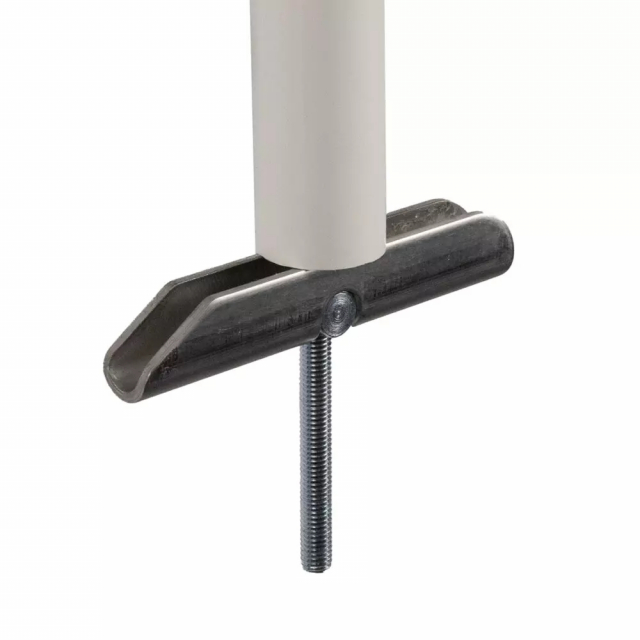

No access to underside of roof required with easy drop-through installation
Permanent anchor designed exclusively for membrane roofs

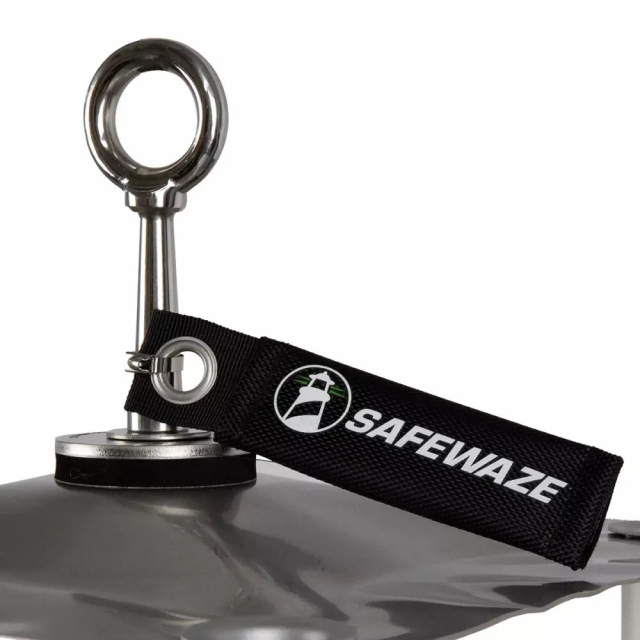

Elevated eye bolt (4") prevents abrasion from connecting hardware
360° working radius increases efficiency
Versatile to accommodate roof thicknesses from 3" to 12"
Ideal for use as single point anchor
Not for use with HLL systems

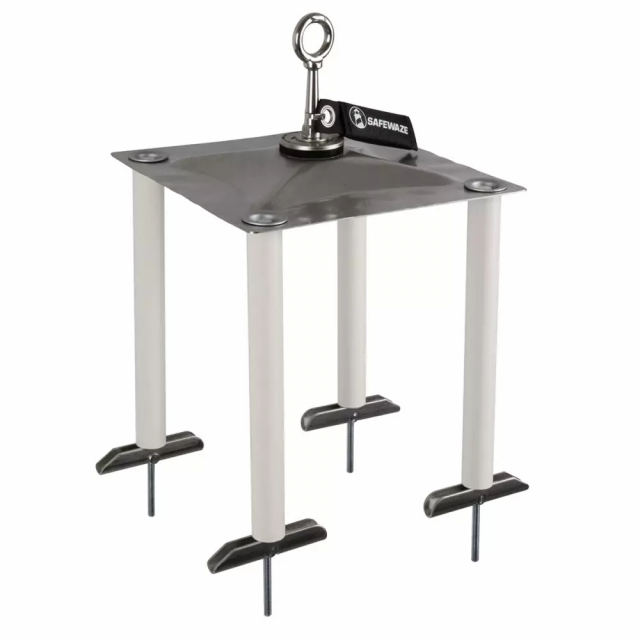

The Membrane Anchor offers easy drop-through installation from the roof surface; no access underneath required. With a 360° working radius and a 4″ elevated anchor point to prevent wear and tear from connections dragging on the surface, this permanent anchor can be used as a single point anchor with lanyards, SRLs or VLLs.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Materials:	Stainless steel, galvanized steel, zinc plated steel, PVC, closed cell foam
Weight:	6.2 lbs. (2.8 kg)
Base Plate:	11.6" x 11.6" (295 mm x 295 mm)
Number of Holes:	4
Hole Diameter:	1-3/16" (30 mm)
Minimum Breaking Strength:	3,600 lbs.
ANSI Weight Capacity:	130-310 lbs. (59-141 kg)
OSHA Standards:	1926.502, 1910.140, 1910.66

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Materials:	Stainless steel, galvanized steel, zinc plated steel, PVC, closed cell foam
Weight:	6.2 lbs. (2.8 kg)
Base Plate:	11.6" x 11.6" (295 mm x 295 mm)
Number of Holes:	4
Hole Diameter:	1-3/16" (30 mm)
Minimum Breaking Strength:	3,600 lbs.
ANSI Weight Capacity:	130-310 lbs. (59-141 kg)
OSHA Standards:	1926.502, 1910.140, 1910.66

Note

Note: Please read description carefully. Do not base your order on the picture presented.
