REED Instruments R8080 30 - 130 dB Data-Logging Sound Level Meter

Datalogging: Yes, NIST Certificate: No
 ( 2 reviews )
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Datalogging:
Datalogging: Yes
NIST Certificate:
NIST Certificate: No

30 - 130 dB Data-Logging Sound Level Meter

Includes:

  • Sound Level Meter / Datalogger
  • Windshield Ball
  • USB Cable
  • PC Software
  • Hard Carrying Case
  • Batteries

Features:

  • High accuracy of ±1.4 dB meets Type 2 standards
  • Triple range measurement (60dB dynamic range)
  • A & C frequency weighting
  • Fast & Slow time weighting
  • Record up to 64,000 datapoints and keep track with internal time and date stamp
  • User selectable sampling rate from 1 to 60 seconds
  • Large, easy-to-read backlit LCD display
  • Digital analog bargraph
  • Min/Max hold and auto shut off
  • Tripod mount for long-term monitoring
  • Low battery indicator
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Measuring Ranges 30-130 dB
Low: 30-90dB
Med: 50 -110 dB
High: 70 -130 dB
Full: 30-130 dB
Dynamic Range 60 dB (in each range)
Accuracy ±1.4 dB
Resolution Digital: 0.1 dB
Analog: 2dB
Response Time Digital: 500ms
Analog: 50ms
Frequency Range 20 Hz to 8 kHz
Frequency Weighting A, C
Time Weighting Fast/Slow (125ms and 1s)
Microphone 0.5" (12.7mm) electret condenser
Digital Analog Bargraph Yes (30 segment)
Display 4-digit LCD
Backlit Display Yes
Min Yes
Max Yes
Alarm Indicators Under and Over (visual on-screen)
Datalogging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Selectable Sampling Rate Yes (between 1s and 60s)
Internal Memory 1mb (64,000 datapoints)
Auto Shut-off Yes (after 30 mins/off)
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 4 x AAA batteries
Output Yes (AC/DC)
Battery Life Approx 50 hours

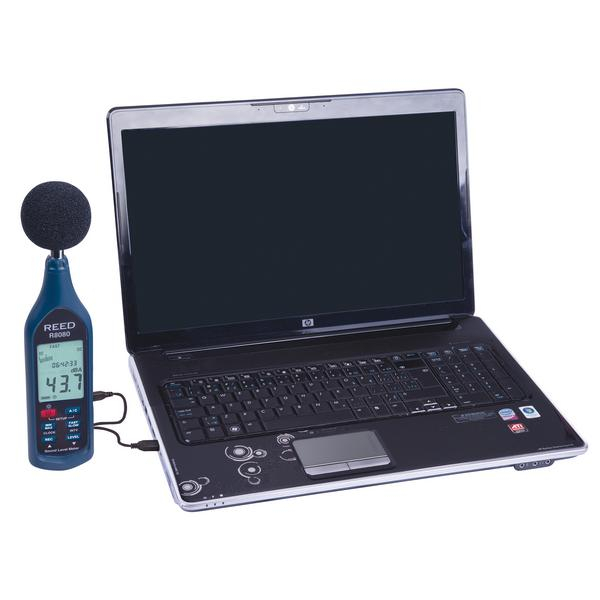

PC Connectivity USB
Software OS Compatibility Windows XP / Vista / 7 / 8 / 10
Product Certifications CE, IEC 61672-1 Class 2, ANSI S1.4 Type 2
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-90%
Dimensions 10.4 x 2.5 x 1" (264 x 63 x 29mm)
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Measuring Ranges 30-130 dB
Low: 30-90dB
Med: 50 -110 dB
High: 70 -130 dB
Full: 30-130 dB
Dynamic Range 60 dB (in each range)
Accuracy ±1.4 dB
Resolution Digital: 0.1 dB
Analog: 2dB
Response Time Digital: 500ms
Analog: 50ms
Frequency Range 20 Hz to 8 kHz
Frequency Weighting A, C
Time Weighting Fast/Slow (125ms and 1s)
Microphone 0.5" (12.7mm) electret condenser
Digital Analog Bargraph Yes (30 segment)
Display 4-digit LCD
Backlit Display Yes
Min Yes
Max Yes
Alarm Indicators Under and Over (visual on-screen)
Datalogging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Selectable Sampling Rate Yes (between 1s and 60s)
Internal Memory 1mb (64,000 datapoints)
Auto Shut-off Yes (after 30 mins/off)
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 4 x AAA batteries
Output Yes (AC/DC)
Battery Life Approx 50 hours
PC Connectivity USB
Software OS Compatibility Windows XP / Vista / 7 / 8 / 10
Product Certifications CE, IEC 61672-1 Class 2, ANSI S1.4 Type 2
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-90%
Dimensions 10.4 x 2.5 x 1" (264 x 63 x 29mm)
