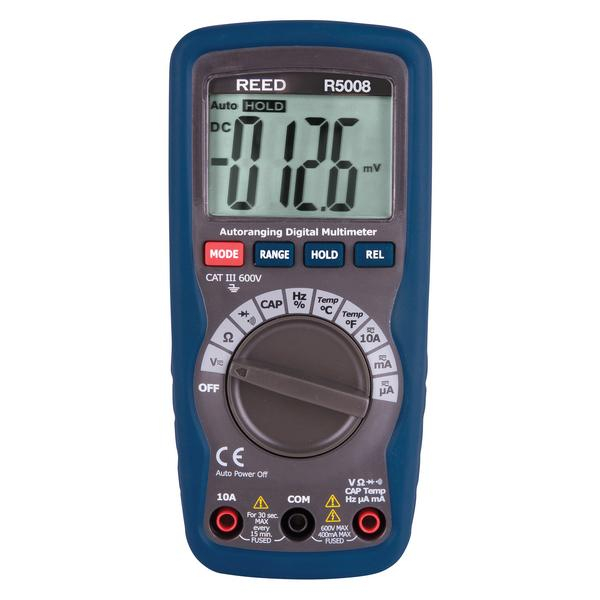

REED Instruments, R5008, 600V AC/DC Auto-Ranging Multimeter with Temperature Function

This autoranging multimeter is capable of measuring AC/DC voltage and current, resistance, frequency, capacitance and temperature. Featuring double molded plastic housing, the R5008 includes diode check and continuity functions and ships complete with test leads and a thermocouple probe for contact temperature measurements.

Features

Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
Diode check and continuity functions
Relative and data hold functions
Double molded plastic housing
Cat. III 600V safety rating

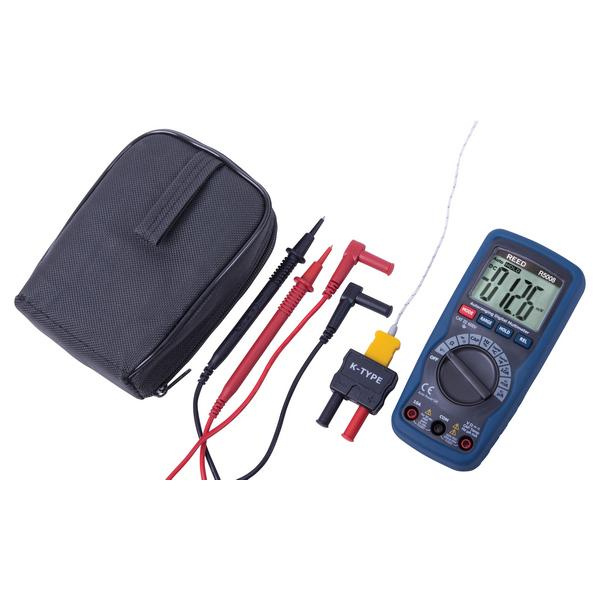

Included

Compact Digital Multimeter
Temperature Input Adapter
Thermocouple Wire Probe (Type K)
Test Leads
Battery
Carrying Case

Applications

Testing batteries
Testing household wiring
Testing electric motors
Testing power supplies

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Range	AC: 400mV, 4, 40, 400, 600V DC: 400mV, 4, 40, 400, 600V
Accuracy	AC: 400mV ±(15% rdg. + 15 dgt.) 4V ±(1.2% rdg. + 3 dgt.) 40, 400V ±(1.5% rdg. + 3 dgt.) 600V ±(2.0% rdg. + 4 dgt.) DC: 400mV ±(0.05% rdg. + 2 dgt.) 4, 40, 400V ±(1.2% rdg. + 2 dgt.) 600V ±(1.5% rdg. + 2 dgt.)
Resolution	AC: 0.1mV, 1, 10, 100V DC: 0.1mV, 1, 10, 100V
Range	400, 4000uA, 40, 400mA, 10A
Accuracy	AC: 400uA ±(1.5% rdg. + 5 dgt.) 4000uA/ 40, 400mA ±(1.8% rdg. + 5 dgt.) 10A ±(3.0% rdg. + 7 dgt.) DC: 400uA ±(1.0% rdg. + 3 dgt.) 4000uA/ 40, 400mA ±(1.5% rdg. + 3 dgt.) 10A ±(2.5% rdg. + 5 dgt.)
Resolution	0.1, 1uA, 10, 100mA, 1A
Range	400Ω, 4, 40, 400kΩ, 4, 40MΩ
Accuracy	400Ω: ±(1.2% rdg. + 4 dgt.) 4kΩ: ±(1.0% rdg. + 2 dgt.) 40, 400kΩ, 4MΩ: ±(1.2% rdg. + 2 dgt.) 40MΩ: ±(2.0% rdg. + 3 dgt.)
Resolution	0.01Ω, 1, 10, 100kΩ, 1, 10MΩ
Range	4, 40, 400nF, 4, 40, 200uF
Accuracy	4nF: ±(5.0% rdg. + 50 dgt.) 40nF: ±(5.0% rdg. + 7 dgt.) 400nF/4, 40uF: ±(3% rdg. + 5 dgt.) 200uF: ±(5% rdg. + 5 dgt.)
Resolution	1, 10pF, 0.1, 1, 10nF, 0.1uF
Range	9.999, 99.99, 999.9Hz, 9.999, 99.99, 999.9KHz, 9.999MHz
Accuracy	9.999, 99.99Hz: ±(1.5% rdg. + 5 dgt.) 999.9Hz, 9.999, 99.99, 999.9KHz: ±(1.2% rdg. + 3 dgt.) 9.999MHz: ±(1.5% rdg. + 4 dgt.)
Resolution	0.001, 0.01, 0.1, 1, 10, 100Hz, 1kHz
Range	-4 to 1400°F (-20 to 760°C)
Accuracy	±(3.0% rdg. + 9°F) ±(3.0% rdg. + 5°C)
Resolution	1°F, 1°C
Range Selection	Autoranging/Manual
Display	4,000 count LCD display
Display Hold	Yes
Peak Hold	Yes
Relative Mode	Yes
Diode Test	Yes
Continuity Check	Audible signal if resistance ≤150Ω
Duty Cycle	Yes (0.1 - 99.9%)
Kick Stand	Yes
Auto Power Off	Yes (after 15 minutes)
Power Supply	9V Battery
Low Battery Indicator	Yes
Fuse Protection	Yes
Replaceable Test Leads	Yes
Overvoltage Category	CAT. III 600V
Product Certifications	CE
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Dimensions	5.9 x 2.8 x 1.9" (150 x 70 x 48mm)
Weight	9oz (255g)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Range	AC: 400mV, 4, 40, 400, 600V DC: 400mV, 4, 40, 400, 600V
Accuracy	AC: 400mV ±(15% rdg. + 15 dgt.) 4V ±(1.2% rdg. + 3 dgt.) 40, 400V ±(1.5% rdg. + 3 dgt.) 600V ±(2.0% rdg. + 4 dgt.) DC: 400mV ±(0.05% rdg. + 2 dgt.) 4, 40, 400V ±(1.2% rdg. + 2 dgt.) 600V ±(1.5% rdg. + 2 dgt.)
Resolution	AC: 0.1mV, 1, 10, 100V DC: 0.1mV, 1, 10, 100V
Range	400, 4000uA, 40, 400mA, 10A
Accuracy	AC: 400uA ±(1.5% rdg. + 5 dgt.) 4000uA/ 40, 400mA ±(1.8% rdg. + 5 dgt.) 10A ±(3.0% rdg. + 7 dgt.) DC: 400uA ±(1.0% rdg. + 3 dgt.) 4000uA/ 40, 400mA ±(1.5% rdg. + 3 dgt.) 10A ±(2.5% rdg. + 5 dgt.)
Resolution	0.1, 1uA, 10, 100mA, 1A
Range	400Ω, 4, 40, 400kΩ, 4, 40MΩ
Accuracy	400Ω: ±(1.2% rdg. + 4 dgt.) 4kΩ: ±(1.0% rdg. + 2 dgt.) 40, 400kΩ, 4MΩ: ±(1.2% rdg. + 2 dgt.) 40MΩ: ±(2.0% rdg. + 3 dgt.)
Resolution	0.01Ω, 1, 10, 100kΩ, 1, 10MΩ
Range	4, 40, 400nF, 4, 40, 200uF
Accuracy	4nF: ±(5.0% rdg. + 50 dgt.) 40nF: ±(5.0% rdg. + 7 dgt.) 400nF/4, 40uF: ±(3% rdg. + 5 dgt.) 200uF: ±(5% rdg. + 5 dgt.)
Resolution	1, 10pF, 0.1, 1, 10nF, 0.1uF
Range	9.999, 99.99, 999.9Hz, 9.999, 99.99, 999.9KHz, 9.999MHz
Accuracy	9.999, 99.99Hz: ±(1.5% rdg. + 5 dgt.) 999.9Hz, 9.999, 99.99, 999.9KHz: ±(1.2% rdg. + 3 dgt.) 9.999MHz: ±(1.5% rdg. + 4 dgt.)
Resolution	0.001, 0.01, 0.1, 1, 10, 100Hz, 1kHz
Range	-4 to 1400°F (-20 to 760°C)
Accuracy	±(3.0% rdg. + 9°F) ±(3.0% rdg. + 5°C)
Resolution	1°F, 1°C
Range Selection	Autoranging/Manual
Display	4,000 count LCD display
Display Hold	Yes
Peak Hold	Yes
Relative Mode	Yes
Diode Test	Yes
Continuity Check	Audible signal if resistance ≤150Ω
Duty Cycle	Yes (0.1 - 99.9%)
Kick Stand	Yes
Auto Power Off	Yes (after 15 minutes)
Power Supply	9V Battery
Low Battery Indicator	Yes
Fuse Protection	Yes
Replaceable Test Leads	Yes
Overvoltage Category	CAT. III 600V
Product Certifications	CE
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Dimensions	5.9 x 2.8 x 1.9" (150 x 70 x 48mm)
Weight	9oz (255g)
