REED Instruments R5003 AC Voltage/Current Data Logger

NIST Certificate: No
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

NIST Certificate:
NIST Certificate: No

REED Instruments, R5003, AC Voltage/Current Data Logger

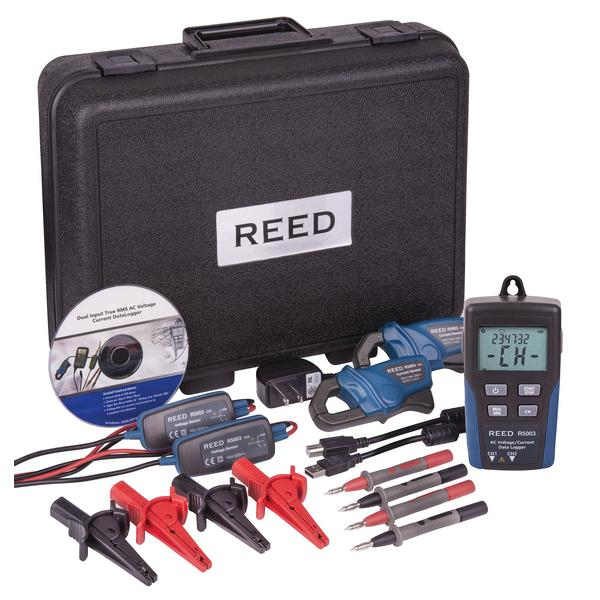

R5003 Includes Only:

  • AC Voltage/ Current Data Logger
  • AC Current Clamp Sensors (2)
  • Voltage Sensors (2)
  • Large Alligator Clips (4)
  • Basic Test Probes (4)
  • USB Cable
  • Software
  • AC Adapter
  • Batteries

Features

  • Datalog up to 256,000 AC voltage and current measurements
  • Dual input measures 2 voltage/current measurements or 1 of each
  • LCD simultaneously displays time/date, current readings and Max/Min readings
  • User adjustable sample rate from 1 sec to 24 hrs
  • High and low alarms
  • Download measurements via USB interface and analyze results with included software
  • Magnetic back allows instrument and sensors to be secured firmly in a variety of locations
  • Low battery indicator and auto shut off

Simultaneously measure 2 AC voltage inputs or 2 AC current inputs or 1 AC voltage and 1 AC current input. The R5003 can operate remotely with batteries or be plugged in with the included AC adapter. Stored measurements can be downloaded via USB interface and either analyzed with the included software or exported to Microsoft Excel.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
AC Voltage
Range10 to 600V
Accuracy±(2.0% rdg + 1V)
Resolution0.1V
AC Current
Range10 to 200A
Accuracy±(2.0% rdg + 1A)
Resolution0.1A
General Specifications
ChannelsDual channel, TRMS AC Voltage or Current
DisplayDual LCD
Min/MaxYes
Datalogging CapabilitiesYes
Real-Time Clock and Date StampYes
Selectable Sampling Rate1 sec to 24 hours
Max Datapoints256,000
Auto Shut-offYes (after 5 mins of inactivity)
Low Battery IndicatorYes
Clamp Jaw Opening0.5" (12.7mm)
Power Supply4 AAA Batteries or AC Adapter
Battery LifeSampling Time Dependent
PC ConnectivityUSB Cable
SoftwareYes (Included)
Software OS CompatibilityWindows 7/8/10/11
Overvoltage CategoryCAT. III 600V
Product CertificationsCE
Operating Temperature0 to 122°F (0 to 50°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Humidity Range10 to 75%
Dimensions4.5 x 2.5 x 1.3" (114 x 63 x 34 mm)
Weight8.7oz (248g)
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
AC Voltage
Range10 to 600V
Accuracy±(2.0% rdg + 1V)
Resolution0.1V
AC Current
Range10 to 200A
Accuracy±(2.0% rdg + 1A)
Resolution0.1A
General Specifications
ChannelsDual channel, TRMS AC Voltage or Current
DisplayDual LCD
Min/MaxYes
Datalogging CapabilitiesYes
Real-Time Clock and Date StampYes
Selectable Sampling Rate1 sec to 24 hours
Max Datapoints256,000
Auto Shut-offYes (after 5 mins of inactivity)
Low Battery IndicatorYes
Clamp Jaw Opening0.5" (12.7mm)
Power Supply4 AAA Batteries or AC Adapter
Battery LifeSampling Time Dependent
PC ConnectivityUSB Cable
SoftwareYes (Included)
Software OS CompatibilityWindows 7/8/10/11
Overvoltage CategoryCAT. III 600V
Product CertificationsCE
Operating Temperature0 to 122°F (0 to 50°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Humidity Range10 to 75%
Dimensions4.5 x 2.5 x 1.3" (114 x 63 x 34 mm)
Weight8.7oz (248g)
