Buy REED Instruments R2020, Infrared Video Thermometer/Data Logger

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

NIST Certificate:: NIST Certificate: No

This Video Infrared Thermometer combines the accuracy and convenience of a traditional infrared thermometer with the visual advantage of a digital camera. The R2020 is capable of measuring high temperatures up to 3992°F (2200°C) and includes a number of features including ambient temperature, humidity, dew point and wet bulb temperature measurements.

This instrument can also be mounted to a tripod and setup to continuously monitor an application while graphing live results on-screen.

Features

Dual lasers assist with target area identification
50:1 distance to spot size ratio
Take photos and record video with built-in camera
Datalogging capabilities include on-screen graphing with time and date stamp
Digitally adjustable emissivity
Type K thermocouple input for contact measurement
Ambient air temperature, humidity, dew point and wet bulb temperature measurement
Max, min, avg and differential readings
High and low alarms
Trigger lock feature for continuous monitoring
Export data to PC with included USB cable (no software required)

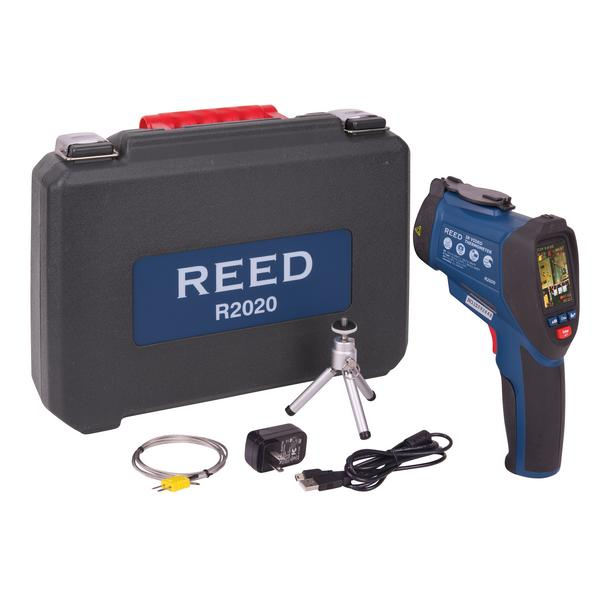

Included

Video Infrared Thermometer
Type K Thermocouple Probe
AC Adapter
USB Adapter
Mini-Tripod
Li-ion Rechargeable Battery
Hard Carrying Case

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Optional Accessories

Resources

Reviews

Range	-58 to 3992°F (50 to 2200°C)
Accuracy	-58 to 68°F (-50 to -20°C): ± 6.3°F(3.5°C) 68 to 932°F (20 to 500°C ): ±1% rdg. +1.8°F (1.0°C) 932 to 1832°F (500 to 1000°C): ±1.5% rdg. 1832 to 3992°F (1000 to 2200°C): ±2.0% rdg.
Resolution	0.1°F (0.1°C)
Range	-58 to 2498°F (-50 to 1370°C)
Accuracy	-58 to 32°F (-50 to 0°C): ±4. 5°F (2.5°C) 32 to 2498°F (0 to 1370°C): ±0.5% rdg. + 2.7°F (1.5°C)
Resolution	0.1°F (0.1°C)
Range	32 to 122°F (0 to 50°C)
Accuracy	50 to 104°F (10 to 40°C): ±0.9°F (0.5°C) >104°F (40°C): ±1.8°F (1.0°C)
Range	32 to 122°F (0 to 50°C)
Accuracy	<40°C: ±0.9°F (0.5°C) >40°C: ± 1.8°F (1.0°C)
Range	0 to 100% RH
Accuracy	0 to 20%: ±5% 20 to 40%: ±3.5% 40 to 60%: ±3% 60 to 80%: ±3.5% 80 to 100%: ±5%
Optical Resolution (D:S)	50:1
Dual Laser	Yes
Spectral Response	8 to 14um
Emissivity	0.1 to 1.0 (Adjustable)
Response Time	150ms
Display Size/Type	2.2" TFT Color LCD
Backlit Display	Yes
Display Hold	Yes
High/Low Alarms	Yes (Audible (beep) and visual (on-screen))
Max/Min	Yes
Average and Differential	Yes
Datalogging Capabilities	Yes
F/C Switchable	Yes
Trigger Lock	Yes
Autoshut off	Yes (adjustable 3,15,60mins)
Internal Memory	Yes (72mb), Expandable with micro SD card
Thermocouple Input	Yes
Tripod Mountable	Yes
Laser Class	Class II
Low Battery Indicator	Yes
Power Supply	Li-Ion rechargeable battery
Battery Life	Approx. 4 hours continuous use
Battery Charge Time	Approx. 2 hours
Product Certifications	CE, RoHS
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Operating Humidity Range	10-90%
Dimensions	8.1 x 2.4 x 6.1" (205 x 62 x 155mm)
Weight	14.5 oz (410g)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Range	-58 to 3992°F (50 to 2200°C)
Accuracy	-58 to 68°F (-50 to -20°C): ± 6.3°F(3.5°C) 68 to 932°F (20 to 500°C ): ±1% rdg. +1.8°F (1.0°C) 932 to 1832°F (500 to 1000°C): ±1.5% rdg. 1832 to 3992°F (1000 to 2200°C): ±2.0% rdg.
Resolution	0.1°F (0.1°C)
Range	-58 to 2498°F (-50 to 1370°C)
Accuracy	-58 to 32°F (-50 to 0°C): ±4. 5°F (2.5°C) 32 to 2498°F (0 to 1370°C): ±0.5% rdg. + 2.7°F (1.5°C)
Resolution	0.1°F (0.1°C)
Range	32 to 122°F (0 to 50°C)
Accuracy	50 to 104°F (10 to 40°C): ±0.9°F (0.5°C) >104°F (40°C): ±1.8°F (1.0°C)
Range	32 to 122°F (0 to 50°C)
Accuracy	<40°C: ±0.9°F (0.5°C) >40°C: ± 1.8°F (1.0°C)
Range	0 to 100% RH
Accuracy	0 to 20%: ±5% 20 to 40%: ±3.5% 40 to 60%: ±3% 60 to 80%: ±3.5% 80 to 100%: ±5%
Optical Resolution (D:S)	50:1
Dual Laser	Yes
Spectral Response	8 to 14um
Emissivity	0.1 to 1.0 (Adjustable)
Response Time	150ms
Display Size/Type	2.2" TFT Color LCD
Backlit Display	Yes
Display Hold	Yes
High/Low Alarms	Yes (Audible (beep) and visual (on-screen))
Max/Min	Yes
Average and Differential	Yes
Datalogging Capabilities	Yes
F/C Switchable	Yes
Trigger Lock	Yes
Autoshut off	Yes (adjustable 3,15,60mins)
Internal Memory	Yes (72mb), Expandable with micro SD card
Thermocouple Input	Yes
Tripod Mountable	Yes
Laser Class	Class II
Low Battery Indicator	Yes
Power Supply	Li-Ion rechargeable battery
Battery Life	Approx. 4 hours continuous use
Battery Charge Time	Approx. 2 hours
Product Certifications	CE, RoHS
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Operating Humidity Range	10-90%
Dimensions	8.1 x 2.4 x 6.1" (205 x 62 x 155mm)
Weight	14.5 oz (410g)
