REED Instruments K4020-230V-NIST Plastic Lens Stroboscope, 230VAC

NIST Certificate: Yes, Power Supply: 230VAC
Availability
Discontinued
Share:

Replacement

This product is discontinued, no longer available. Replacement part numbers:

Options and Related Products

NIST Certificate:
NIST Certificate: Yes
Power Supply:
Power Supply: 230VAC

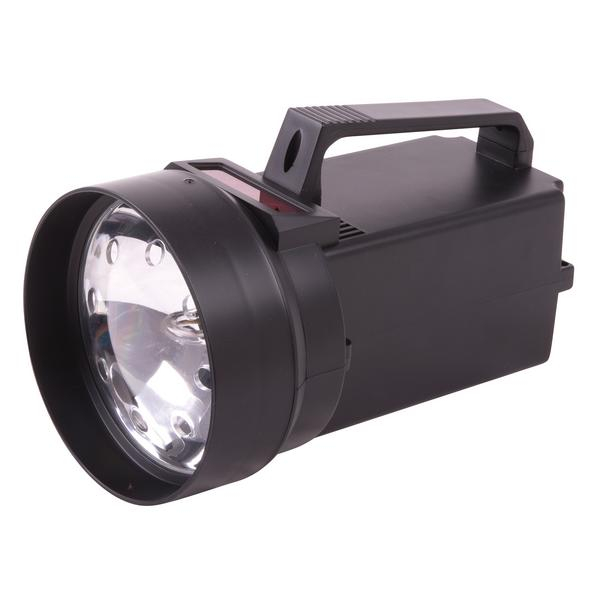

REED Instruments, K4020-230V-NIST, Plastic Lens Stroboscope with NIST Certificate, 230VAC

This digital stroboscope freezes the motion and measures the speed of a rotating object, without contact. The K4020 features flash rate speeds from 100 to 10,000 RPM, a xenon light bulb and bright LED display.

Features

  • Simply aim the instrument at the rotational object and synchronize the strobe's flash rate (FPM) with object speed (RPM)
  • Basic accuracy of ±0.05%
  • 4-digit LED display
  • 5 to 30 minute duty cycle (RPM dependent)
  • Tripod mount for stationary use
  • 6 foot power cord

Included

  • Digital Stroboscope
  • Light Bulb
  • Power Cord
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Flash Range100 to 10,000 RPM
Resolution1 RPM
Basic Accuracy±(0.05% + 1 dgt.)
TypeXenon lamp
Flash DurationApprox. 60 to 1000 us
Flash ColorXenon white 6,500°K
Flash Energy4 Watt-seconds (joules)
Beam Angle80 degrees
Response Time<1 sec
Sampling Time1x/sec
Display Size/Type4 Digit LED Display
Tripod MountYes
Power Supply230VAC, 50/60 Hz
Product CertificationsCE
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Humidity10-80%
Dimensions8.3 x 4.8 x 4.8" (201 x 120 x 120 mm)
Weight2.2lbs (1kg)
Product Details
Flash Range100 to 10,000 RPM
Resolution1 RPM
Basic Accuracy±(0.05% + 1 dgt.)
TypeXenon lamp
Flash DurationApprox. 60 to 1000 us
Flash ColorXenon white 6,500°K
Flash Energy4 Watt-seconds (joules)
Beam Angle80 degrees
Response Time<1 sec
Sampling Time1x/sec
Display Size/Type4 Digit LED Display
Tripod MountYes
Power Supply230VAC, 50/60 Hz
Product CertificationsCE
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Humidity10-80%
Dimensions8.3 x 4.8 x 4.8" (201 x 120 x 120 mm)
Weight2.2lbs (1kg)
