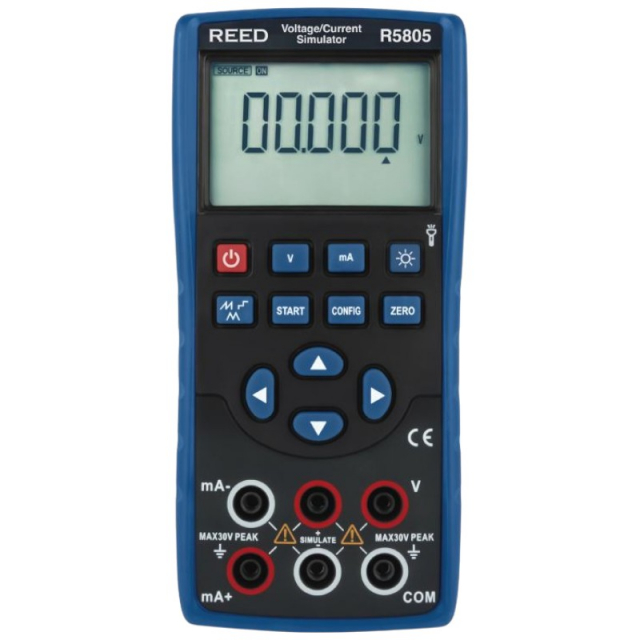

REED Instruments R5805-NIST Voltage/Current Simulator

NIST Certificate: Yes
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

NIST Certificate:
NIST Certificate: Yes

REED Instruments, R5805-NIST, Voltage/Current Simulator, NIST Certificate

R5805-NIST Includes Only:

  • Voltage/Current Simulator
  • Test Leads
  • Alligator Clips
  • Batteries
  • NIST Certificate

Features:

  • Source voltage and current
  • Easy to read 6-digit LCD
  • Built-in LED flashlight
  • Automatic calibration
  • Low battery indicator and auto shut off

Applications:

  • Testing and calibrating meters, data loggers, and process controllers
  • Simulating sensor outputs for troubleshooting and diagnostics
  • Configuring and verifying industrial control systems
  • Providing precise voltage/current signals for automation testing
  • Validating the performance of power supplies and electrical circuits
  • Ensuring accuracy in instrumentation used in HVAC, energy, and utilities
  • Conducting educational and training demonstrations in electronics and electrical engineering

The R5805 Voltage/Current Simulator has been designed to accurately source both voltage and current for a wide range of testing and calibration needs. Featuring a clear 6-digit LCD and a convenient kickstand, it ensures easy readability and hands-free operation in various environments.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
DC Voltage
Range10V
Output Range-1.000 to 11.000V
Resolution0.001V
Accuracy±0.05% rdg. +2mV
DC Current
Range30mA
Output Range0.000 to 30.000mA
Resolution0.001mA
Accuracy±0.05% rdg. +4μA
General Specifications
Display6-Digit LCD
Backlit DisplayYes
Kick StandYes
Magnetic Hanger CompatibleYes (R5900 sold separately)
Built-In FlashlightYes
Zero Adjustment ButtonYes
Power Supply3 AA Batteries
Battery LifeApprox. 20 hours
Cold Junction CompensationYes
Auto shut offYes (up to 60 minutes/off)
Low Battery IndicatorYes
Replaceable Test LeadsYes
Product CertificationsCE
Operating Temperature32 to 122°F (0 to 50°C)
Operating Humidity Range0 to 85%
Storage Temperature14 to 122°F (-10 to 50°C)
Dimensions7.5 x 3.5 x 2.1" (191 x 90 x 53mm)
Weight17.6oz (500g)
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
DC Voltage
Range10V
Output Range-1.000 to 11.000V
Resolution0.001V
Accuracy±0.05% rdg. +2mV
DC Current
Range30mA
Output Range0.000 to 30.000mA
Resolution0.001mA
Accuracy±0.05% rdg. +4μA
General Specifications
Display6-Digit LCD
Backlit DisplayYes
Kick StandYes
Magnetic Hanger CompatibleYes (R5900 sold separately)
Built-In FlashlightYes
Zero Adjustment ButtonYes
Power Supply3 AA Batteries
Battery LifeApprox. 20 hours
Cold Junction CompensationYes
Auto shut offYes (up to 60 minutes/off)
Low Battery IndicatorYes
Replaceable Test LeadsYes
Product CertificationsCE
Operating Temperature32 to 122°F (0 to 50°C)
Operating Humidity Range0 to 85%
Storage Temperature14 to 122°F (-10 to 50°C)
Dimensions7.5 x 3.5 x 2.1" (191 x 90 x 53mm)
Weight17.6oz (500g)
