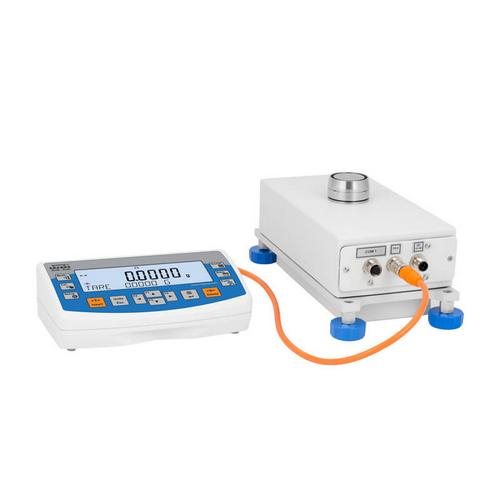

Radwag, MAS.1.51.R, Weighing Module with LCD Display, Maximum Capacity 51 g

MAS.1 high resolution electromagnetic module is intended to be incorporated into customer's weighing systems. Operation of the MAS.1 high resolution electromagnetic module is based on electromagnetic digital converter. Compact design and integrated electronics provide various possibilities of MAS.1 module adaptation into technological lines and installation inside customers devices. Due to the high measuring accuracy, it is recommended to install the module inside customer's instrument (e.g. in a draft shield) in order to reduce the influence of ambient conditions on the measurement result. The power supply for MAS.1 module is standard equipment.

Features:

Design of the electromagnetic mechanism with aluminium housing
Measurement accuracy of 0.01 mg
Overload protection
Ease of adaptation to the required storage space
Internal adjustment

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Maximum capacity [Max]	51 g
Minimum load	1 mg
Readability [d]	0.01 mg
Tare range	-51 g
Repeatability (5% Max)	0.012 mg
Repeatability (Max)	0.025 mg
Linearity	± 0.06 mg
Minimum weight (USP)	24 mg
Minimum weight (U=1%,k=2)	2.4 mg
Stabilization time	6 s
Sensitivity drift	1 ppm/°C in temperature +15 - +35 °C
Weighing pan dimension	33 mm
Power supply	12 - 16 VDC
Display	LCD (backlit)
Communication interface	1 x RS232
Protection class	IP 54
Atmospheric humidity	40% - 80%
Device dimensions	289 x 143 x 125 mm
Net weight	4.7 kg
Operating temperature	+10 - +40°C

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Maximum capacity [Max]	51 g
Minimum load	1 mg
Readability [d]	0.01 mg
Tare range	-51 g
Repeatability (5% Max)	0.012 mg
Repeatability (Max)	0.025 mg
Linearity	± 0.06 mg
Minimum weight (USP)	24 mg
Minimum weight (U=1%,k=2)	2.4 mg
Stabilization time	6 s
Sensitivity drift	1 ppm/°C in temperature +15 - +35 °C
Weighing pan dimension	33 mm
Power supply	12 - 16 VDC
Display	LCD (backlit)
Communication interface	1 x RS232
Protection class	IP 54
Atmospheric humidity	40% - 80%
Device dimensions	289 x 143 x 125 mm
Net weight	4.7 kg
Operating temperature	+10 - +40°C
