Buy Precision Medical 507400, Mobile Blender System with Oxygen Monitor

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

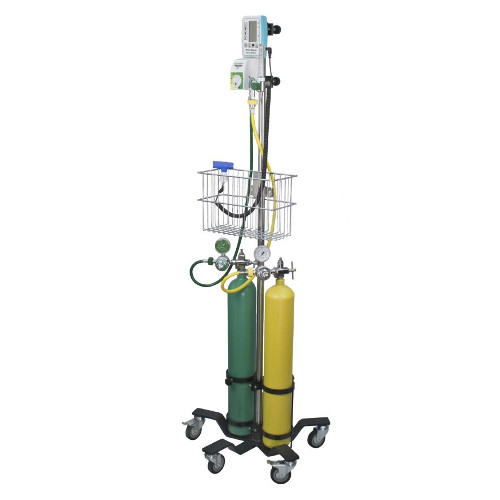

Precision Medical, 507400, Mobile Blender System with Oxygen Monitor PM5900 and Low Flow Blender PM5300

Includes:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Blender	PM 5300
No. of Auxiliary Outlet Ports	1
No. of Primary Outlet Ports	1
Maximum Combined Flow (all outlets)	≥30 l/min
Bleed Flow	at 50 psi (3.4 bar) 3 l/min or less
Auxiliary Outlet Flow Range	0-30 l/min
Primary Outlet Flow Range	3-30 l/min
Bypass Alarm Activation	18-22 psi (1.2-1.5 bar)
FiO2 Accuracy	±3% of full scale
Operating Temperature	59°F to 104°F (15°C to 40°C)
Depth	4.92" (12.5 cm)
Width	2.25" (5.7 cm)
Height	4.10" (10.4 cm)
Weight	2.29 lbs (1.34 kg)

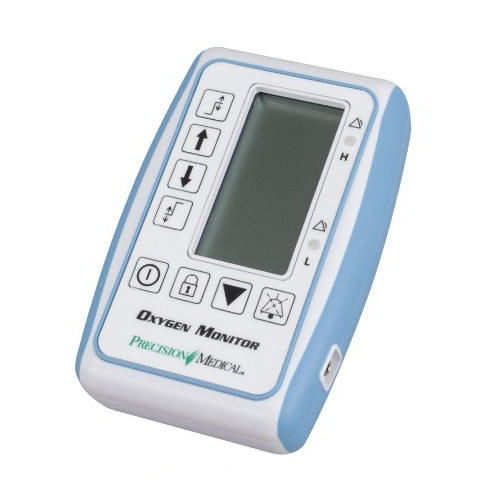

Oxygen Monitor	PM5900
Sensor Type	Galvanic Oxygen Sensor (fuel cell)
High Alarm De-Activation Setting	Above 100% ("---" will appear )
High Alarm Range	PM5900 19% - 100% Oxygen
Low Alarm Range	PM5900 18% - 99% Oxygen
Low Battery Indication	"LO BATTERY" message displayed and audible alarm
Response Time	90% of final value in less than 12 seconds at 77°F (25°C)
Total Accuracy	± 3% actual oxygen level over full operating temperature range
Accuracy & Linearity	± 1% of full scale at constant temperature, relative humidity and pressure when calibrated at full scale
Measurement Range	0.0 - 100% Oxygen
Diverter Fitting	15 mm "T" adapter
Battery Life	Approximately 2,000 hours continuous use nonalarm condition
Power Requirements	4 AA Alkaline Batteries (4 x 1.5=6 Volts)
Operating Conditions Altitude	Sea Level to 8,000 ft/2438 m
Operating Conditions Temperature	50°F to 113°F (10°C to 45°C)
Weight	Oxygen Monitor, Sensor, Batteries and Cable weight included: 1.11 lbs (0.50 kg)
Cable Length	(fully extended) 10 ft (3.05 m)
Height	5.44 in (13.82 cm)
Width	3.50 in (9.04 cm)
Length	1.72 in (4.36 cm)

Blender	PM 5300
No. of Auxiliary Outlet Ports	1
No. of Primary Outlet Ports	1
Maximum Combined Flow (all outlets)	≥30 l/min
Bleed Flow	at 50 psi (3.4 bar) 3 l/min or less
Auxiliary Outlet Flow Range	0-30 l/min
Primary Outlet Flow Range	3-30 l/min
Bypass Alarm Activation	18-22 psi (1.2-1.5 bar)
FiO2 Accuracy	±3% of full scale
Operating Temperature	59°F to 104°F (15°C to 40°C)
Depth	4.92" (12.5 cm)
Width	2.25" (5.7 cm)
Height	4.10" (10.4 cm)
Weight	2.29 lbs (1.34 kg)

Oxygen Monitor	PM5900
Sensor Type	Galvanic Oxygen Sensor (fuel cell)
High Alarm De-Activation Setting	Above 100% ("---" will appear )
High Alarm Range	PM5900 19% - 100% Oxygen
Low Alarm Range	PM5900 18% - 99% Oxygen
Low Battery Indication	"LO BATTERY" message displayed and audible alarm
Response Time	90% of final value in less than 12 seconds at 77°F (25°C)
Total Accuracy	± 3% actual oxygen level over full operating temperature range
Accuracy & Linearity	± 1% of full scale at constant temperature, relative humidity and pressure when calibrated at full scale
Measurement Range	0.0 - 100% Oxygen
Diverter Fitting	15 mm "T" adapter
Battery Life	Approximately 2,000 hours continuous use nonalarm condition
Power Requirements	4 AA Alkaline Batteries (4 x 1.5=6 Volts)
Operating Conditions Altitude	Sea Level to 8,000 ft/2438 m
Operating Conditions Temperature	50°F to 113°F (10°C to 45°C)
Weight	Oxygen Monitor, Sensor, Batteries and Cable weight included: 1.11 lbs (0.50 kg)
Cable Length	(fully extended) 10 ft (3.05 m)
Height	5.44 in (13.82 cm)
Width	3.50 in (9.04 cm)
Length	1.72 in (4.36 cm)

Note: Please read description carefully. Do not base your order on the picture presented.
