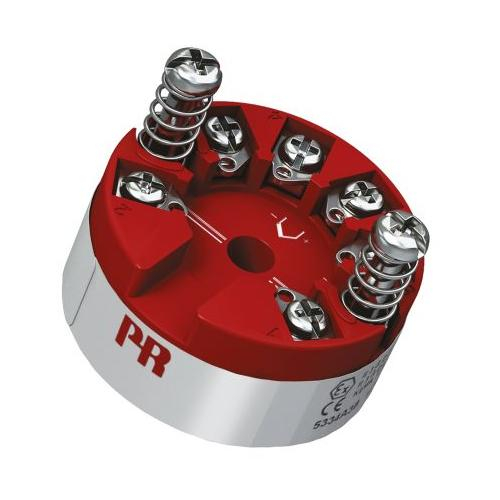

5334A3B, 2-Wire Programmable Transmitter 7.2-35 V DC

Features:

TC input
High measurement accuracy
Galvanic isolation
Programmable sensor error value
For DIN form B sensor head mounting

Application

Linearized temperature measurement with TC sensor.
Amplification of bipolar mV signals to a 4...20 mA signal, optionally linearized according to a defined linearization function.

Technical characteristics

Within a few seconds the user can program PR5334A to measure temperatures within all TC ranges defined by the norms.
Cold junction compensation (CJC) with a built-in temperature sensor.
Continuous check of vital stored data for safety reasons.

Mounting / installation

For DIN form B sensor head or DIN rail mounting with the PR fitting type 8421.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Operating temperature	-40°C to +85°C
Calibration temperature	20...28°C
Relative humidity	< 95% RH (non-cond.)
Protection degree (encl./terminal)	IP68 / IP00
Dimensions	Ø 44 x 20.2 mm
Weight approx.	50 g
Wire size	1 x 1.5 mm²stranded wire
Screw terminal torque	0.4 Nm
Vibration	IEC 60068-2-6
2...25 Hz	±1.6 mm
25...100 Hz	±4 g
Supply voltage	7.2...35 VDC
Internal power dissipation	25 mW…0.8 W
Isolation voltage, test / working	1.5 kVAC / 50 VAC
Response time (programmable)	1...60 s
Voltage drop	7.2 VDC
Warm-up time	5 min.
Programming	Loop Link
Signal / noise ratio	Min. 60 dB
EEprom error check	< 3.5 s
Accuracy	Better than 0.05% of selected range
Signal dynamics, input	18 bit
Signal dynamics, output	16 bit
Effect of supply voltage change	< 0.005% of span / VDC
EMC immunity influence	< ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst	< ±1% of span
Max. offset	50% of selected max. value
Thermocouple type	B, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC)	< ±1.0°C
Sensor error detection	Yes
Sensor error current: When detecting / else	Nom. 33 μA / 0 μA
Measurement range	-12...150 mV
Min. measurement range (span)	5 mV
Input resistance	10 MΩ
Signal range	4…20 mA
Min. signal range	16 mA
Load (at current output)	≤ (Vsupply - 7.2) / 0.023 [Ω]
Load stability	≤ 0.01% of span / 100 Ω
Sensor error indication	Programmable 3.5…23 mA
NAMUR NE43 Upscale/Downscale	23 mA / 3.5 mA
Updating time	440 ms
of span	= of the presently selected range
EMC	2014/30/EU
EAC	TR-CU 020/2011
ATEX 2014/34/EU	KEMA 10ATEX0002 X
IECEx	DEK 13.0035X
INMETRO	DEKRA 13.0001 X
CCOE	P337392/1
