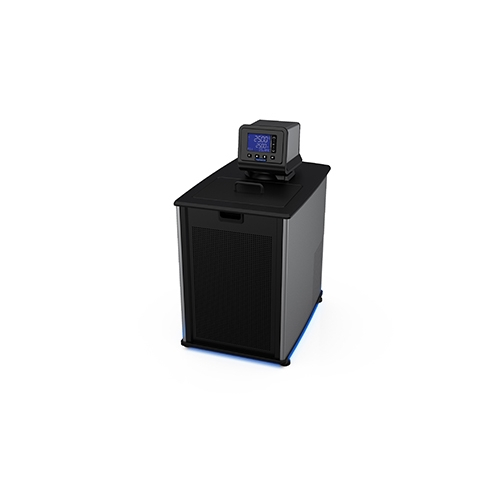

PolyScience AD15R-40-A11B 3.96Gal Refrigerated Circulator

Voltage: 120V / 60 Hz, Reservoir Capacity, Gallons: 3.96, Controller Type: Advanced Digital
  • Brand PolyScience
  • Part # AD15R-40-A11B
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

Options and Related Products

Voltage:
Voltage: 120V / 60 Hz
Reservoir Capacity, Gallons:
Reservoir Capacity, Gallons: 3.96
Controller Type:
Controller Type: Advanced Digital

PolyScience, AD15R-40-A11B, 3.96Gal -40C Deg Digital Controller Refrigerated Circulating Bath, 120V / 60 Hz

Includes:

  • Reservoir Cover
  • PolyTemp Viewer, USB driver Software
  • Nylon hose adapters for 3/8", 1/4", and 3/16"

Features:

  • Intuitive 3.75” (9.5 cm) display with touch-pad control
  • 4 languages: French, German, Spanish, English
  • Swivel 180™ Rotating Controller
  • On-board connectivity: USB-A & B, Ethernet, RS-232/RS-485, and external temperature probe
  • On-screen prompts
  • Automatic performance optimization and specific heat tuning
  • Single-point calibration capability
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Supplies
Reviews
Working Temperature Range °F-40° to 392°
Working Temperature Range °C-40° to 200°
Nominal Cooling Capacity @ +20C (W)1000
Reservoir Capacity (gallons)3.96
Reservoir Capacity (liters)15
Reservoir/Tank MaterialStainless Steel
Reservoir CoverIncluded
DuraTopYes
LidDockYes
Cleanable Air FilterYes
Working Access (L x W x D) (inches)8.35 x 10.88 x 5.5 in
Working Access (L x W x D) (cm)21.2 x 27.6 x 14 cm
Temperature Stability °F±0.02°
Temperature Stability °C±0.01°
Display3.75" Touch-Pad LCD
Display Resolution (Set)0.01
Display Resolution (Read)0.01
Pump TypePressure/Suction
Pump SpeedVariable
Process Connections1/4" (F) NPT
External Temperature Control CapabilityYes
Flammability Class (DIN 12876-1)III (FL)
Over-Temperature Protection / Failsafe Heater ControlYes
Low Liquid Level ProtectionYes
WhisperCool Environmental Control TechnologyYes
Cool Command Refrigeration TechnologyYes
Reservoir DrainYes
Included SoftwarePolyTemp Viewer, USB driver
Maximum Ambient Temperature °F95°
Maximum Ambient Temperature °C35°
Overall Dimensions (L x W x H) (inches)22.4 x 14.5 x 26.9 in
Overall Dimensions (L x W x H) (cm)56.9 x 36.8 x 68.3 cm
RefrigerantR404A
Environmental ComplianceRoHS, WEEE
Shipping Weight (pounds)118.0
Shipping Weight (kilograms)53.5
Maximum Pressure (psi)4.3
Maximum Pressure (bar)0.30
Maximum Pressure Flow Rate (gpm)5.30
Maximum Pressure Flow Rate (l/min)20.1
Maximum Suction Flow Rate (gpm)3.9
Maximum Suction Flow Rate (l/min)14.7
Cooling Capacity @ -20°C (W)265
Cooling Capacity @ 0°C (W)650
Cooling Capacity @ +20°C (W)1000
Cooling Capacity @ +100°C (W)1000
Heater Wattage1100
Electrical Requirements (VAC/Hz/Ph/A)120/60/1/13
Regulatory ApprovalsETL
Product Details
Working Temperature Range °F-40° to 392°
Working Temperature Range °C-40° to 200°
Nominal Cooling Capacity @ +20C (W)1000
Reservoir Capacity (gallons)3.96
Reservoir Capacity (liters)15
Reservoir/Tank MaterialStainless Steel
Reservoir CoverIncluded
DuraTopYes
LidDockYes
Cleanable Air FilterYes
Working Access (L x W x D) (inches)8.35 x 10.88 x 5.5 in
Working Access (L x W x D) (cm)21.2 x 27.6 x 14 cm
Temperature Stability °F±0.02°
Temperature Stability °C±0.01°
Display3.75" Touch-Pad LCD
Display Resolution (Set)0.01
Display Resolution (Read)0.01
Pump TypePressure/Suction
Pump SpeedVariable
Process Connections1/4" (F) NPT
External Temperature Control CapabilityYes
Flammability Class (DIN 12876-1)III (FL)
Over-Temperature Protection / Failsafe Heater ControlYes
Low Liquid Level ProtectionYes
WhisperCool Environmental Control TechnologyYes
Cool Command Refrigeration TechnologyYes
Reservoir DrainYes
Included SoftwarePolyTemp Viewer, USB driver
Maximum Ambient Temperature °F95°
Maximum Ambient Temperature °C35°
Overall Dimensions (L x W x H) (inches)22.4 x 14.5 x 26.9 in
Overall Dimensions (L x W x H) (cm)56.9 x 36.8 x 68.3 cm
RefrigerantR404A
Environmental ComplianceRoHS, WEEE
Shipping Weight (pounds)118.0
Shipping Weight (kilograms)53.5
Maximum Pressure (psi)4.3
Maximum Pressure (bar)0.30
Maximum Pressure Flow Rate (gpm)5.30
Maximum Pressure Flow Rate (l/min)20.1
Maximum Suction Flow Rate (gpm)3.9
Maximum Suction Flow Rate (l/min)14.7
Cooling Capacity @ -20°C (W)265
Cooling Capacity @ 0°C (W)650
Cooling Capacity @ +20°C (W)1000
Cooling Capacity @ +100°C (W)1000
Heater Wattage1100
Electrical Requirements (VAC/Hz/Ph/A)120/60/1/13
Regulatory ApprovalsETL
