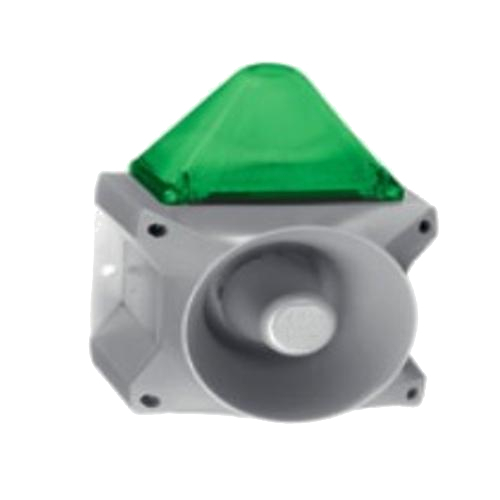

Pfannenberg, 233 7280 6055, PA X 20-15 Flashing Sounder with Grey Housing and Green Lens, 18 to 30 VDC

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Operating range	18-30 V
Nominal current consumption	850-1650 mA
Sound pressure level	115 dB(A)
Sound level reduction	max. -12 dB via potentiometer
Alarm tones	80 / 4 tones are externally selectable
Flash energy and flash rate	15 Joule
Operating temperature	-40 °C / +55 °C
Storage temperature	-40 °C / +70 °C
Relative humidity	90 %
Protection system (EN 60529)	IP 66
Protection class	II
Cable entry	4x M20 knock-outs prepared (on side), 1 knock-out on back
Integrated seal with cable entry	6-13 mm (feed-through grommet)

Operating range	18-30 V
Nominal current consumption	850-1650 mA
Sound pressure level	115 dB(A)
Sound level reduction	max. -12 dB via potentiometer
Alarm tones	80 / 4 tones are externally selectable
Flash energy and flash rate	15 Joule
Operating temperature	-40 °C / +55 °C
Storage temperature	-40 °C / +70 °C
Relative humidity	90 %
Protection system (EN 60529)	IP 66
Protection class	II
Cable entry	4x M20 knock-outs prepared (on side), 1 knock-out on back
Integrated seal with cable entry	6-13 mm (feed-through grommet)

Note: Please read description carefully. Do not base your order on the picture presented.
