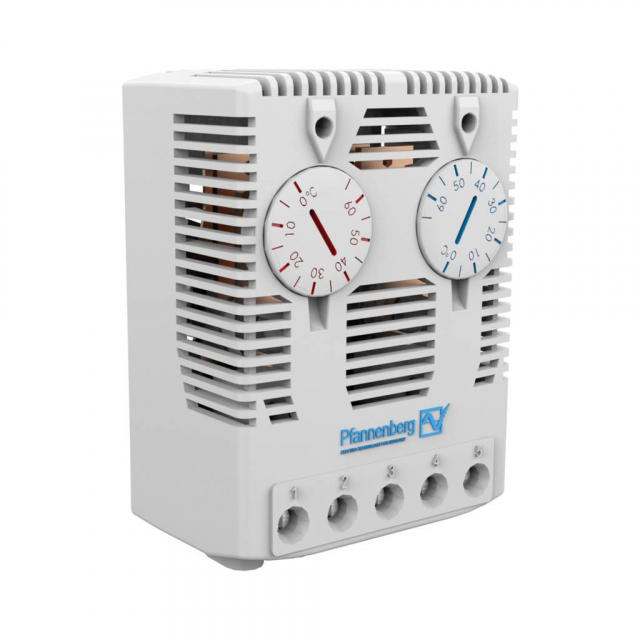

Buy Pfannenberg 17141000000, FLZ 541 Twin Thermostat

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Unlike thermostats with changeover contacts, connected devices can be switched in different temperature ranges.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

There is a $350.00 minimum order required when purchasing "Pfannenberg" products

This item is available for purchasing throughout request. Please use the "Add to Quote" button.

Technical Details

Type of contact	N.C./N.O. with spring contact
Switching temperature difference	< 7 K
Switching point tolerance	±4 K
Max. switching power value in brackets: inductive load at cos φ = 0.6	N.C. - 240 V AC / 10 (2) A N.O. - 120 V AC / 15 (2) A DC - max. 30 A
Operating temperature	-40 to +80 °C
Suitable for the operation of	Fan and Heater
Probe type	Bimetal
Type of mounting	Snap fastening for 35 mm profile bars according to EN 60715
Type of connection	Screw terminal for cable cross-section 0.5 to 2.5 mm
Colour	RAL 7035
Weight	95 g.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Type of contact	N.C./N.O. with spring contact
Switching temperature difference	< 7 K
Switching point tolerance	±4 K
Max. switching power value in brackets: inductive load at cos φ = 0.6	N.C. - 240 V AC / 10 (2) A N.O. - 120 V AC / 15 (2) A DC - max. 30 A
Operating temperature	-40 to +80 °C
Suitable for the operation of	Fan and Heater
Probe type	Bimetal
Type of mounting	Snap fastening for 35 mm profile bars according to EN 60715
Type of connection	Screw terminal for cable cross-section 0.5 to 2.5 mm
Colour	RAL 7035
Weight	95 g.
